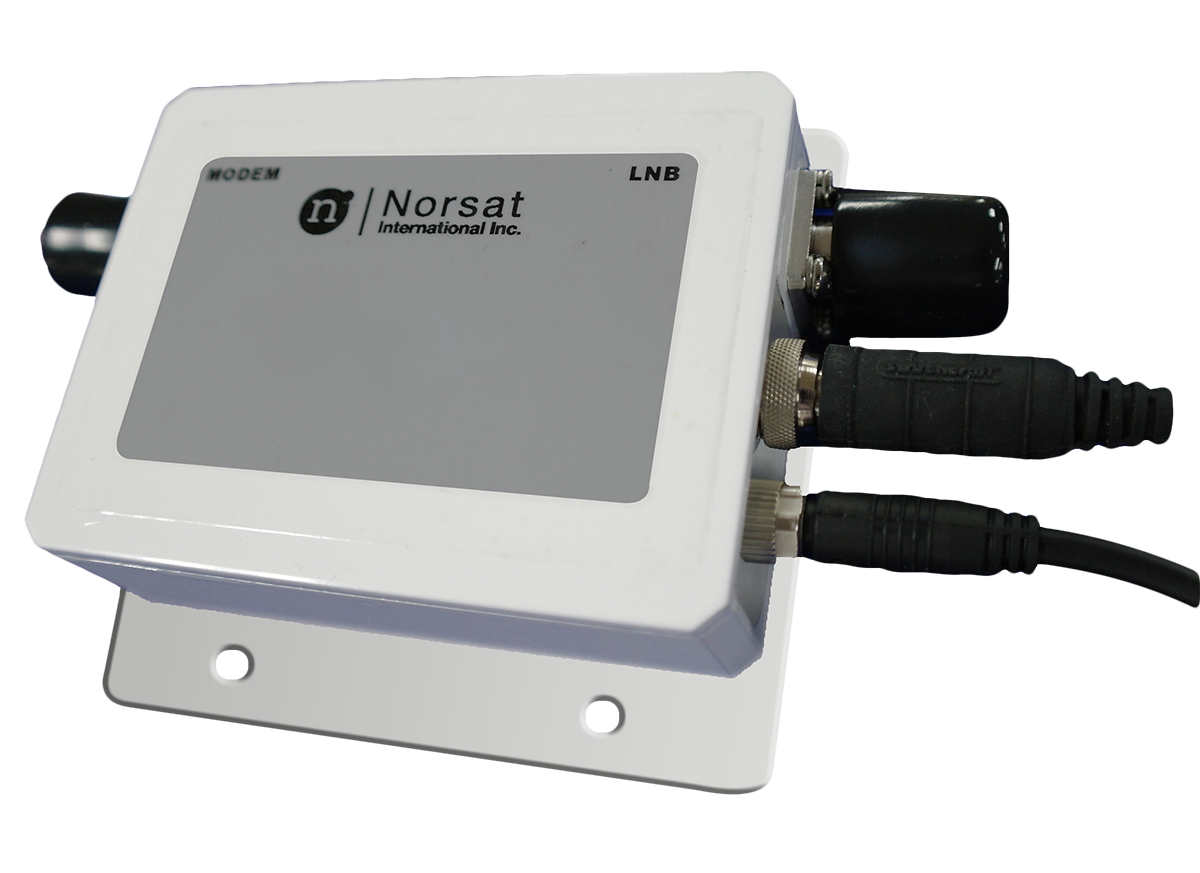

ACC-101115
10MHz Injector
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Or download now:
Something went wrong. Please try again.
Open here
| KEY SPECIFICATIONS | |
|---|---|
| reference signal | 10MHz, 2 dBm min |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | < 600 mA/24 V |
| power requirements | +23 to +25 V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | 50 Ohm N Connector |
| RF output connector | 50 Ohm N Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 0.03 m |
| product length | 0.13 m |
| product weight | 0.66 kg |
| product width | 0.095 m |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | 8517690000 |
| Country of Origin | Made in Canada |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | 0.25 kg |
| Aluminum Country of Smelt and Cast | CN |
| Total Aluminium Value | 0.625 |
