ACC-101117
Ku-Band Directional Coupler
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| frequency | 9.84 - 15.00 GHz |
| waveguide flange | WR-75 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| coupling | 20 dB typ. |
| coupling flatness | ± 0.7 dB |
| directivity | 35 dB min. |
| insertion loss | 0.2 dB max. |
| VSWR | Main Line: 1.1 : 1 Secondary Line: 1.25 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power handling | CW: 250 W Peak: 50 kW |
| INTERFACE SPECIFICATIONS | |
|---|---|
| coupling connector | N-Connector |
| RF input Flange | UG Cover |
| RF output Flange | UG Cover |

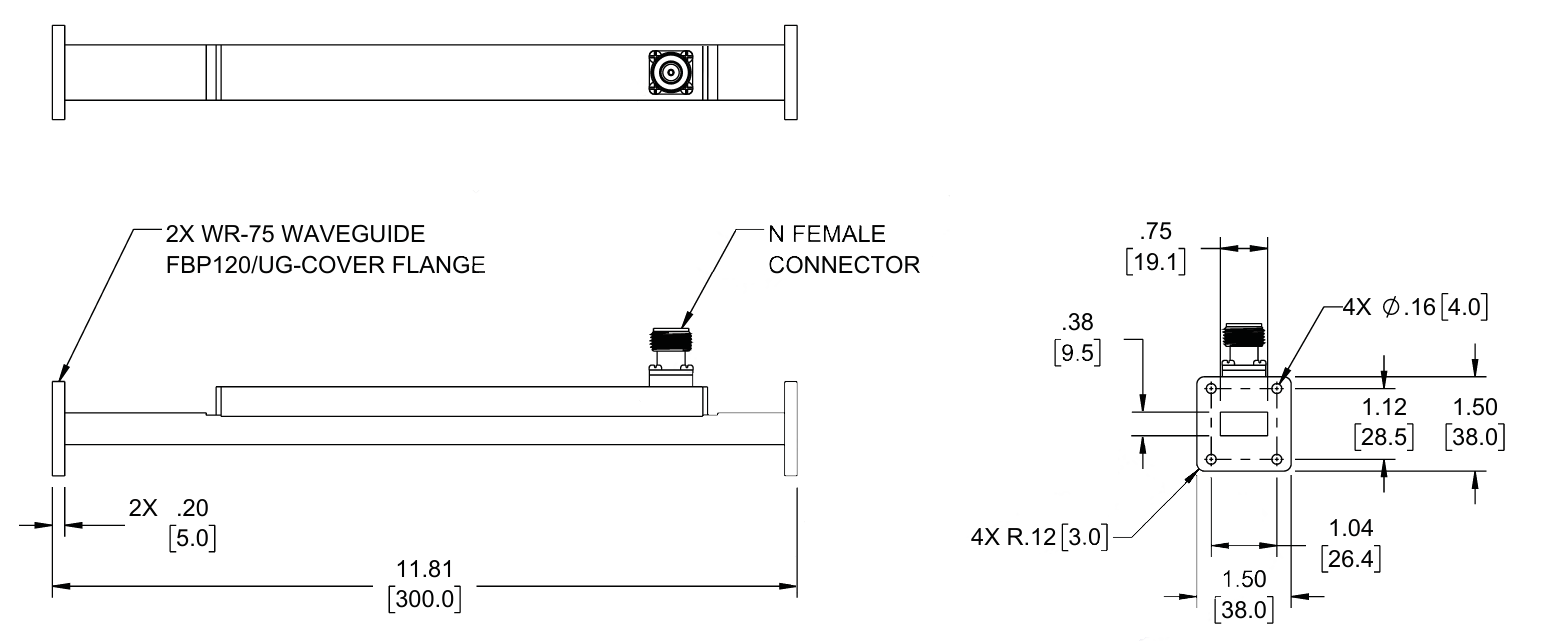

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 0.0381 m |
| product length | 0.29997 m |
| product weight | 0.44452 kg |
| product width | 0.0381 m |
