ADPT-100003

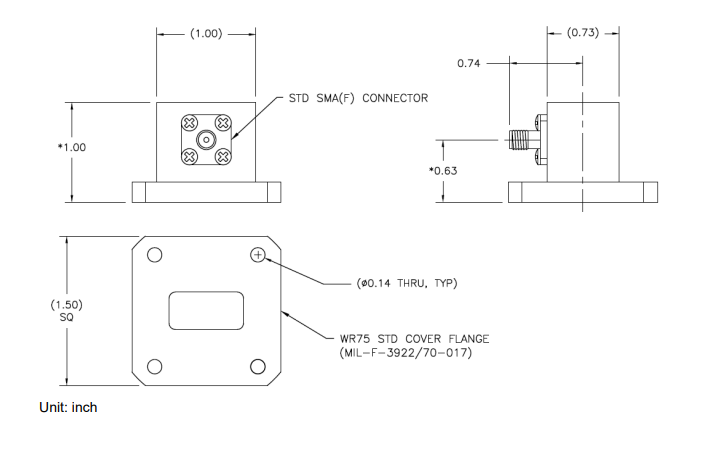

Ku-Band Waveguide Adapter WR75 to SMA (Right Angle)
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Or download now:
Something went wrong. Please try again.
Open here
| RF SPECIFICATIONS | |
|---|---|
| Frequency | 10-15.0 GHz |
| Insertion loss | 0.25 : 1 max |
| Peak Power | 3 kW |
| VSWR | 1.25 : 1 max |
| Waveguide | WR-75 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| CW Power | 50 W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connector type | SMA Connector (Female) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Operating Temperature | -55 to + 125˚C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Material | Aluminium |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | - |
| Country of Origin | - |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | - |
| Warranty | - |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | - |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
