ANCHOR 3.7m Ka-Band Earth Station Antenna
ANCHOR 3.7m Ka-Band Earth Station Antenna
ANCHOR 3.7m Ka-Band Earth Station Antenna
ANCHOR 3.7m Ka-Band Earth Station Antenna

WX-100302

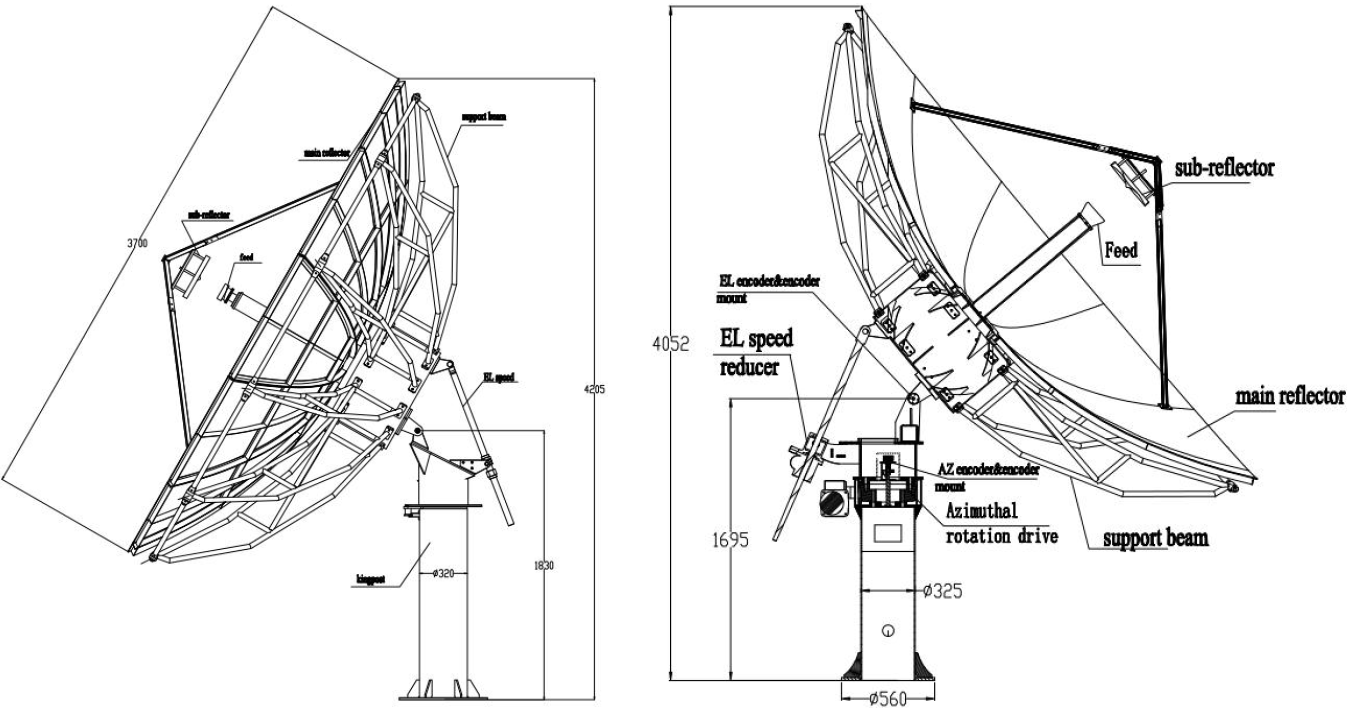

ANCHOR 3.7m Ka-Band Earth Station Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Please note: Installation services are not included with this product.

KEY SPECIFICATIONS
antenna category Earth Station
band Ka-Band
Product Revision A
ANTENNA SPECIFICATIONS
Antenna Aperture 3.7m
antenna drive mode 3-axis motorized structure
antenna type Ring Focus
number of ports 4-ports
polarization Linear
Rx axial ratio 4 ports ≤1 dB
sidelobe First Side Lobe: ≤-14dB
90% Peaks under following envelope: 29 - 25 logθ(1°≤θ＜20°)
Tx axial ratio 4 ports ≤1 dB
RF SPECIFICATIONS
noise temperature elevation 10° 125.5 K
noise temperature elevation 20° 87 K
noise temperature elevation 40° 61 K
port isolation Rx-Tx 85 dB
rx -3dB Beam width 0.3°
Rx feed insertion loss 0.5 dB
Rx frequency 17.70 - 21.20 GHz
rx gain 55.46 @ 19.05 GHz
Rx VSWR 1.35 : 1
tx -3dB Beam width 0.2°
Tx feed insertion loss 0.6 dB
Tx frequency 27.50 - 31.00 GHz
tx gain 59.14 @ 29.00 GHz
Tx VSWR 1.35 : 1
ELECTRICAL SPECIFICATIONS
power capacity 2 KW
INTERFACE SPECIFICATIONS
Rx interface WR-42
Tx interface WR-28
ENVIRONMENTAL SPECIFICATIONS
humidity 1.0
ice load Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal 0.3 G
seismic capacity vertical 0.1 G
temperature operational -30 - 50℃
windspeed operational 72 km/h
windspeed survival 216 km/h
PHYSICAL SPECIFICATIONS
loading capacity 5 sets for one 20ft container; 10 sets for one 40ft container
motion range AZ Manual: 0° - 360°(continuous); LMC: 100° (continuous); FMC: 5° - 355° (continuous)
motion range EL 5° - 90°
motion range POL ±90°
product package 5 packages, dimension: 9.2 m³, net weight: 1200kg, gross weight:1627kg
structure EL over AZ
surface accuracy RMS ≤0.5 mm
