ATOM-100104

ATOM 40W Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.

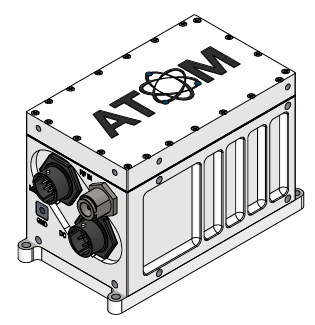

The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

KEY SPECIFICATIONS
band Ku-Band
band type Extended
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 40W
Product Revision C
RF SPECIFICATIONS
gain flatness (40MHz) ≤ 2.0 dB p-p
Gain Flatness (over full band) ≤ 6.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
noise power density -65 dBm/Hz in Tx, -65 dBm/Hz in Rx
output power psat 47 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -55 dBc
output VSWR 2.0 : 1 max.
phase noise 1kHz offset max -72 dBc/Hz
phase noise 10kHz offset max -82 dBc/Hz
phase noise 100kHz offset max -92 dBc/Hz
phase noise 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat 305 W max.
power requirements +18 to +56V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF output connector WR-62 waveguide grooved
M and C SPECIFICATIONS
mute control Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled)
m and c connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P
m and c interface RS-485 & RS-232
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
IP rating IP 65
temperature operational -40°C to +60°C
temperature storage -50 to +80°C

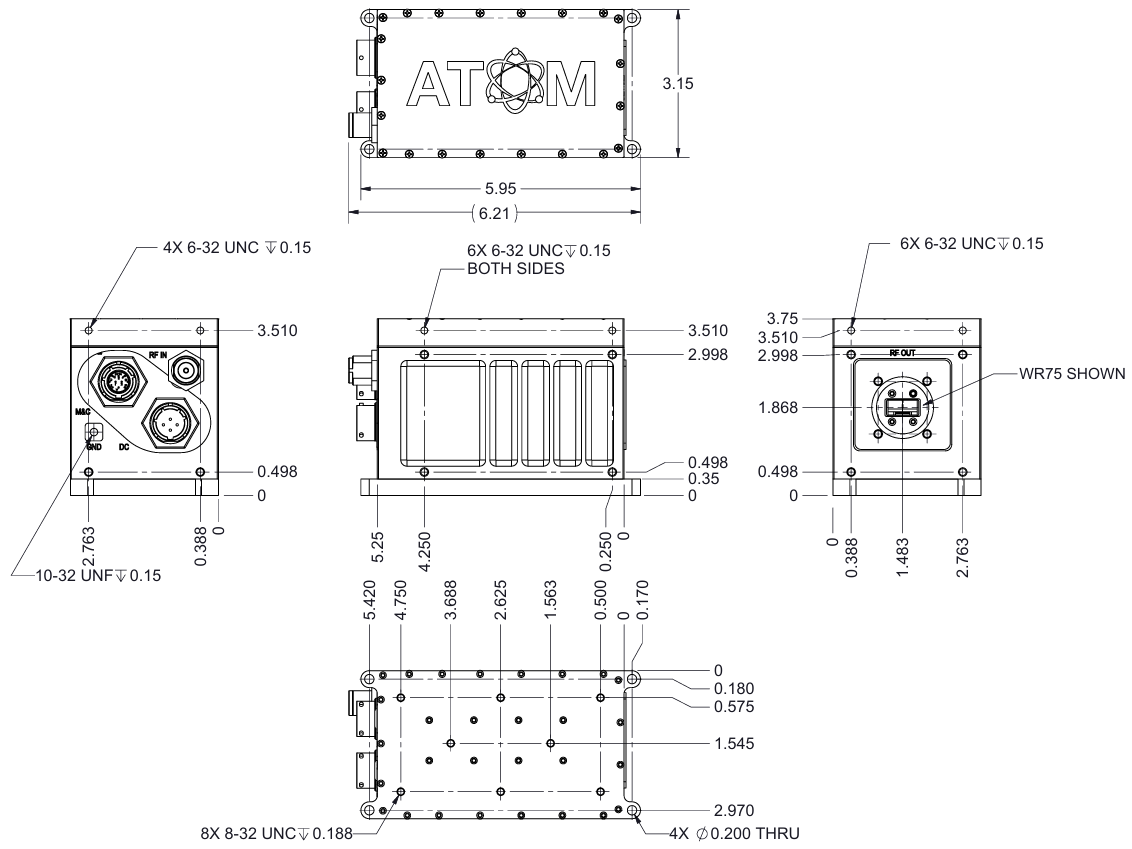

PHYSICAL SPECIFICATIONS
cooling External Baseplate
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 95 mm (3.75 in)
product length 158 mm (6.21 in)
product weight 1.8 kg (4.0 lbs)
product width 80 mm (3.15 in)
ACCESSORIES
optional configuration add ons Surge Protection
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS480-AT1-(NA/UK/EU/IEC/CN/AU)
