ATOM-100038

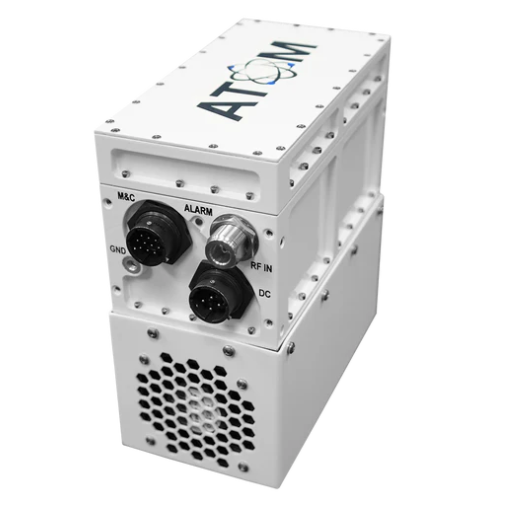

ATOM 25W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), -5 to +5 dBm
input frequency band 1 950 - 1950 MHz
input frequency band 2 1000 - 2000 MHz
LO frequency 1 28.05 GHz
LO frequency 2 29.05 GHz
output frequency band 1 29.00 - 30.00 GHz
output frequency band 2 30.00 - 31.00 GHz
output power rated 25W
Product Revision G
RF SPECIFICATIONS
gain flatness (40MHz) ≤ 1.0 dB p-p
gain flatness (over 50MHz) ≤ 4.0 dB p-p
Gain Flatness (over full band) ≤ 3.5 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.5 : 1 max.
linear gain max 65 dB
linear gain min 55 dB
linear gain typ 60 dB
linear power plin 41 dBm min.
noise power density -65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat 44 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -60 dBc
output VSWR 1.9 : 1 max.
phase noise 0.1kHz offset max -62dBc/Hz
phase noise 100kHz offset max -92 dBc/Hz
phase noise 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
maximum current 20 VDC 14.8A max.
power connector MIL-26482 Series 1 receptacle Shell Size 12, 4 Pins 58-533723-04P
power consumption 285 W max.
power requirements +20 to +40V DC
INTERFACE SPECIFICATIONS
EMI EMC filter MIL-STD-461
IF connector N Connector
M&C connector MIL-26482 Series 1 receptacle Shell Size 12, 10 Pins 58-533723-10P
RF output connector WR-28 waveguide grooved
surge protection MIL-STD-1275D
M and C SPECIFICATIONS
mute control Fully configurable (mute enable: high or low, mute default: enabled or disabled). Low: 0.0 - 0.8V; High: 3.0 - 5.0V
m and c interface RS-485 & Ethernet
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40 to +70°C
temperature storage -54 to +71°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)

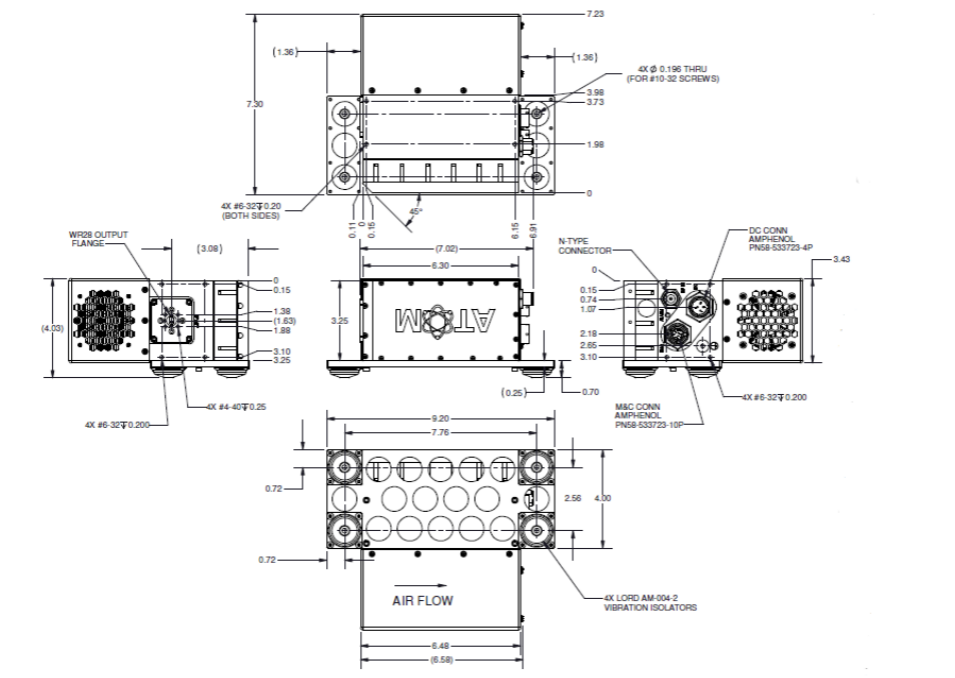

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket, M&C Connector, Power Connector, External Vibration Assembly
product height 170 mm
product length 140 mm
product weight 3.2 kg
product width 80 mm
ACCESSORIES
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS300-AT1-(NA/UK/EU/IEC/CN/AU)
