ATOM 25W Ka-Band BUC
ATOM 25W Ka-Band BUC
ATOM 25W Ka-Band BUC
ATOM 25W Ka-Band BUC

ATOMBKA025B2GKKO4FHP

ATOM 25W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



ATOMBKA025B2GKKO4FHP

KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 950-1950 MHz
input frequency band 2 950-1950 MHz
LO frequency 1 27.55 GHz
LO frequency 2 28.55 GHz
output frequency band 1 28.5-29.5 GHz
output frequency band 2 29.5-30.5 GHz
output power rated 25W
Product Revision G
RF SPECIFICATIONS
gain flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 1.5 : 1 max.
linear gain max 65 dB
linear gain min 55 dB
linear gain typ 60 dB
linear power plin 41 dBm min.
noise power density -65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat 44 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -60 dBc
output VSWR 1.9 : 1 max.
phase noise 0.1kHz offset max -62 dBc/Hz
phase noise 100kHz offset max -92 dBc/Hz
phase noise 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
external ref freq 10 MHz (sine-wave), -5 to +5 dBm
input power via power connector
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power requirements +18 to +40V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector Female
M&C connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P
M&C interface RS-485 & RS-232
M&C mute control Fully configurable, (mute enable: high or low, mute default: enabled or disabled)
M&C mute control high 3.0 - 5.0V
M&C mute control low 0.0 - 0.8V
RF output connector WR-28 waveguide grooved
surge protection MIL-STD-1275D
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40 to +60°C
temperature storage -54 to +71°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)

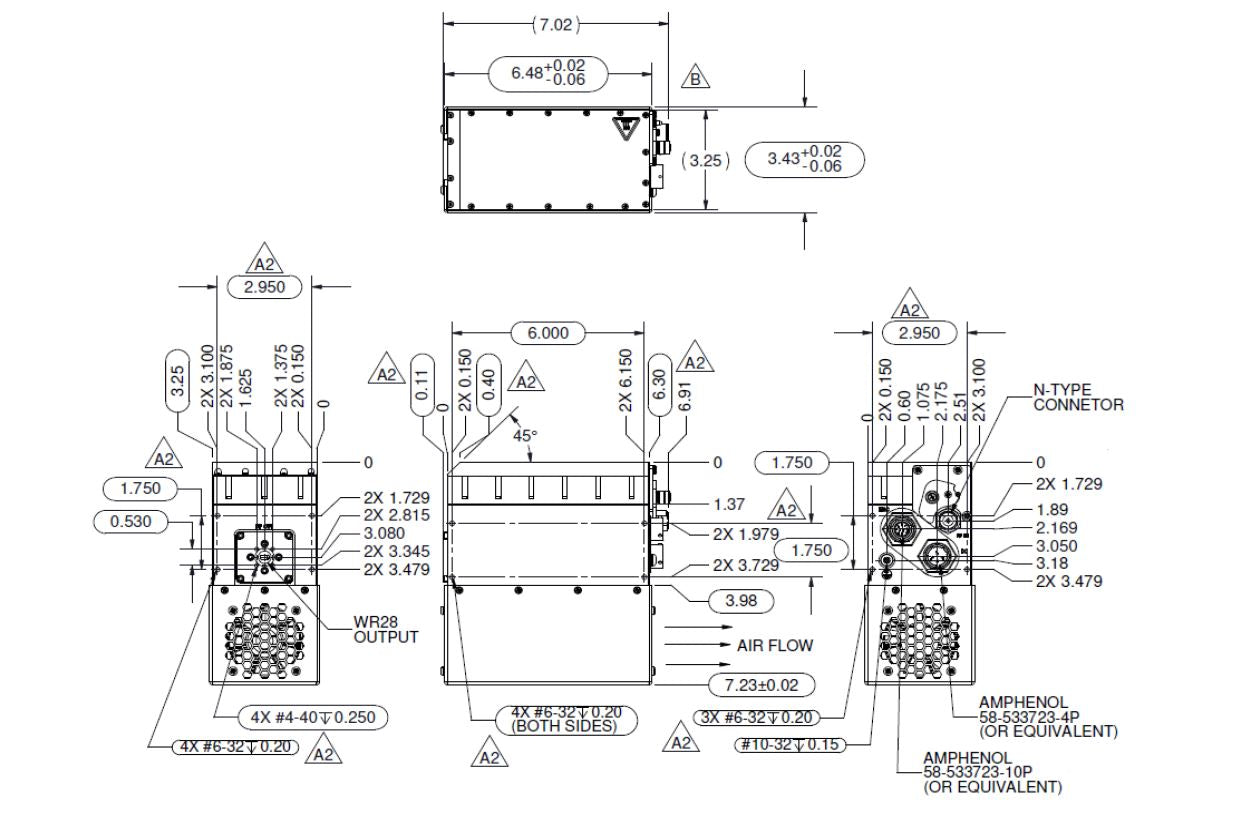

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 183.6 mm
product length 180 mm
product weight 3.425 kg
product width 87.1 mm
ACCESSORIES
optional configuration add ons EMI/EMC_filter: MIL-STD-461G
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS480-AT1-(NA/UK/EU/IEC/CN/AU)
