ATOM 40W Ku-Band BUC
ATOM 40W Ku-Band BUC
ATOM 40W Ku-Band BUC
ATOM 40W Ku-Band BUC

ATOM-100046

ATOM 40W Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 40W
Product Revision C.2
RF SPECIFICATIONS
gain flatness (40MHz) ≤ 2.0 dB p-p
Gain Flatness (over full band) ≤ 6.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
noise power density -65 dBm/Hz in Tx
-65 dBm/Hz in Rx
output P1dB 46 dBm min.
output power psat 47 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -55 dBc
output VSWR 2.0 : 1 max.
phase noise 100kHz offset max -92 dBc/Hz
phase noise 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat 270 W max. @ P1dB
305 W max. @ Psat
power requirements +18 to +56V DC
power supply via power connector
INTERFACE SPECIFICATIONS
IF connector N-Connector
included configuration add ons EMI/EMC Filter
Fast Switch
High Temperature
M&C connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P
M&C interface RS-485 & RS-232
mute control Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V,
mute default: enabled or disabled)
RF output connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40 to +70°C with high temperature option
temperature storage -50 to +80°C

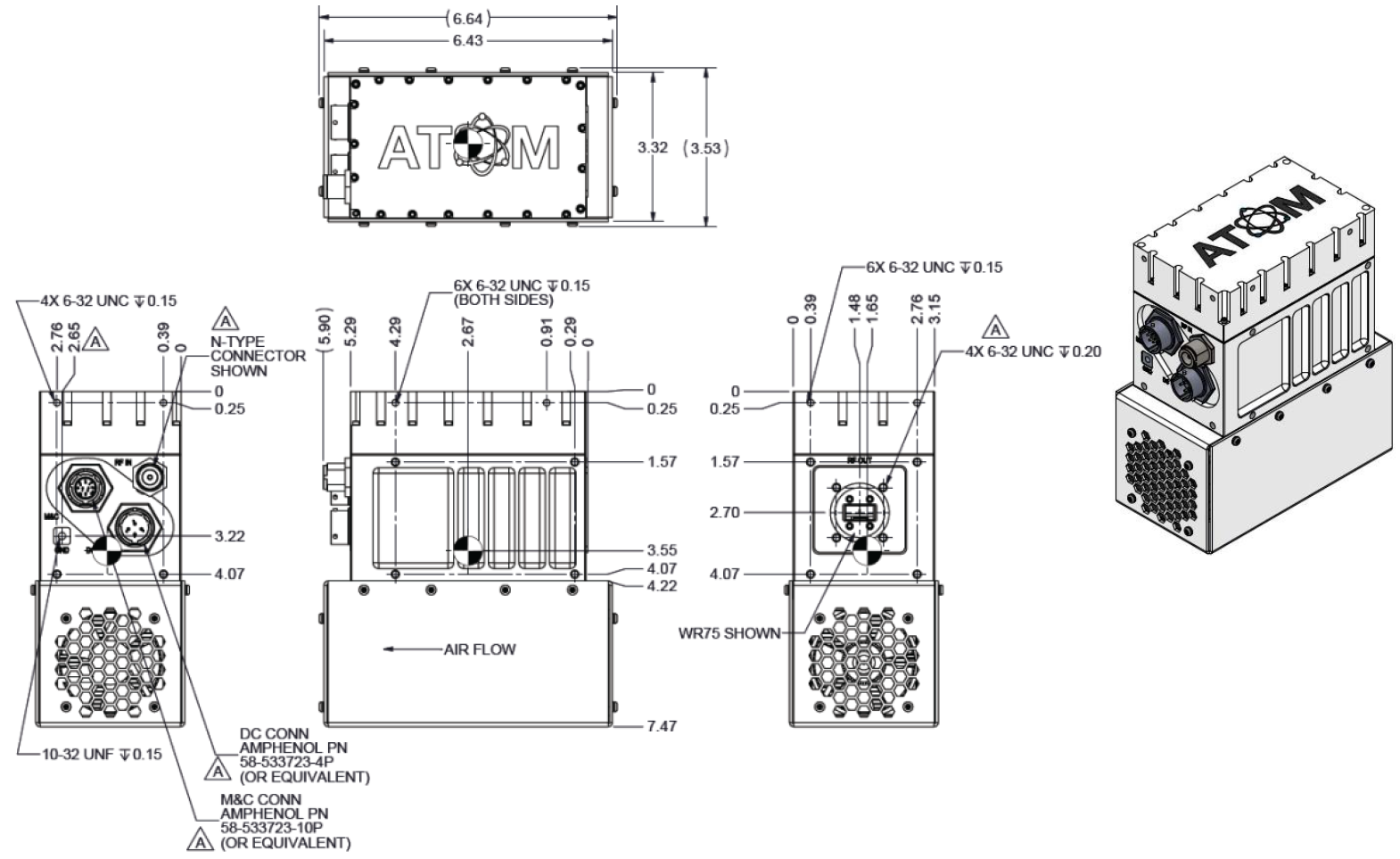

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 190 mm
product length 169 mm
product weight < 2.65 kg
product width 90 mm
ACCESSORIES
optional M&C cable 10m CABLEM+C-AT10
optional power supply PS300-AT1-(NA/UK/EU/IEC)
