Ku-Band 40W BUC
Ku-Band 40W BUC
Ku-Band 40W BUC
Ku-Band 40W BUC

ATOMBKU040-E

Ku-Band 40W BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band KU-Band
external ref frequency 10MHz (sine-wave), -5 to +5 dBm
if frequency 950 - 1700 mhz
LO frequency 12.80- 13.05 ghz
output power rated 40 W
Product Revision A
RF SPECIFICATIONS
gain flatness (over full band) ≤ 6.0 dB p-p (BUC); ≤ 8.0 dB p-p (SSPA)
gain flatness (over any 40mHz) ≤ 2.0 dB p-p (BUC); ≤ 3.0 dB p-p (SSPA)
gain flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
noise power density -65 dBm/Hz in Tx; -65 dBm/Hz in Rx
output power p1dB 46 dBm min.
output power psat 46 dBm min.
output spurious in band ≤ -55 dBc (BUC); ≤ -60 dBc (SSPA)
output spurious out band ≤ -55 dBc (BUC); ≤-55 dBc (SSPA)
output VSWR 2.0 : 1 max.
phase noise SSB 1kHz offset max -72 dBc/Hz
phase noise SSB 10kHz offset max -82 dBc/Hz
phase noise SSB 100kHz offset max -92 dBc/Hz
phase noise SSB 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 305 W max.
INTERFACE SPECIFICATIONS
IF connector N-Connector
m & c connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins 58-533723-10P
m & c interface RS-485 & RS-232
m & c mute control Fully configurable (mute enable: high or low, mute default: enabled or disabled)
RF output connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40°C to +60°C
temperature storage -50°C to +80°C

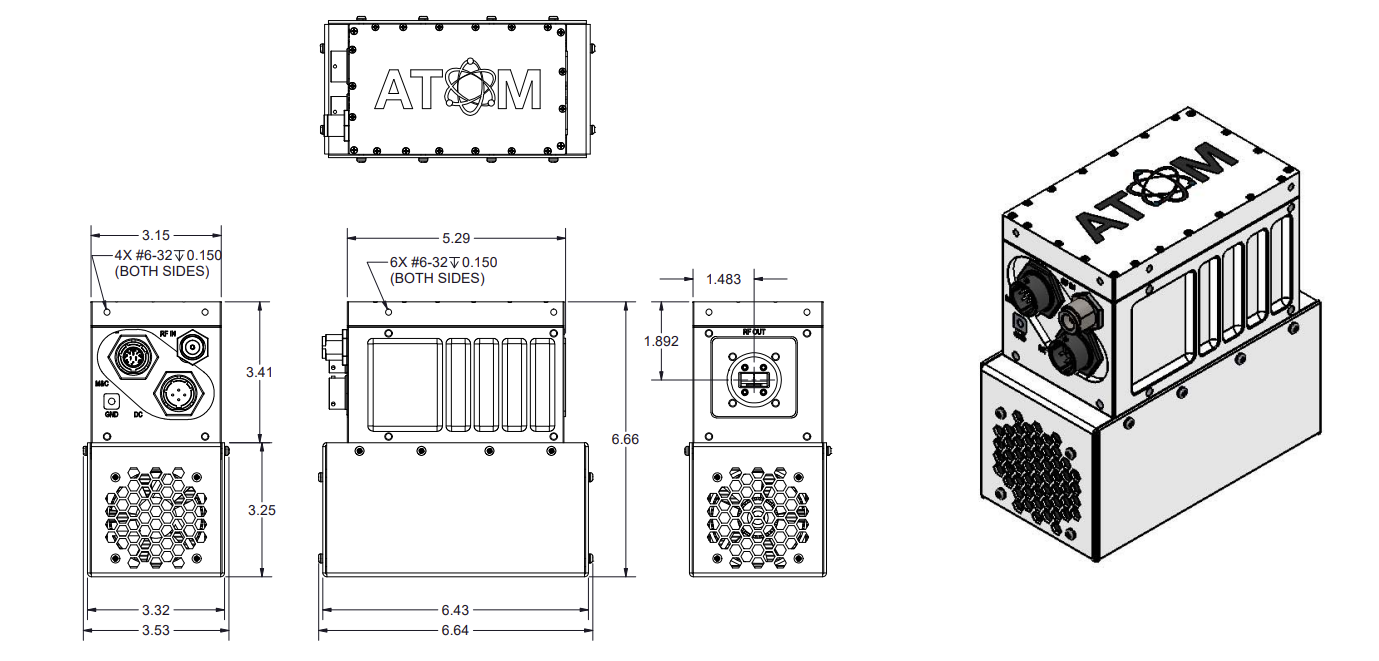

PHYSICAL SPECIFICATIONS
cooling 1: Internal Fan
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 193 mm
product length 169 mm
product weight < 2.5 kg
product width 90 mm
ACCESSORIES
optional configuration add ons EMI/EMC Filter:MIL-STD-461; Internal Reference: With External 10 MHz Reference Auto-Switch; Surge Protection: MIL-STD-1275D
optional m & c cable 10m CABLEM+C-AT10
optional power supply PS480-AT1-(NA/UK/EU/IEC/CN/AU)
