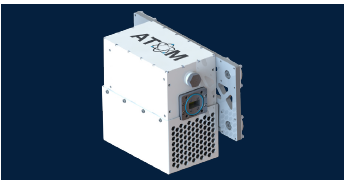

Name: ATOM 80W Ku-Band BUC GaN
Brand: Norsat International Inc.
SKU: ATOMBKUG080-871235
Availability: InStock

ATOMBKUG080-871235

ATOM 80W Ku-Band BUC GaN

$25,036.83

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":51696243442031,"title":"Extended: 13.75 - 14.5 GHz \/ w\/ VIB ASSY \/ FP: EMI\/EMC Filter + Surge Protection w\/VIB ASSY","option1":"Extended: 13.75 - 14.5 GHz","option2":"w\/ VIB ASSY","option3":"FP: EMI\/EMC Filter + Surge Protection w\/VIB ASSY","sku":"ATOMBKUG080-871235","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 80W Ku-Band BUC GaN - Extended: 13.75 - 14.5 GHz \/ w\/ VIB ASSY \/ FP: EMI\/EMC Filter + Surge Protection w\/VIB ASSY","public_title":"Extended: 13.75 - 14.5 GHz \/ w\/ VIB ASSY \/ FP: EMI\/EMC Filter + Surge Protection w\/VIB ASSY","options":["Extended: 13.75 - 14.5 GHz","w\/ VIB ASSY","FP: EMI\/EMC Filter + Surge Protection w\/VIB ASSY"],"price":0,"weight":2800,"compare_at_price":2503683,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51696243474799,"title":"Extended: 13.75 - 14.5 GHz \/ w\/ Vibration Mount \/ FP: EMI\/EMC Filter + Surge Protection","option1":"Extended: 13.75 - 14.5 GHz","option2":"w\/ Vibration Mount","option3":"FP: EMI\/EMC Filter + Surge Protection","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 80W Ku-Band BUC GaN - Extended: 13.75 - 14.5 GHz \/ w\/ Vibration Mount \/ FP: EMI\/EMC Filter + Surge Protection","public_title":"Extended: 13.75 - 14.5 GHz \/ w\/ Vibration Mount \/ FP: EMI\/EMC Filter + Surge Protection","options":["Extended: 13.75 - 14.5 GHz","w\/ Vibration Mount","FP: EMI\/EMC Filter + Surge Protection"],"price":0,"weight":2800,"compare_at_price":2503683,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

ATOMBKUG080-871235

KEY SPECIFICATIONS
band	Ku-Band
band type	E: Extended
firmware version	2.3.1
input frequency band 1	950 - 1700 MHz
LO frequency 1	12.80 GHz
output frequency band 1	13.75 - 14.50 GHz
output power rated	80W
Product Revision	E

RF SPECIFICATIONS
gain flatness (40MHz)	≤ 1.5 dB p-p
Gain Flatness (over full band)	≤ 6.0 dB p-p
Gain Flatness (over temperature)	≤ 3.0 dB p-p
input VSWR	2.0 : 1 max.
Linear Gain	65 dB min.70 db typ., 75 db max.
linear power plin	47 dBm min.
noise power density	-90 dBm/Hz in Tx, -144 dBm/Hz in Rx
output spurious in band	≤ -60 dBc
output spurious out of band P1dB	≤ -60 dBc
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 1000kHz offset max	-103 dBc/Hz

ELECTRICAL SPECIFICATIONS
power connector	MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat	370 W max.
power requirements	+18 to +56V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF output connector	WR-75 waveguide grooved

M and C SPECIFICATIONS
mute control	Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled)
m and c interface	RS-485 & RS-232; Ethernet

ENVIRONMENTAL SPECIFICATIONS
humidity	100% condensing
temperature operational	-40 to +60°C (Psat), -40 to 71°C (Plin)
temperature storage	-50 to +80°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket, M&C Connector, Power Connector

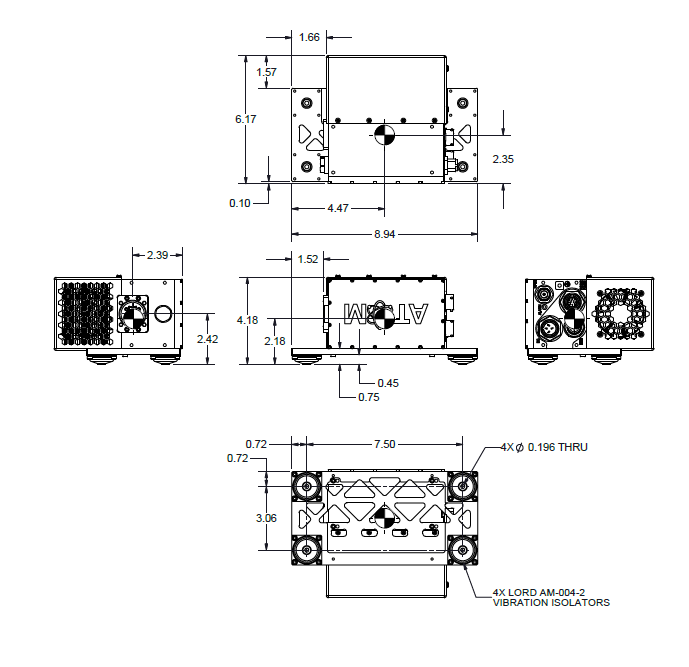

product dimensions	164 mm x 94 mm x 156 mm
product weight	2.3 kg

ACCESSORIES
configuration add ons	FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m	CABLEM+C-AT10
optional power supply	PS600-AT1-(NA/UK/EU/IEC/CN/AU)

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
