ATOM 80W Ku-Band GaN BUC
ATOM 80W Ku-Band GaN BUC
ATOM 80W Ku-Band GaN BUC
ATOM 80W Ku-Band GaN BUC

ATOMBKUG080D1FP-VA80

ATOM 80W Ku-Band GaN BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
compliance MIL-STD-810 Compliant
customization Vibration Assembly
EMI EMC filter and surge protection MIL-STD-461, MIL-STD-1275D , MIL-STD-1275E, MIL-STD-704A
firmware version 3.1.2
input frequency band 1 950 - 1200 MHz
input frequency band 2 950 - 1700 MHz
LO frequency 1 12.05 GHz
LO frequency 2 12.8
output frequency band 1 13.00 - 13.25 GHz
output frequency band 2 13.75 - 14.50 GHz
output power rated 80 W
vibration assembly External Vibration Plate and Isolators included
Product Revision F
RF SPECIFICATIONS
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
gain flatness (40MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 6.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain 60 dB min., 70 db max.
linear power plin 46 dBm min.
noise power density -90 dBm/Hz in Tx, -144 dBm/Hz in Rx
output power psat 49 dBm min.
output spurious in band ≤ -60 dBc
output spurious out of band ≤ -60 dBc
output VSWR 2.6 : 1 max.
phase noise 1000kHz offset max -103 dBc/Hz
phase noise 100kHz offset max -93 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 1kHz offset max -73 dBc/Hz
ELECTRICAL SPECIFICATIONS
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat 370 W max.
power requirements +18 to +56V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
M&C mute control Fully configurable (mute enable: high or low, mute default: enabled or disabled)
Low: 0.0 - 0.8V
High: 3.0 - 5.0V
m and c connector RS- 485 & RS-232: MIL-26482 Series 1 receptacle Shell Size 12, 10 Pins 58-533723-10P
Ethernet: MIL-26482 Series 1 receptacle Shell Size 10, 6 Pins 58-533722-06P
m and c interface RS-485 & RS-232 Ethernet
RF output connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40°C to +60°C (Psat)
temperature storage -50°C to +80°C
PHYSICAL SPECIFICATIONS
cooling 1: Internal Fan
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
fan height 38 mm
fan length 80 mm
fan width 80 mm

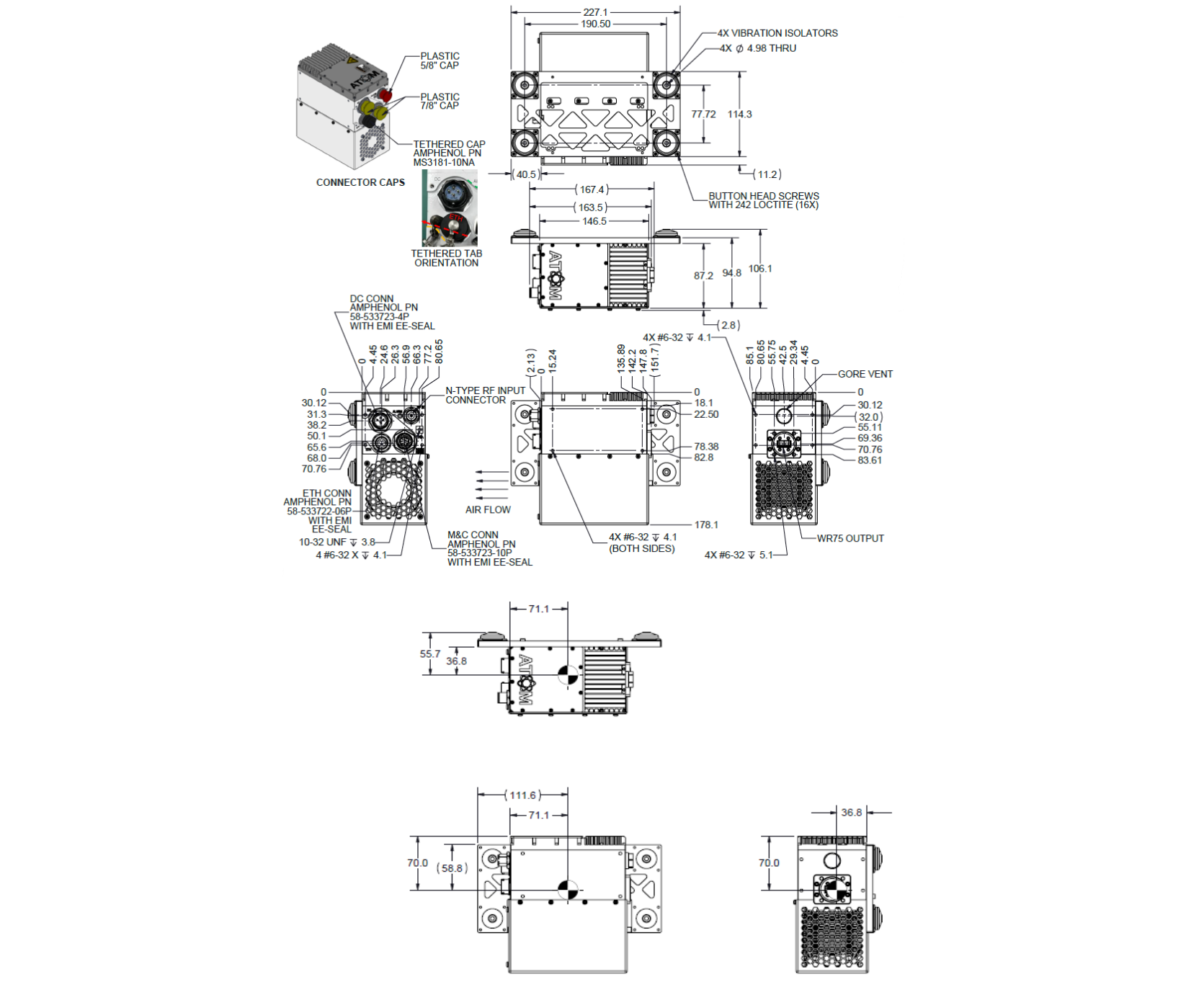

product dimensions (with fan) (LxWxH) 160 x 95 x 166 mm
product height 0.1781 m
product length 0.2271 m
product weight 3.1 kg
product width 0.1089 m
ACCESSORIES
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS480-AT1-(NA/UK/EU/IEC/CN/AU)
