ATOM 20W Ku-Band SSPA
ATOM 20W Ku-Band SSPA
ATOM 20W Ku-Band SSPA
ATOM 20W Ku-Band SSPA

ATOMSKU020BINCX

ATOM 20W Ku-Band SSPA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 14.25 - 14.50 GHz
input frequency band 2 14.50 - 15.00 GHz
output frequency band 3 15.00 - 15.50 GHz
output power rated 20W
Product Revision B
RF SPECIFICATIONS
gain flatness (40MHz) Band 1: ≤ 2.0 dB p-p
Band 2: ≤ 2.0 dB p-p
Band 3: ≤ 3.0 dB p-p
Gain Flatness (over full band) Band 1: ≤ 6.0 dB p-p
Band 2: ≤ 6.0 dB p-p
Band 3: ≤ 7.0 dB p-p
Gain Flatness (over temperature) Band 1: ≤ 3.0 dB p-p
Band 2: ≤ 3.0 dB p-p
Band 3: ≤ 3.0 dB p-p
Linear Gain ≥ 46 dB
noise figure max 18.0 dB
output power P1dB 42.6 dBm min.
output power psat 42.8 dBm min.
ELECTRICAL SPECIFICATIONS
current consumption 11.7 A max.
input power via power connector
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat 210 W max.
power requirements +18 to +56 V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF output connector WR-62 waveguide grooved
M and C SPECIFICATIONS
mute control Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled)
m and c connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P
m and c interface RS-485 & RS-232
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40°C to +60°C
temperature storage -50 to +80°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)

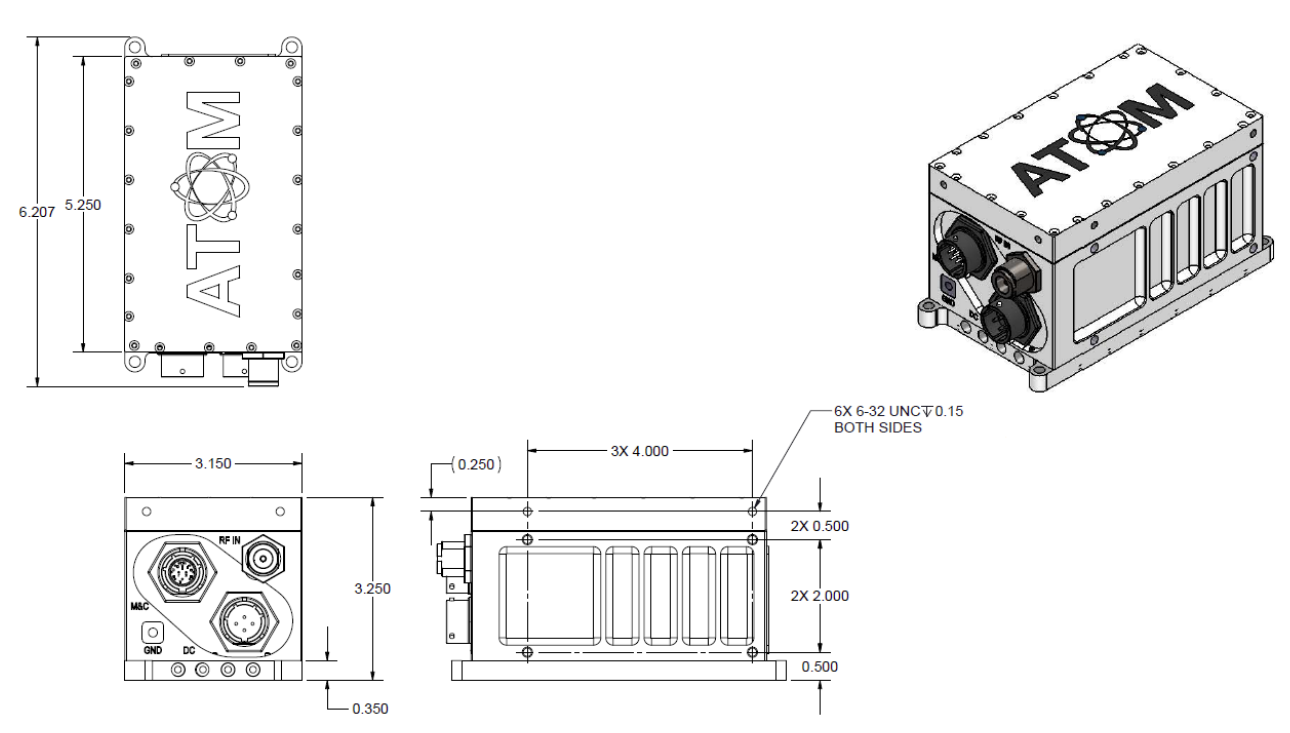

PHYSICAL SPECIFICATIONS
cooling No Fans
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 82.6 mm
product length 157.7 mm
product weight 1.4 kg
product width 80 mm
ACCESSORIES
optional configuration add ons No Add-on
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS300-AT1-(NA/UK/EU/IEC/CN/AU)
