BDC-100048

Single-Band X-Band Int Ref BDC

$1,760.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band X-Band
input frequency band 1 8.0 - 8.7 GHz
LO frequency 1 7.05 GHz
LO stability ±10 KHz max
noise figure max 13 dB
output frequency band 1 950 - 1650 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 33 dB
conversion gain min 27 dB
conversion gain typ 30 dB
Gain Flatness (over 36MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Image rejection

40 dBc min.
Input VSWR

2.2 : 1 max
output P1dB + 5 dBm min.
output VSWR

2.2 : 1 max.
phase noise 1kHz offset max freq -70 dBc/Hz
phase noise 10kHz offset max freq -80 dBc/Hz
phase noise 100kHz offset max freq -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption

300 mA max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
input power port DC Power via Output Connector
RF input connector N-Connector
RF output connector N-Connector
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

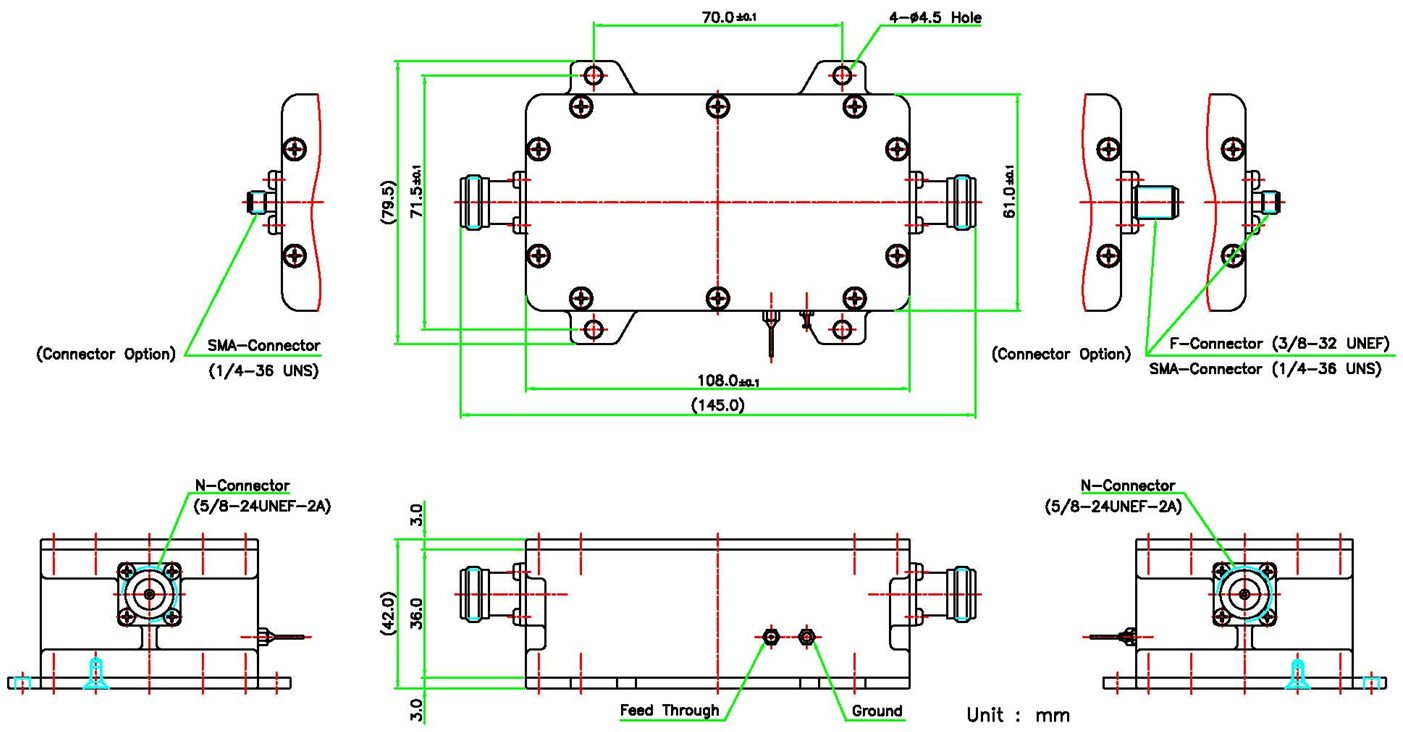

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 108 mm
product weight 0.55 kg
product width 79.5 mm
