BDC-100051

3000 Single Band C-Band EXT REF BDC, GAIN 45db

BDC-3000X Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.

KEY SPECIFICATIONS
band C-Band
external ref freq 10 MHz (sine-wave), -10 to 0 dBm, via Separate SMA Connector
input frequency band 1 3.40 - 4.20 GHz
LO frequency 1 5.15 GHz
LO stability Ext Ref
noise figure 10 dB max. at room temp.
number of onboard LOs Single-Band
output frequency band 1 950 - 1750 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain min 45 dB
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Ripple at 36MHz ≤ 1 dB p-p
input VSWR 2.0 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.0 : 1 max.
phase noise SSB max Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
input power via Feed-Through
power requirements +12 to +24 VDC
INTERFACE SPECIFICATIONS
RF input connector S: SMA 50 Ohm
RF output connector S: SMA 50 Ohm
M and C SPECIFICATIONS
input power port DC Power via Feed-Through
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C
temperature storage -40 to +80°C

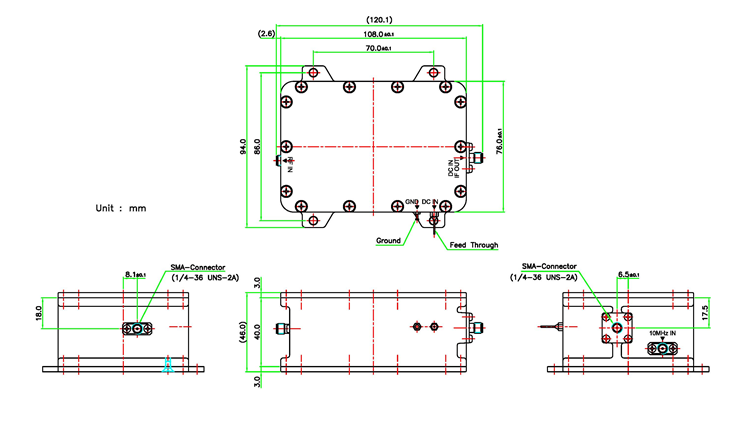

PHYSICAL SPECIFICATIONS
product height 46 mm
product length 120 mm
product weight 0.62 kg
product width 94 mm
