BDC-XT1000-810179

1000 Single Band X-Band EXT REF BDC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.




KEY SPECIFICATIONS
band X-Band
external ref freq 10 MHz, -5 to +5 dBm, Injected Output Connector
input frequency band 1 7.0 - 8.0 GHz
LO frequency 1 6.05 GHz
LO stability Ext Ref
noise figure 13 dB max. at room temp.
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 32 dB
conversion gain min 28 dB
conversion gain typ 30 dB
Gain Flatness (Over Any 36MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
image rejection 40 dBc min.
input VSWR 2.2 : 1 max.
leakage -45 dBm max. @ input port
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
power requirements +15 to +24 VDC Feed Through & Output Connector
INTERFACE SPECIFICATIONS
RF input connector SMA: 50 Ohm
RF output connector SMA: 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity 0% to 95% RH
temperature operational -40°C to +60°C
temperature storage -40°C to +80°C

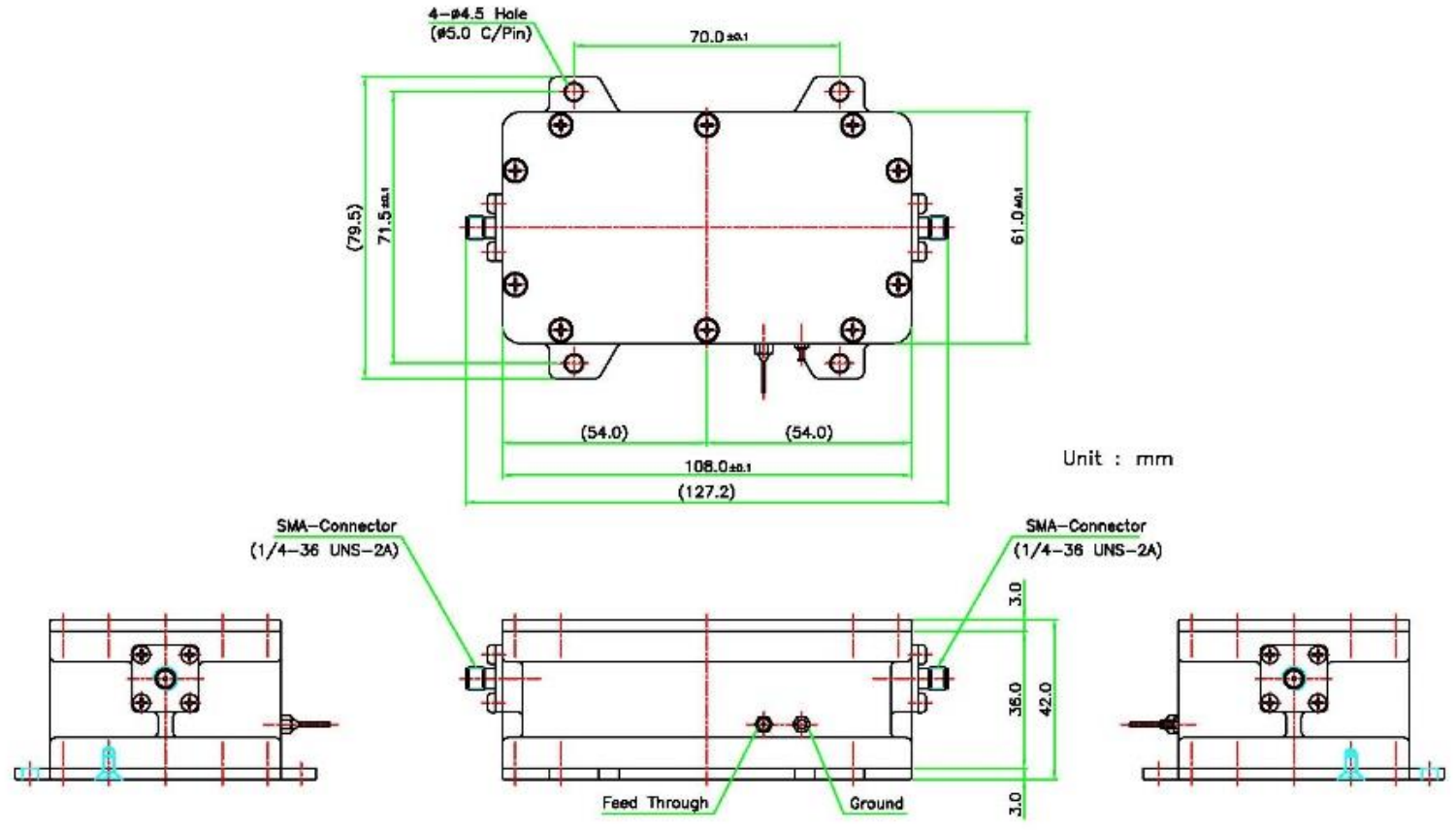

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 127 mm
product weight 0.7 kg
product width 80 mm
