BPF-100139
S-Band Bandpass Filter
ACCESSORIES
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | S-Band |

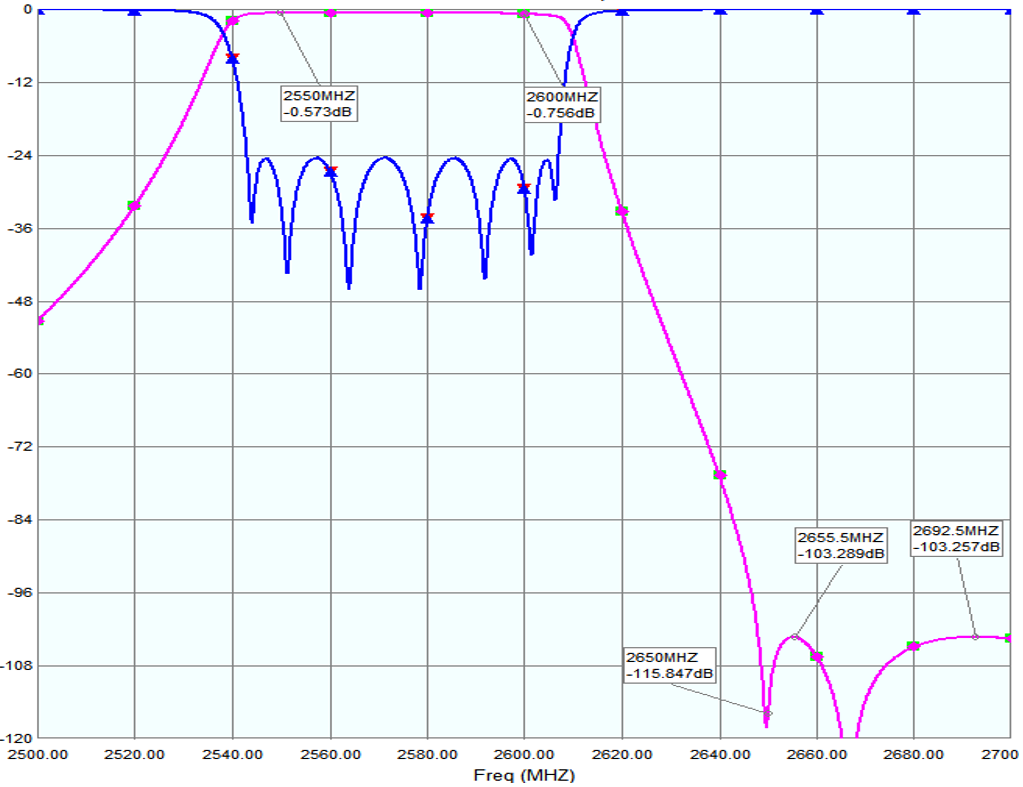

| frequency | 2550 - 2600 MHz |
| rejection | ≥100 dB @ 2650 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| impedance | 50 Ω |
| input average power per port | 6W |
| insertion loss | 1.0 dB max. |
| VSWR | 1.5 : 1 max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input Flange | SMA-Connector |
| RF output Flange | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| barometric pressure | 55 KPa - 106 KPa |
| humidity | 5% to 95% |
| temperature operational | -40 to +85°C |
| temperature storage | -40 to +85˚C |

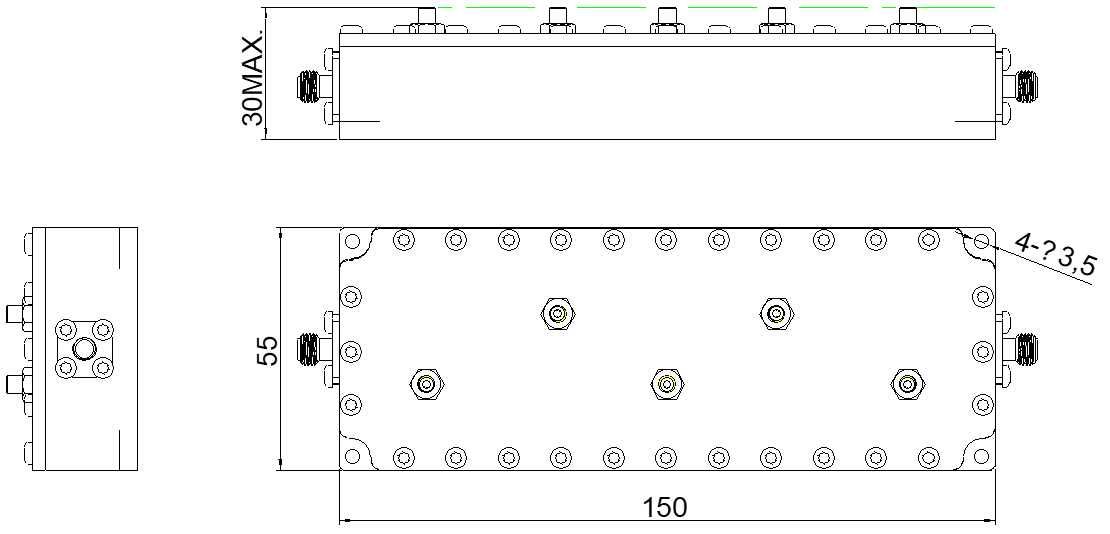

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 30 mm |
| product length | 150 mm |
| product weight | 0.5 kg max. |
| product width | 55 mm |
