BPF-100144
Ku-Band Receive Filter
ACCESSORIES
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |

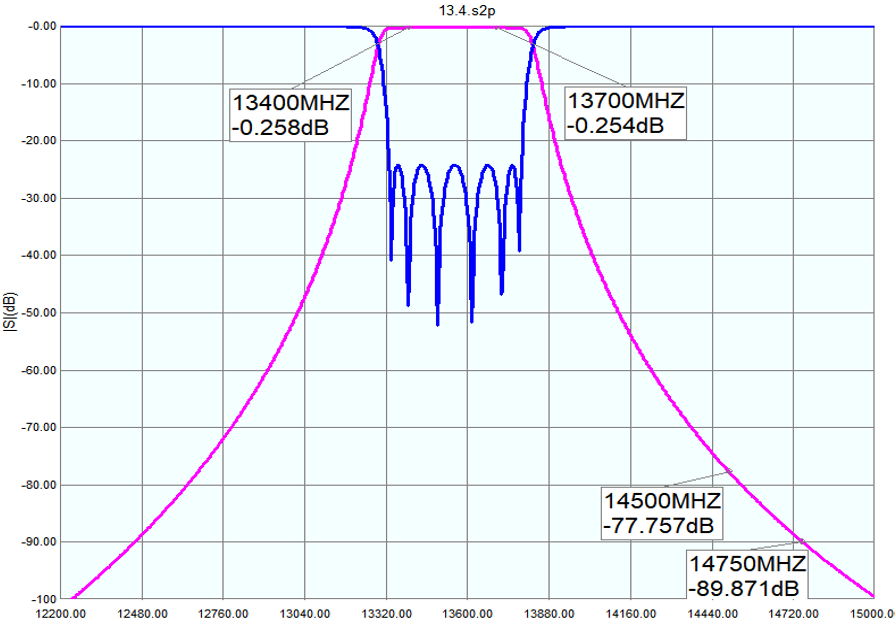

| frequency | 13.40 - 13.70 GHz |
| rejection | 75dB min. at 14.50 to 14.75 GHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| impedance | 50 Ω |
| insertion loss | 0.3 dB |
| VSWR | 1.3 : 1 max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| flange 1 | WR-75 Grooved |
| flange 2 | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| barometric pressure | 55 KPa -106KPa |
| humidity | 5% to 95% |
| IP rating | IP65 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +85˚C |

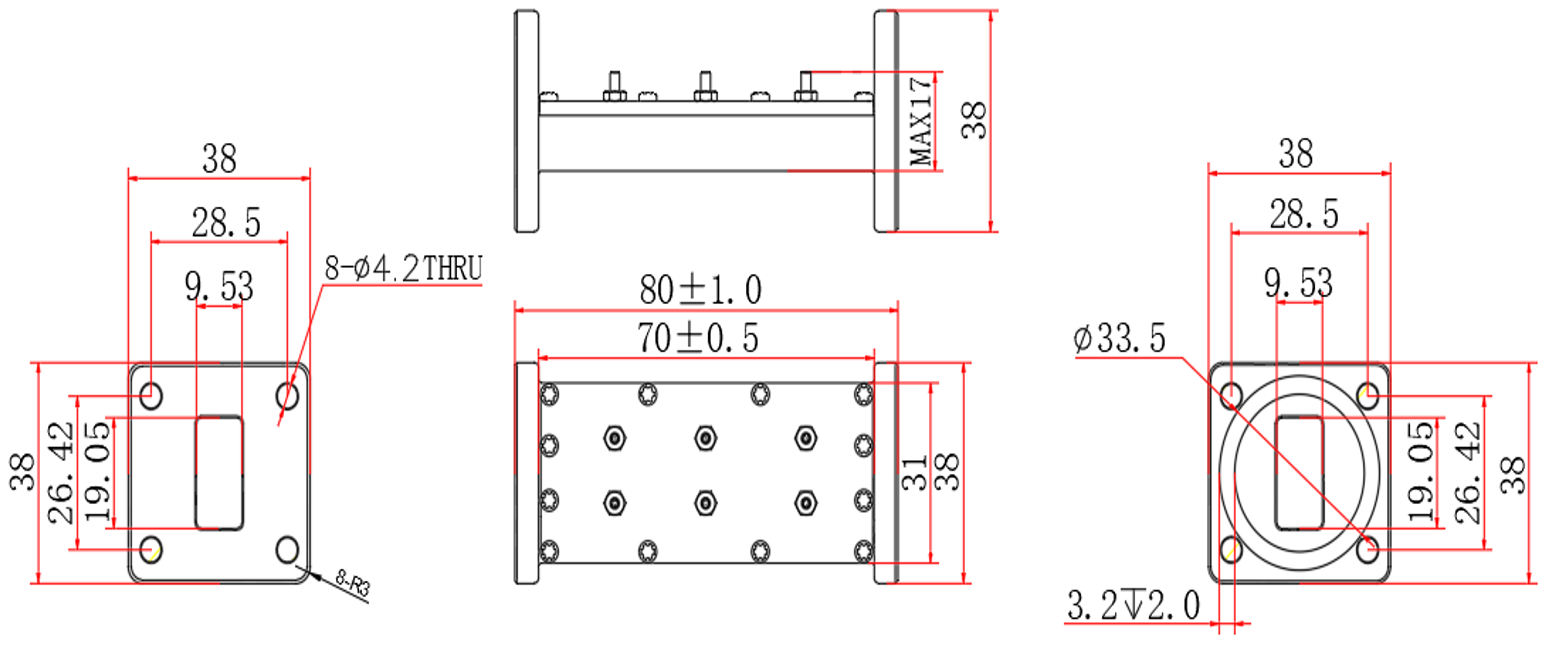

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 38 mm |
| product length | 80 mm |
| product weight | 0.30 kg |
| product width | 38 mm |
