BPF-100145
C-Band 5G Bandpass Filter
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | C-Band |
| group delay variation | 30 ns max. |

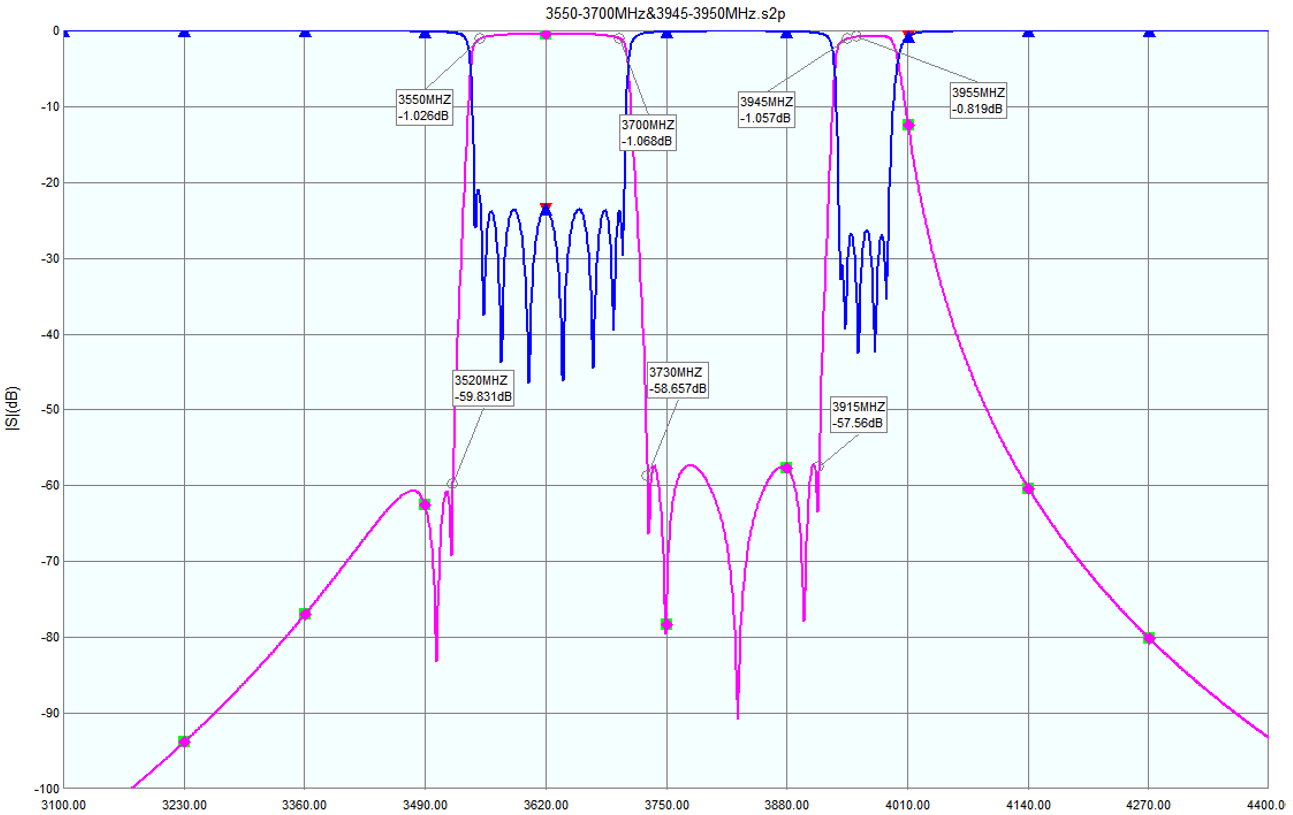

| pass band | 3550 - 3700 MHz & 3945 - 3955 MHz |
| rejection | ≥55 dB at DC - 3520 MHz ≥55 dB at 3730 - 3915 MHz ≥55 dB at 5850 - 6725 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| insertion loss | 1.2 dB max. at band edges 0.3 dB at band center |
| return loss | ≥ 20dB |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | CPR 229G waveguide grooved |
| RF output connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 5% to 95% |
| IP rating | IP67 |
| pressurization | 5 PSIG |
| temperature operational | -20ºC to +50ºC |
| temperature storage | -40ºC to +85ºC |

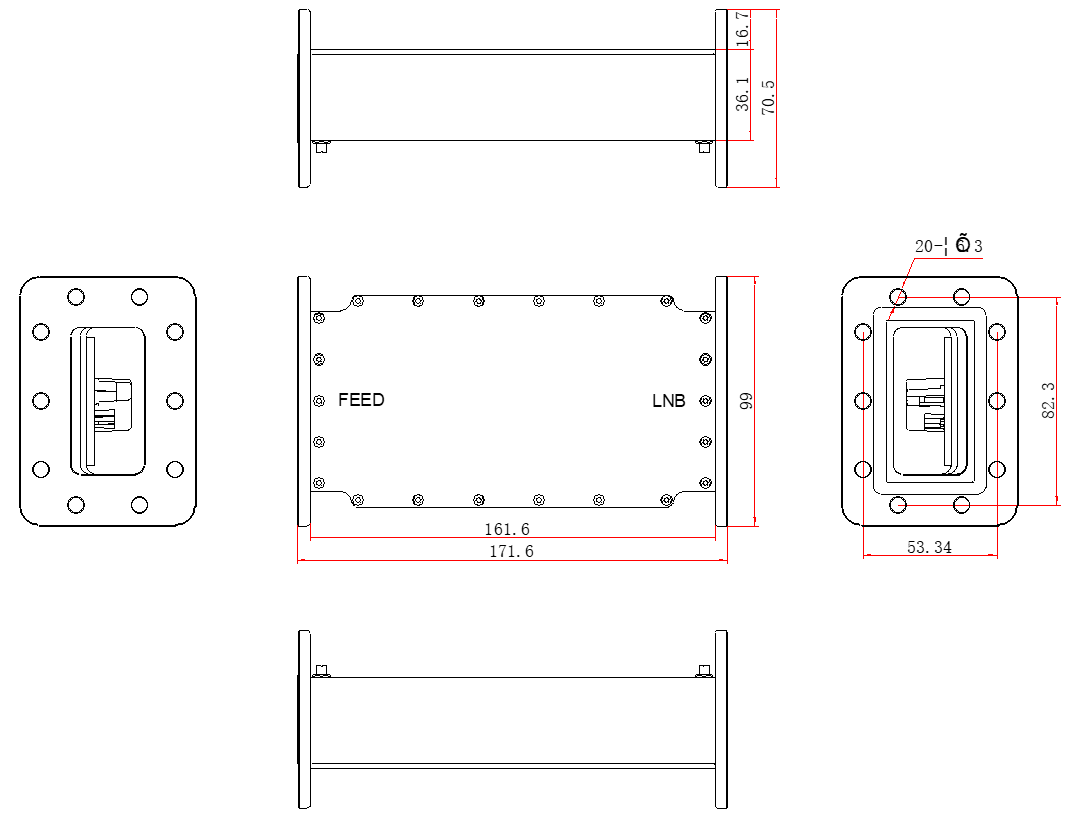

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 70.5 mm |
| product length | 171.6 mm |
| product weight | 0.9 kg |
| product width | 99 mm |
