BPF-100147

L Band Bandpass Filter

ACCESSORIES

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.

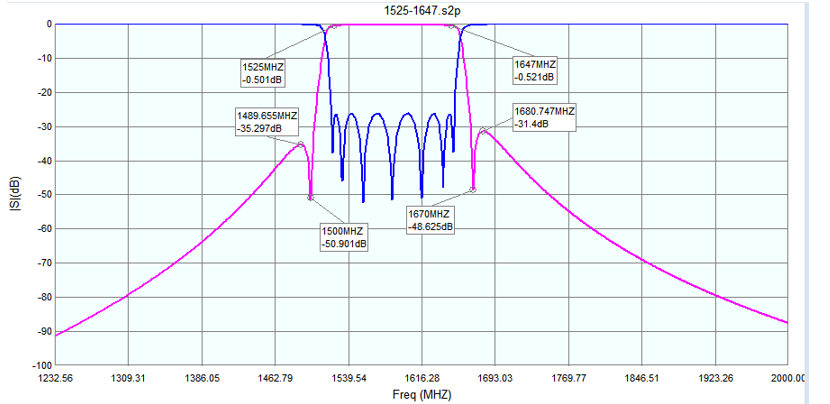

KEY SPECIFICATIONS
band L-Band
frequency 1525MHz ~ 1647MHz (BW122MHz)
rejection ≥30 dB at 1000-1500 MHz
rejection 2 ≥30 dB at 1670-1800 MHz
Product Revision A
RF SPECIFICATIONS
impedance 50 Ω
input average power per port 50W
insertion loss 0.45 dB max. at Center Frequency
insertion loss 2 0.80 dB max. at 1525 - 1647 MHz
VSWR 1.3 : 1 max.
INTERFACE SPECIFICATIONS
RF input Flange N-Connector
RF output Flange N-Connector
ENVIRONMENTAL SPECIFICATIONS
barometric pressure 55 KPa - 106 KPa
humidity 5% to 95%
temperature operational -40 to +85°C
temperature storage -40 to +85˚C
PHYSICAL SPECIFICATIONS
product height 42 mm
product length 145 mm
product weight 0.4 kg max.
product width 80 mm
