BPF-100155

C-Band 5G Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
center frequency 3.875 GHz
input frequency band 1 3.55 - 4.20 GHz
rejection > 45 dB at DC - 3.5 GHz
> 10 dB at 3.54 - 3.55 GHz
> 45 dB at 4.4 - 4.8 GHz
Product Revision A

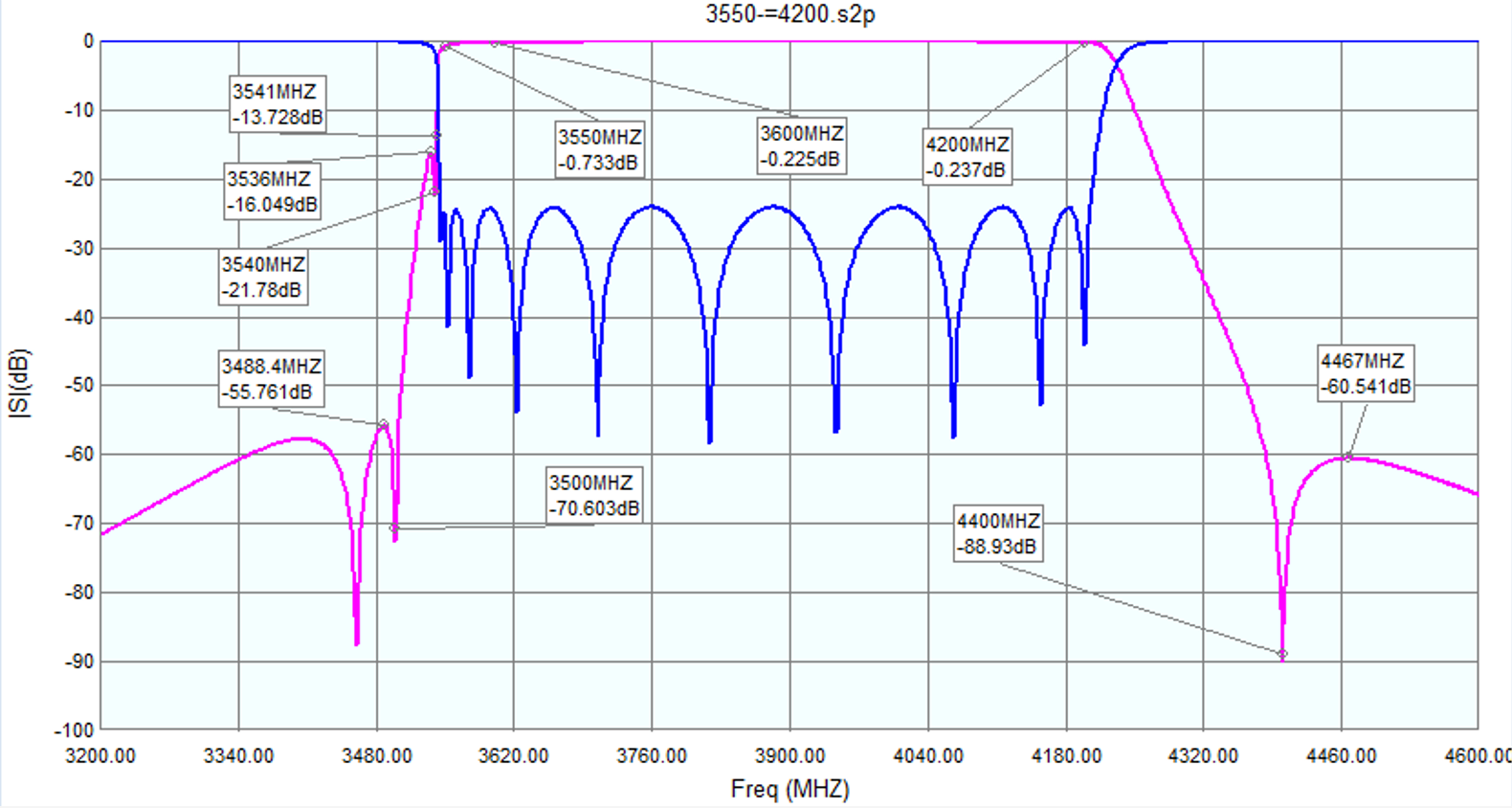

RF SPECIFICATIONS
group delay variation 1 ns max. (within ± 0.5 MHz)
insertion loss < 0.9 dB @ 3.55 to 3.60 GHz
< 0.5 dB @ 3.60 to 4.20 GHz
VSWR 1.3 : 1 max.
ELECTRICAL SPECIFICATIONS
impedance 50 Ω
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229G
ENVIRONMENTAL SPECIFICATIONS
barometric pressure 55 KPa - 106 KPa
humidity 5% to 95%
IP rating IP67
operating temperature -20°C to +60°C
storage temperature -40°C to +85°C

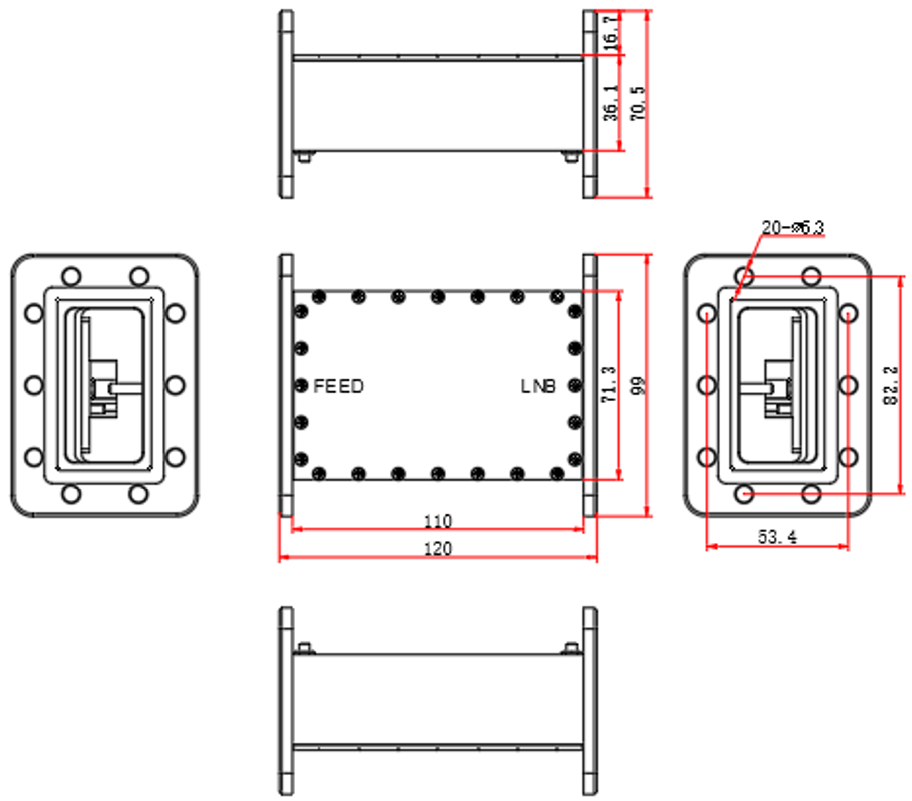

PHYSICAL SPECIFICATIONS
product height 70.5 mm
product length 120 mm
product weight 0.57 kg
product width 99 mm
