BPF-100158
Ku-Band RRF Filter
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| frequency | 13.75 - 14.50 GHz |
| rejection | 70 dB min. at 10.70 - 12.75 GHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| insertion loss | 0.25 dB typ |
| VSWR | 1.20 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power handling | 0.5 kW |

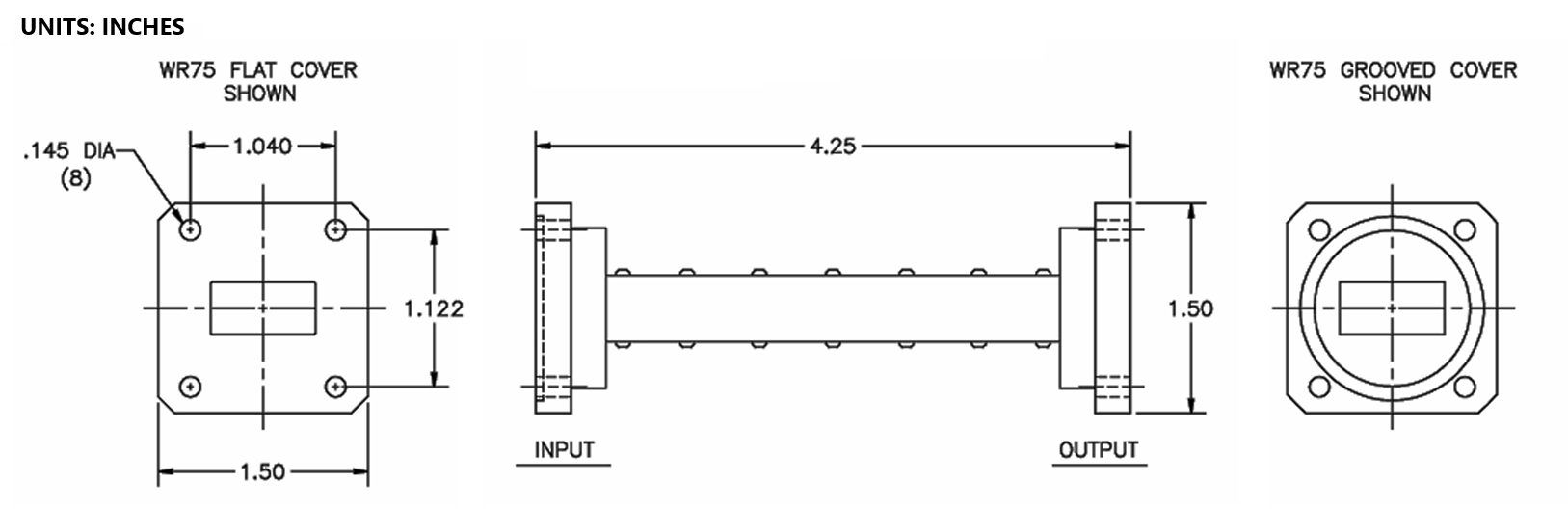

| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input Flange | WR-75 Flat |
| RF output Flange | WR-75 Grooved |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| colour | White |
| finish | Gloss White Lacquer |
| product height | 38 mm |
| product length | 108 mm |
| product weight | 0.2 kg |
| product width | 38 mm |
