20W Low Ku-Band BUC
20W Low Ku-Band BUC
20W Low Ku-Band BUC
20W Low Ku-Band BUC

BUC-100283

20W Low Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to + 5 dBm
input frequency band 1 Band 1: 950 - 1700 MHz
Band 2: 950 - 1450 MHz
LO stability Band 1: 12.05 GHz
Band 2: 11.80 GHz
output frequency band 1 Band 1: 13.00 - 13.50 GHz
Band 2: 12.75 - 13.50 GHz
output power rated 20W
reference type External Reference
Product Revision A
RF SPECIFICATIONS
gain stability (over temperature) ± 1.5 dB typ., ± 1.8 dB max
gain variation (over 40MHz) ± 0.5 dB
gain variation (over full band) ± 1.8 dB
IMD3 -26 dBc max. two tones 2 signal 5 MHz apart at P-LINEAR
input VSWR 1.5 : 1 max
Linear Gain 64 dB typ. 68 dB nominal
LO leakage -45 dBm max
noise figure 15 dB max.
noise power density RX -125 dBm/Hz max.
noise power density TX -80 dBm/Hz max.
output power plin +40 dBm min.
output power Psat +43 dBm min.
output VSWR 1.5 : 1 max.
phase noise 0.01kHz offset max -53 dBc/Hz max
phase noise 0.1kHz offset max -63 dBc/Hz max
phase noise 1kHz offset max -73 dBc/Hz max
phase noise 10kHz offset max -83 dBc/Hz max
phase noise 100kHz offset max -93 dBc/Hz max
phase noise 1000kHz offset max -113 dBc/Hz max
spectral regrowth -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate off set with 2dB back-off from rated output power)
spurious -50 dBc
ELECTRICAL SPECIFICATIONS
input power via IFL Cable
power consumption 98 W max
power requirements +15 to +60V DC
INTERFACE SPECIFICATIONS
Input connector N Connector
led indicators

Amplifier:

  • RED: Summary alarm
  • GREEN: All OK

L.O.

  • GREEN: All OK standard L.O. 12.05 GHz
  • GREEN blinking: All OK extended L.O. 11.80 GHz

10MHz

  • GREEN: External 10MHz reference
  • GREEN blinking: Internal 10MHz reference
  • RED: No 10MHz reference detected
mute Shut off the BUC if L.O. unlocked.
m and c interface RS-232 and RS-485, Ethernet
output connector WR-75G
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40°C to +55°C
temperature storage -55°C to +85°C
vibration and shock Complies with MIL-STD-810E

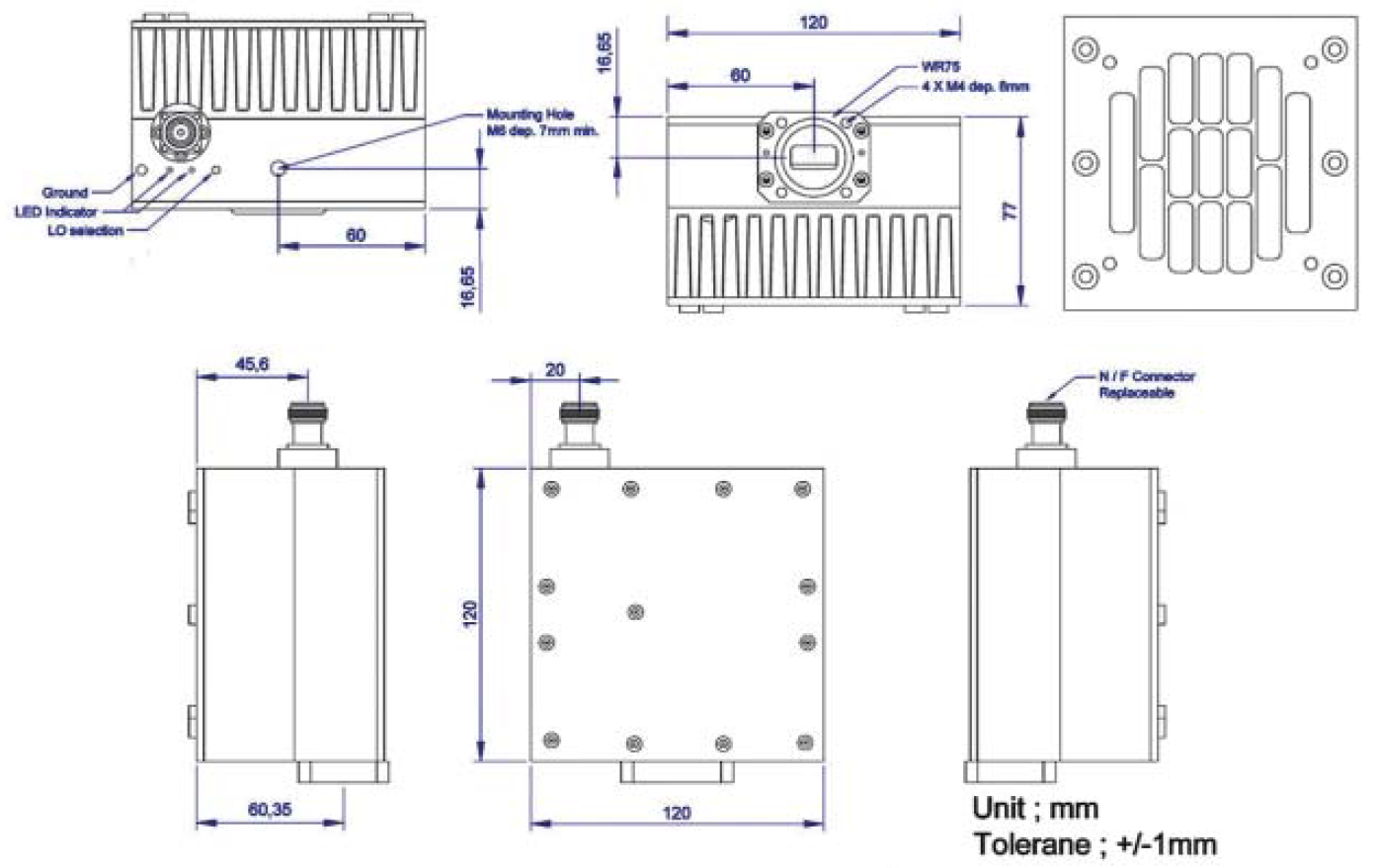

PHYSICAL SPECIFICATIONS
product height 77 mm
product length 120 mm
product weight 1.8 kg
product width 120 mm
