BUC-100482

100W C-Band Auto-Reference BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
external ref freq 10 MHz, - 5 to + 5 dBm
input frequency band 1 965 - 1265 MHz
LO frequency 1 5.76 GHz
LO stability 5 x 10-7
output frequency band 1 6.725 - 7.025 GHz
output power rated 100W
reference type Auto Reference
Product Revision A
RF SPECIFICATIONS
gain flatness (40MHz) ±0.5 dB
Gain Flatness (over full band) ±1.8 dB
Gain Flatness (over temperature) ±1.5 dB typ., ±1.8 dB max
IMD3 -26 dBc max (2 signal 5 MHz apart at P-LINEAR)
input VSWR 2 : 1 max
Linear Gain 70 dB nominal
LO leakage -45 dBm max
mute Shut off the BUC if L.O. unlocked.
noise figure 15 dB max.
noise power density Rx -157 dBm/Hz max.
noise power density Tx -66 dBm/Hz max.
output Plin +47.2 dBm min.
output power +50 dBm min.
output VSWR 2 : 1 max.
phase noise 0.01kHz offset max -55 dBc/Hz
phase noise 0.1kHz offset max -65 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
phase noise 1000kHz offset max -115 dBc/Hz
spectral regrowth -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power)
spurious -50 dBc max.
ELECTRICAL SPECIFICATIONS
input power via MS Connector
power consumption 399 W max
power requirements 80 to 240 VAC via MS Connector
INTERFACE SPECIFICATIONS
FSK Multiplexed on TX IFL, compatible with Comtech and Paradigm
Input connector N-Connector
m and c interface RS-485, RS-232 & Ethernet (HTTP and SNMPv2/SNMPv3)
output connector CPR-137G
status LED RED: Summary Alarm
GREEN: All OK
YELLOW: All OK standard L.O. 5.76 GHz
ENVIRONMENTAL SPECIFICATIONS
altitude Up to 23,000 feet
IP rating IP67
temperature operational -40 to +55°C
temperature storage -55 to +85°C
vibration and shock Complies with MIL-STD-810E

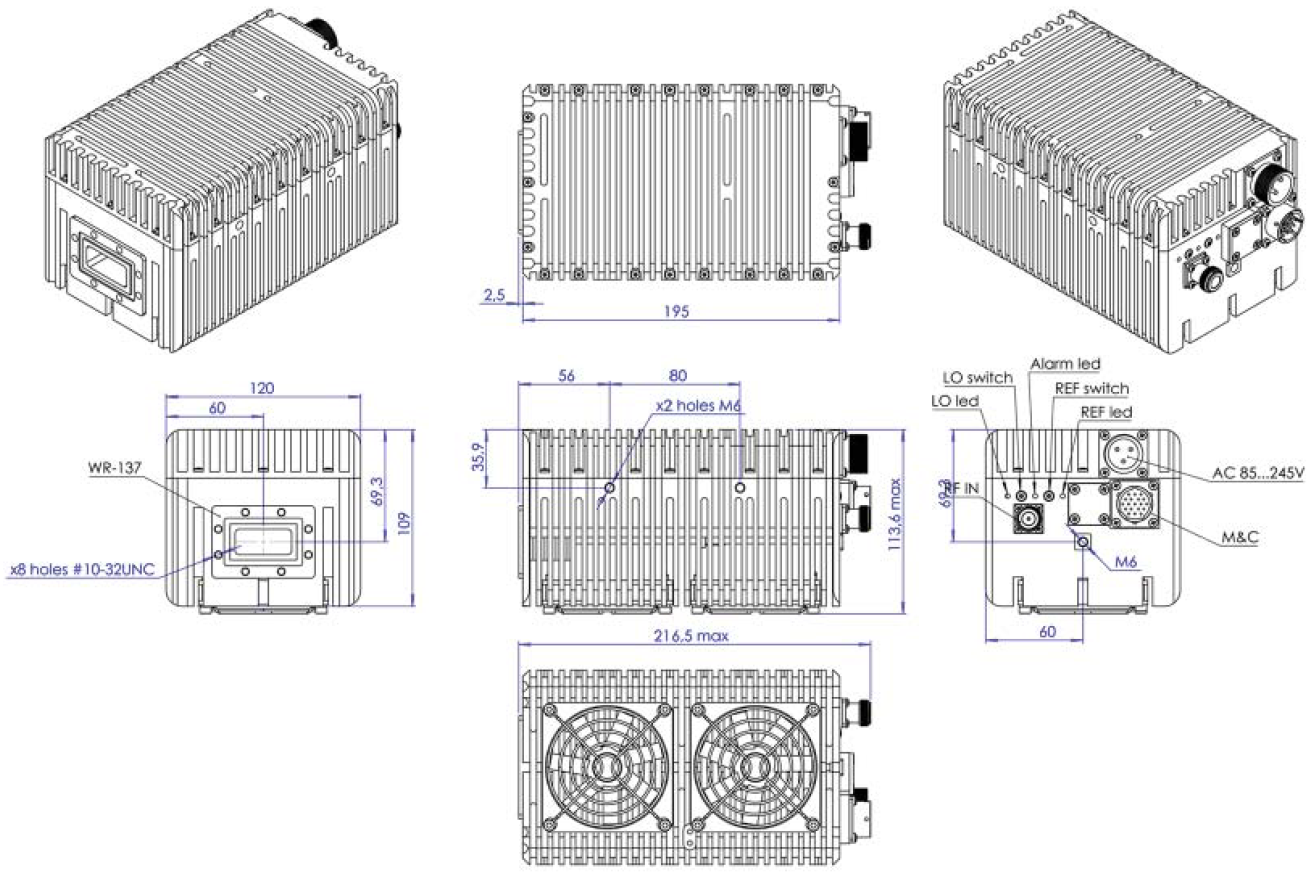

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 195 x 120 x 113.6 mm
product weight 3.36 kg
