BUC-100490

MEDIAN 80W Quad Ka Band GaN BUC (DC + EXT Ref + Standard M&C)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, -12 to +5 dBm
frequency sense Non-Inverting
input frequency band 1 950 - 1950 MHz (software selectable)
input frequency band 2 1000 - 2000 MHz (software selectable)
LO frequency 1 26.50 GHz or 26.55 GHz
LO frequency 2 27.25 GHz or 27.30 GHz
LO frequency 3 28.00 GHz or 28.05 GHz
LO frequency 4 29.00 GHz or 29.05 GHz
number of onboard LOs Quad-Band
output frequency band 1 27.5 - 28.5 GHz
output frequency band 2 28.25 - 29.25 GHz
output frequency band 3 29.0 - 30.0 GHz
output frequency band 4 30.0 - 31.0 GHz
output power rated 80W
reference type External Reference
Product Revision A
RF SPECIFICATIONS
AM-PM conversion <2°/dB @Plin
attenuator range 30 dB variable in 0.1 dB steps
gain flatness (54MHz) 2 dB p-p max for any sub-band
gain flatness (over full band) 4 dB p-p max for any sub-band
gain variation over temperature (open loop) 4 dB p-p max for any sub-band
gain variation over temperature (with AGC) 1 dB p-p max for any sub-band
input power detector range -35 to 0 dBm
input VSWR 1.5 : 1
Level Stability with ALC ± 0.5 dB
output noise power density Tx < -74 dBm/Hz
output Plin +46 dBm min.
output power detector range Rated power to -20 dB
output Psat +49 dBm typ.
output spurious in band -60 dBc
output spurious out of band -60 dBc, Complies with:
- ETSI EN 301 360
- ETSI EN 301 459
- MIL-STD 188-164C
output VSWR 1.3 : 1 max
phase noise 0.01kHz offset max -43 dBc/Hz
phase noise 0.1kHz offset max -63 dBc/Hz
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -93 dBc/Hz
phase noise 1000kHz offset max -103 dBc/Hz
small signal gain 70 dB min.
ELECTRICAL SPECIFICATIONS
current consumption Plin 480W
current consumption Psat 640W
power reading accuracy ± 1.0 dB max.
power requirements +48 VDC
power supply DC Powered
INTERFACE SPECIFICATIONS
IF connector N-Connector
m and c interface Ethernet (HTTP, Telnet, SNMPv2c) via RJ45 Connector
RS232, RS485 via MS-Type Connector
output interface WR28 UG Cover with Groove
ENVIRONMENTAL SPECIFICATIONS
altitude 10,000 ft (3,000 m) ASL
humidity 100% Condensing
temperature operational -40°C to +55°C

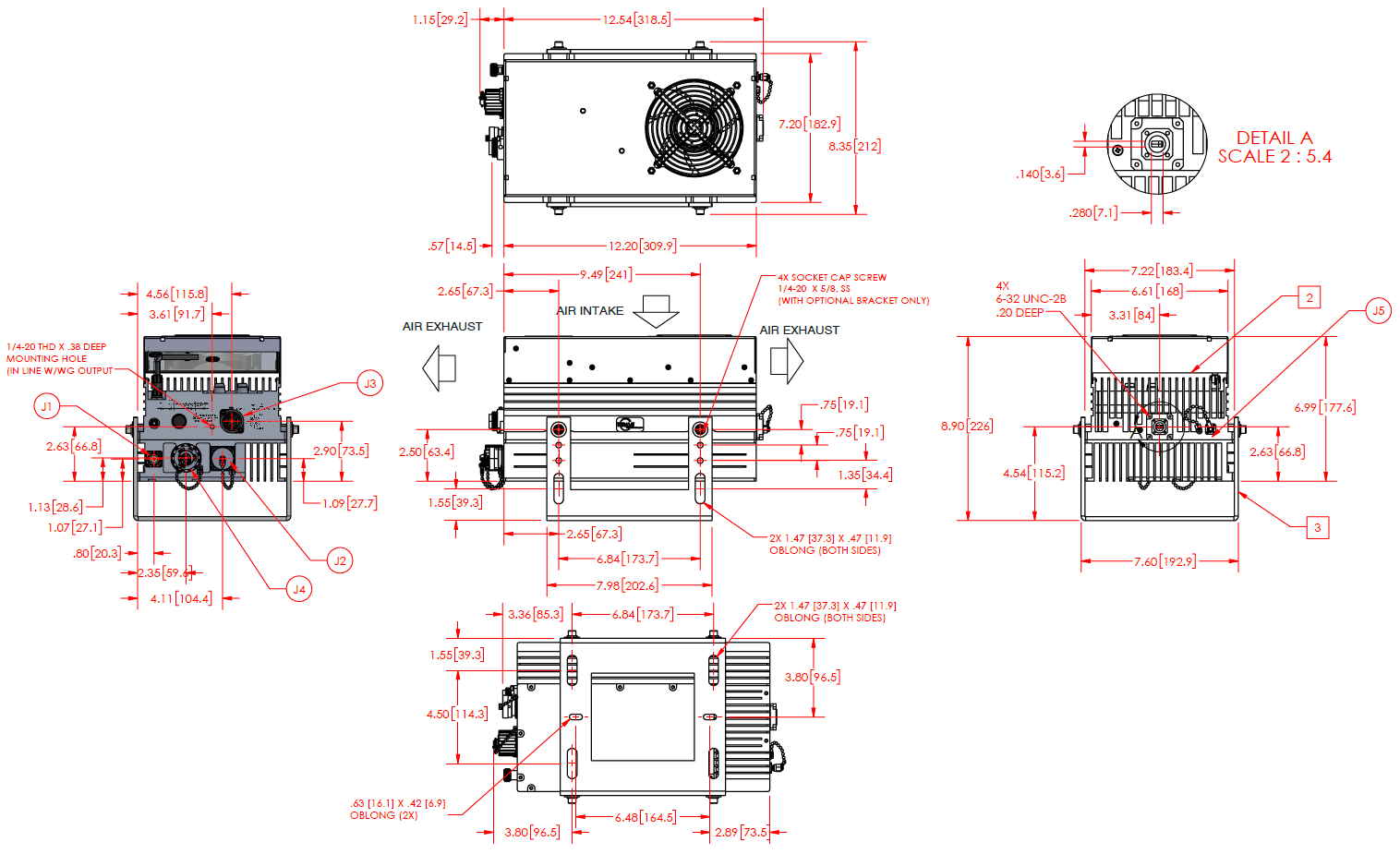

PHYSICAL SPECIFICATIONS
product height 183 mm
product length 310 mm
product weight 8.8 kg
product width 183 mm
