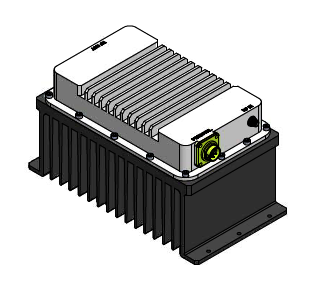

30W S-Band GaN BUC with Heatsink
30W S-Band GaN BUC with Heatsink
30W S-Band GaN BUC with Heatsink
30W S-Band GaN BUC with Heatsink
30W S-Band GaN BUC with Heatsink
30W S-Band GaN BUC with Heatsink

BUC-100491

30W S-Band GaN BUC with Heatsink

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band S-Band
number of onboard LOs Single-Band
output frequency band 1 2.0 - 2.6 GHz
output power rated 30W
Product Revision A
RF SPECIFICATIONS
2nd harmonics -20 dBc
3rd harmonics -18 dBc
Efficiency PAE 45%
gain 54 dB typ.
gain flatness (over full band) 2.5 dB p-p max
Impedance Input 50 Ohms
Impedance output 50 Ohms
Output 3rd Order Intercept Point +43 dBm typ.
Output Mismatch 10:1 Max.
Output Power at 1dB Compression Point +31 dBm typ.
output power psat 20W min.
VSWR 1.9 : 1 max
ELECTRICAL SPECIFICATIONS
Operating DC current 2.4A
Operating DC Voltage 27-30V DC (+28V DC)
INTERFACE SPECIFICATIONS
Bias connector Binder M16, 8 pins (Pinout 1-4: GND, 5-8: +28V)
input connector N-Connector
output connector N-Connector
ENVIRONMENTAL SPECIFICATIONS
altitude MIL-STD-810F Method 5004
humidity 95% Condensing
temperature operational -40°C to +85°C
temperature storage -55°C to +85°C

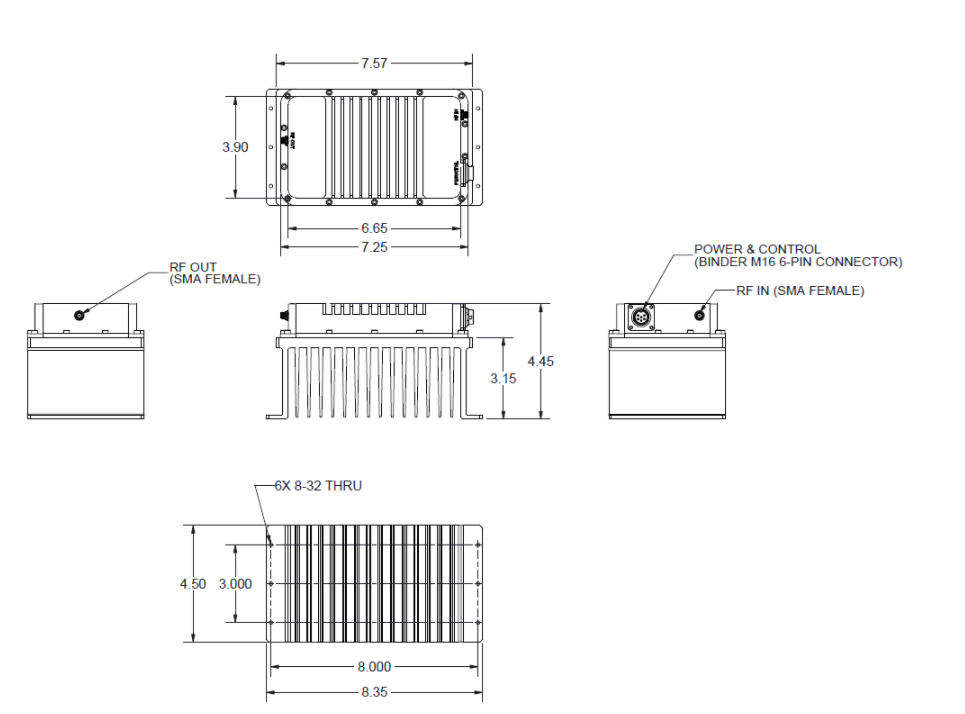

PHYSICAL SPECIFICATIONS
product height 4.45 inch
product length 8.35 inch
product width 4.50 inch
Weight 2.5kg
