BUC-100492

10W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1950 MHz
LO frequency 1 28.05 GHz
output frequency band 1 29.00 - 30.00 GHz
output power rated 10 W
Product Revision B
RF SPECIFICATIONS
gain adjust range 20 dB (Step: 0.25 dB)
gain flatness (over 1000MHz) 4 dB p-p
gain flatness (over 36MHz) 1 dB p-p
gain flatness (over 500MHz) 3 dB p-p
gain stability 3 dB p-p
IMD3 -25 dBc (3 dB from rated)
input VSWR 2 : 1
linear power plin 39 dBm min. (-26 dBc regrowth, 1.5 SR, commercial satellite)
38 dBm min. (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier)
37 dBm min. (≤-25 dBc IMD3)
output power psat 40 dBm min.
output spurious -55 dBc
output VSWR 1.3 : 1
phase noise 0.1kHz offset max -63 dBc/Hz
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -93 dBc/Hz
small signal gain 70 dB
ELECTRICAL SPECIFICATIONS
power connector PT02E-14-12P (4 pins for Power Supply)
power consumption plin 55 W
power consumption psat 70 W
power requirements +18 to +55 VDC
INTERFACE SPECIFICATIONS
IF connector N-Connector Female
LED alarm indicator Green On: Normal
Red On: PLL alarm
m and c connector PT02E-12-14P (8 pins for M&C)
m and c interface RS-422 & Ethernet
RF output connector WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
altitude 0 - 10,000 feet ASL
humidity 0 - 100% condensing
temperature operational -40 to +60°C

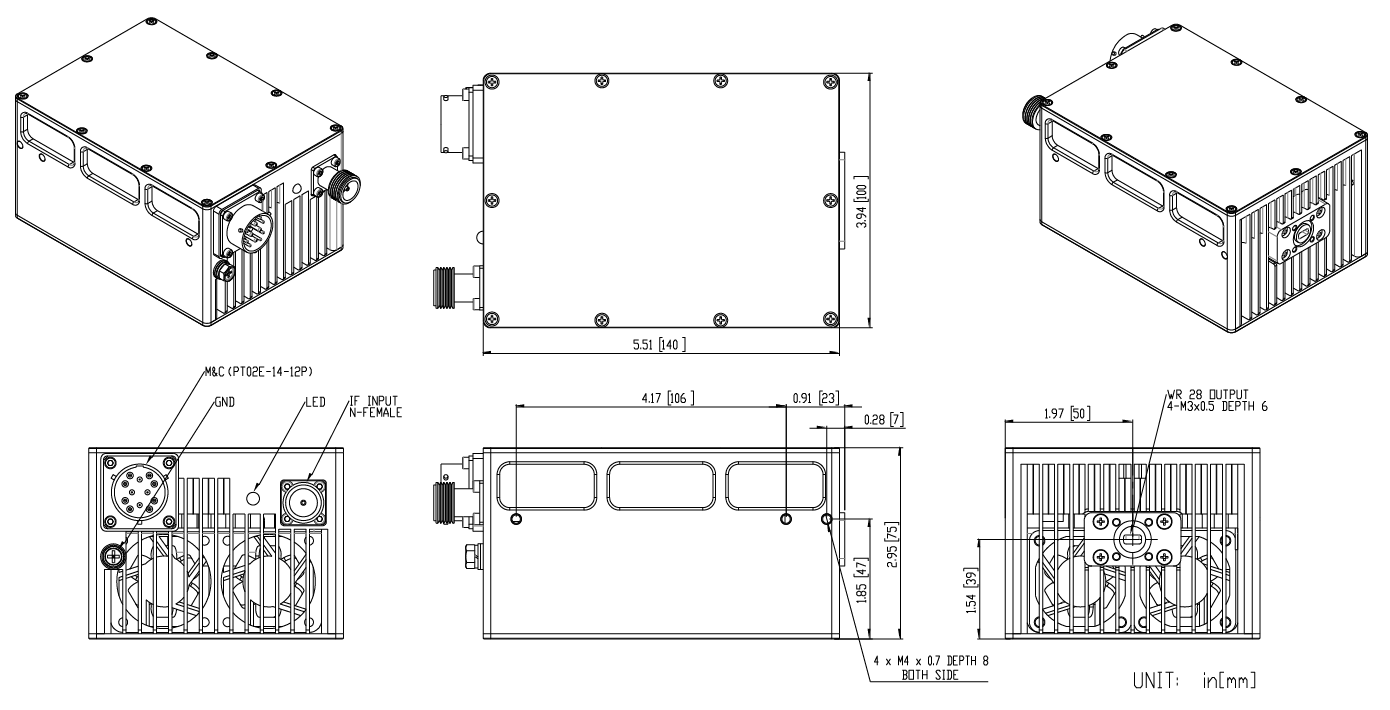

PHYSICAL SPECIFICATIONS
product height 0.075 m
product length 0.14 m
product weight 1.2 kg
product width 0.1 m
