8W Low Ku-Band BUC
8W Low Ku-Band BUC
8W Low Ku-Band BUC
8W Low Ku-Band BUC

BUC-100493

8W Low Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Low Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
LO frequency 11.80 GHz
operating IF frequency 950 - 1450 MHz
operating RF frequency 12.75 - 13.25 GHz
output power rated 8W
Product Revision A
RF SPECIFICATIONS
AM/PM conversion 1.0˚/dB max. at 3 dB output backoff
gain flatness ± 0.75 dB max. over 40 MHz
gain variation 500 MHz ± 1.5 dB
gain variation 50 MHz ± 0.5 dB
group delay Ripple 1 nsec point to point max.
imd3 -25 dBc max. two tones, 3 dB back off, 2 signal 5 MHz apart at PLIN
linear gain 55 dB (min), 60 dB (typ.)
noise power density -85 dBm/Hz in Tx
-155 dBm/Hz in Rx (10.7 - 11.7 GHz)
output power plin 37.8 dbm
output power psat 39 dBm
phase noise 0.01kHz offset max -55 dBc/Hz
phase noise 0.1kHz offset max -65 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
spectral regrowth -30 dBc at PLIN (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2 dB backoff from rated power)
spurious In-Band: ≤ -60 dBc max.
Out-Band: ≤ -60 dBc max.
ELECTRICAL SPECIFICATIONS
power consumption

35 W @ Psat

25 W @ Plin
power requirements +18 to +55V DC
INTERFACE SPECIFICATIONS
alarms PLL LOCK, HPA, MUTE, TX
IF connector F-type (75 Ohm)
m and c interface RS-232
RF connectors WR-75 (Waveguide Grooved)
stealth plin operation mode LED Shut-Off | Silenced fans
ENVIRONMENTAL SPECIFICATIONS
altitude 50,000 ft (15,240 m)
compliance Compliant with MIL-STD810E MIL-STD810F, Method 514.5 C-2 Transport
humidity 100% Condensing
IP rating IP67
over protection Voltage, Temperature, Current
shock 20 g peak, 11 msec, 1/2 sine
temperature operational -40°C to +70°C
temperature storage -60°C to +80°C

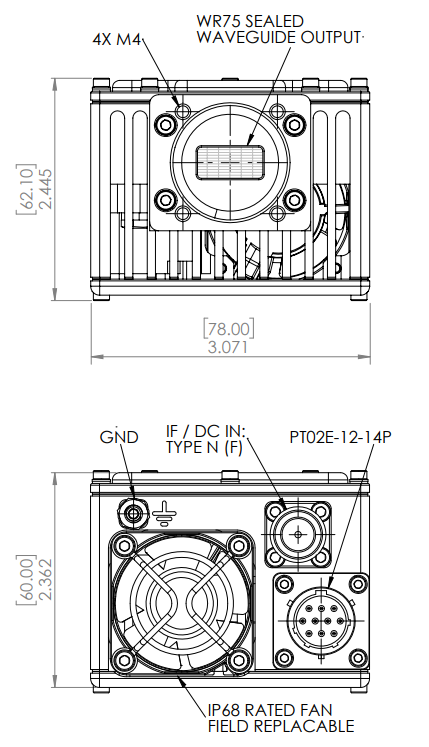

PHYSICAL SPECIFICATIONS
product height 59 mm
product length 137 mm
product weight 0.8 kg
product width 78 mm
