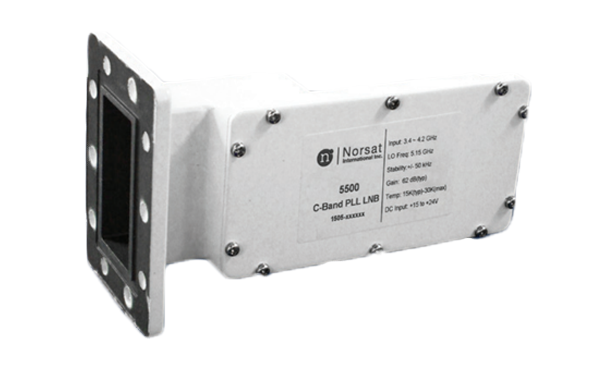

5000 C-Band Single-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.70 - 4.20 GHz
LO frequency 1 5.15 GHz
LO type PLL
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 62 dB
Gain Flatness (over full band) ≤ 5 dB p-p
input VSWR 2.5 : 1 max.
noise temperature 30K max., 15K typ.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -65 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -50 to +70°C

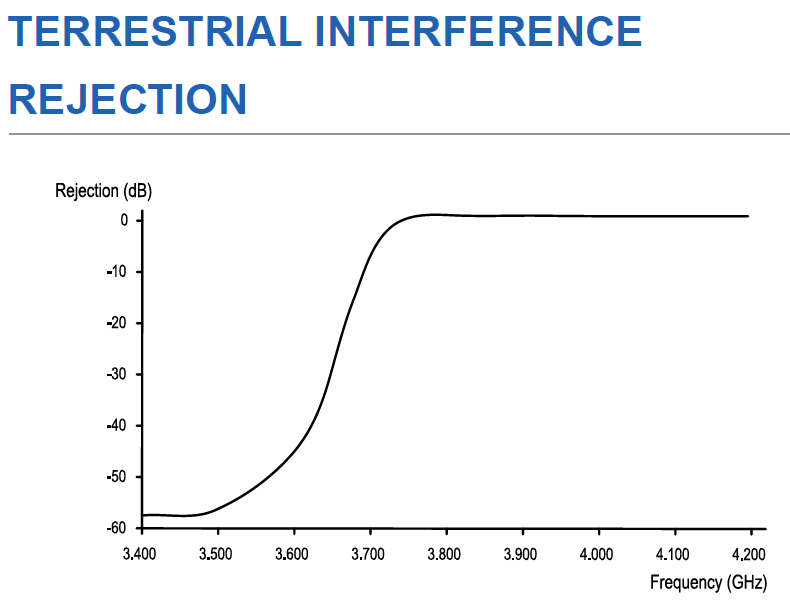

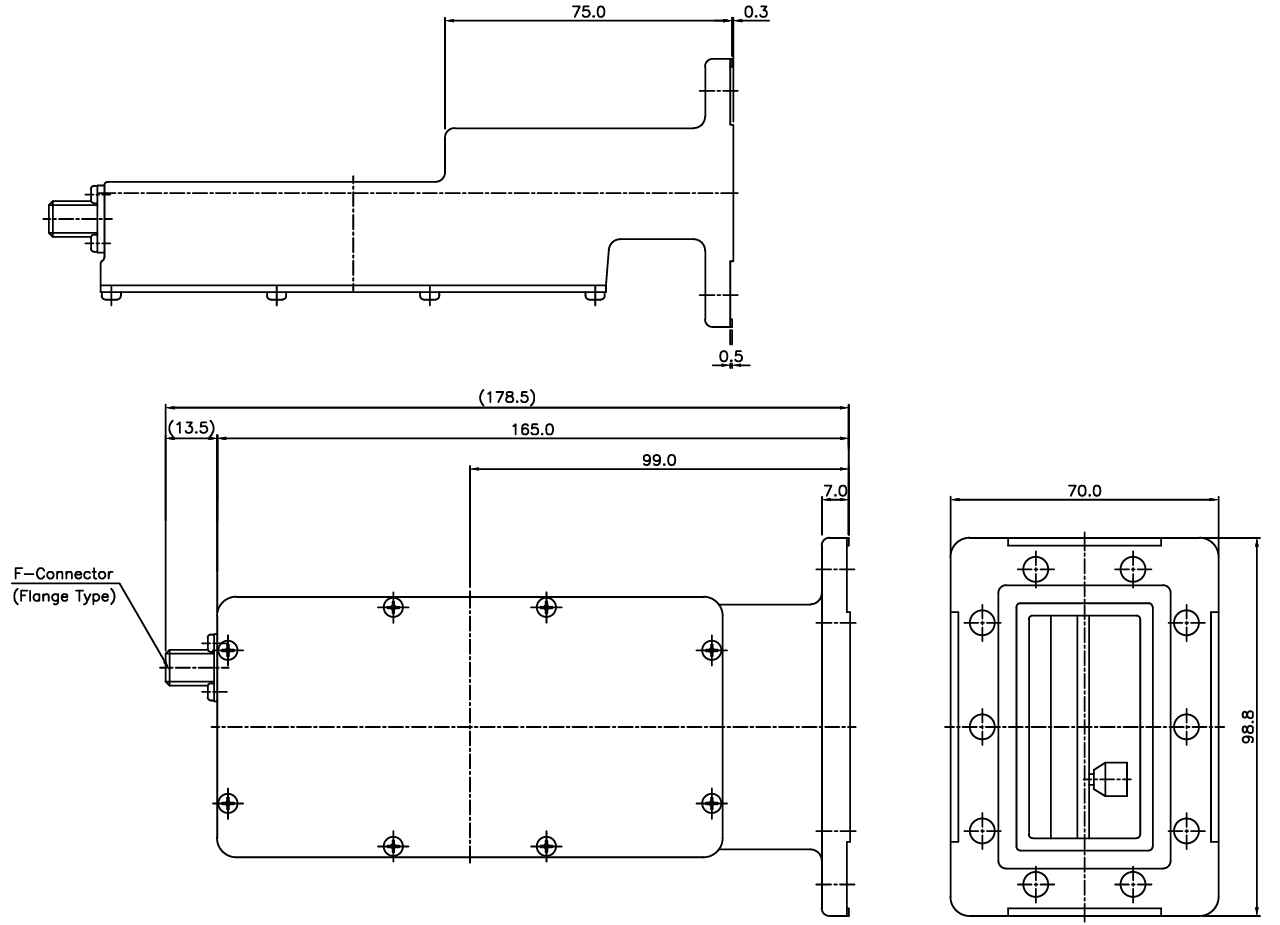

PHYSICAL SPECIFICATIONS
product height 79 mm
product length 190 mm
product weight 0.580 kg
product width 114 mm
