BPF-100095

C-Band 5G Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.

KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.80 - 4.20 GHz
number of onboard LOs Single-Band
rejection ≥ 0 dB min at 3.785 GHz to 3.800 GHz
≥ 30 dB min at 3.780 GHz to 3.785 GHz
≥ 60 dB min at 3.700 GHz to 3.780 GHz
≥ 70 dB min at 3.300 GHz to 3.700 GHz
Product Revision A

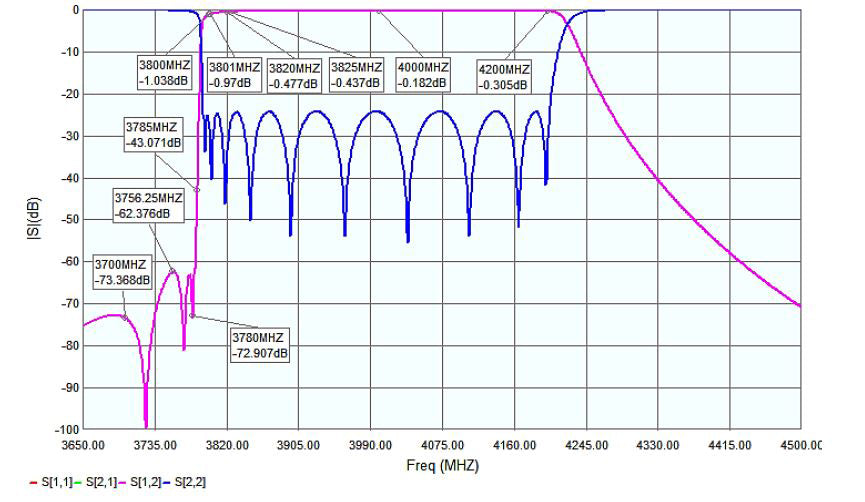

RF SPECIFICATIONS
group delay variation within ±0.5 MHz 3 ns max.
VSWR 1.44 : 1 dB max.
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229F
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
operating temperature -40°C to +70°C
storage temperature -40°C to +85°C

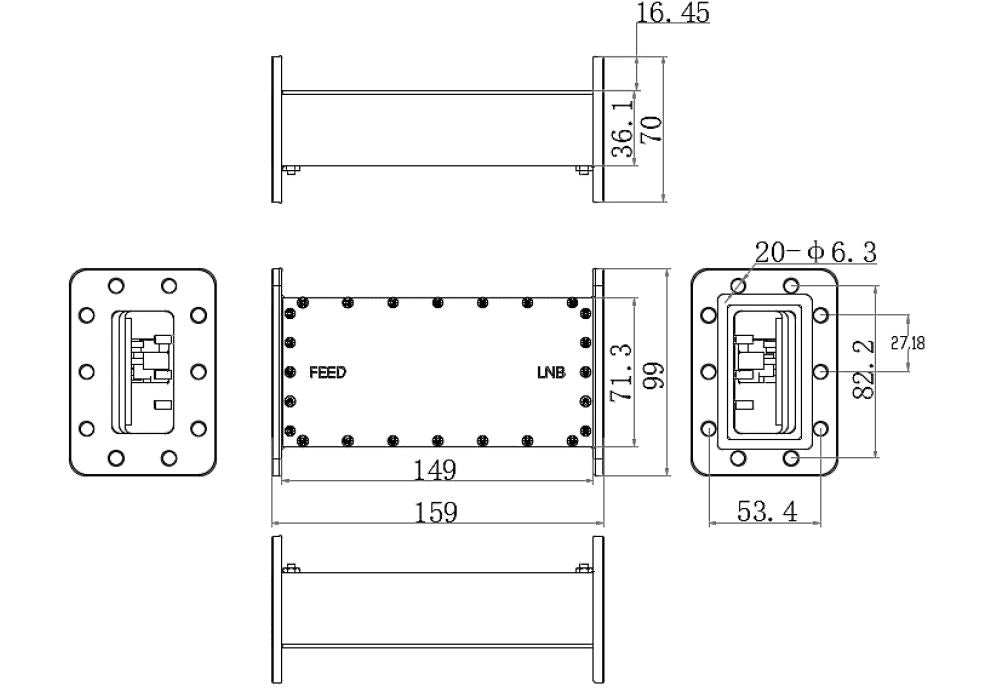

PHYSICAL SPECIFICATIONS
product height 70 mm
product length 159 mm
product weight 0.75 kg
product width 99 mm
