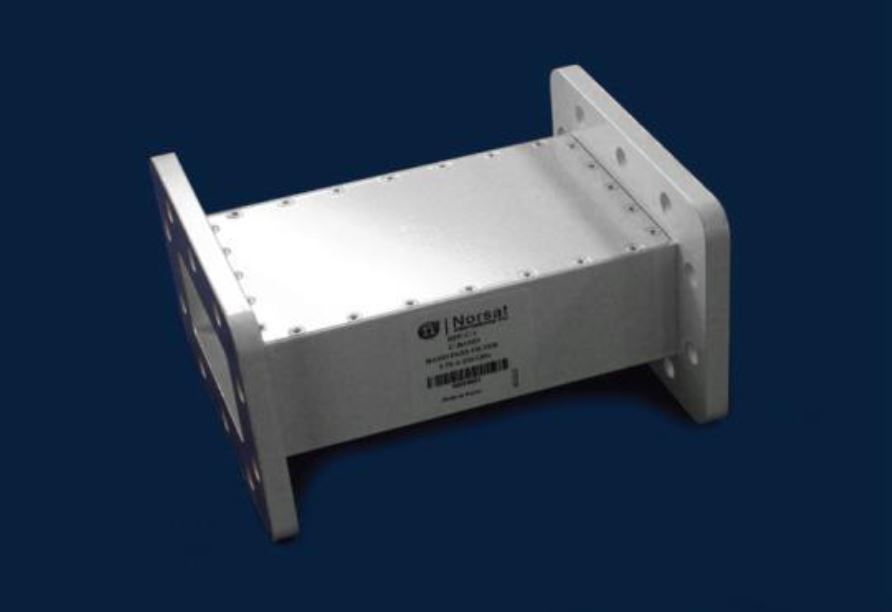

BPF-C-1-CN
C-Band 5G Bandpass Filter
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Or download now:
Something went wrong. Please try again.
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | C-Band |
| input frequency band 1 | 3.70 - 4.20 GHz |
| rejection | 55 dB min from 3.40 GHz to 3.50 GHz 55 dB min from 3.50 GHz to 3.60 GHz 70 dB min from 4.80 GHz to 8.00 GHz |
| Product Revision | C |
| RF SPECIFICATIONS | |
|---|---|
| VSWR | 1.4 : 1 max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | CPR 229G waveguide grooved |
| waveguide flange | CPR-229G (input), CPR-229F (output) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 70 mm |
| product length | 120 mm |
| product weight | < 0.75 kg |
| product width | 100 mm |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | - |
| Country of Origin | Made in China |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | - |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | - |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
