BPF-C-BW36-3830
C-Band 5G Bandpass Filter
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | C-Band |
| center frequency | 3830 MHz |
| group delay variation within 0.5MHz | 1 nsec max. |
| input frequency band 1 | 3.812 - 3.848 GHz |

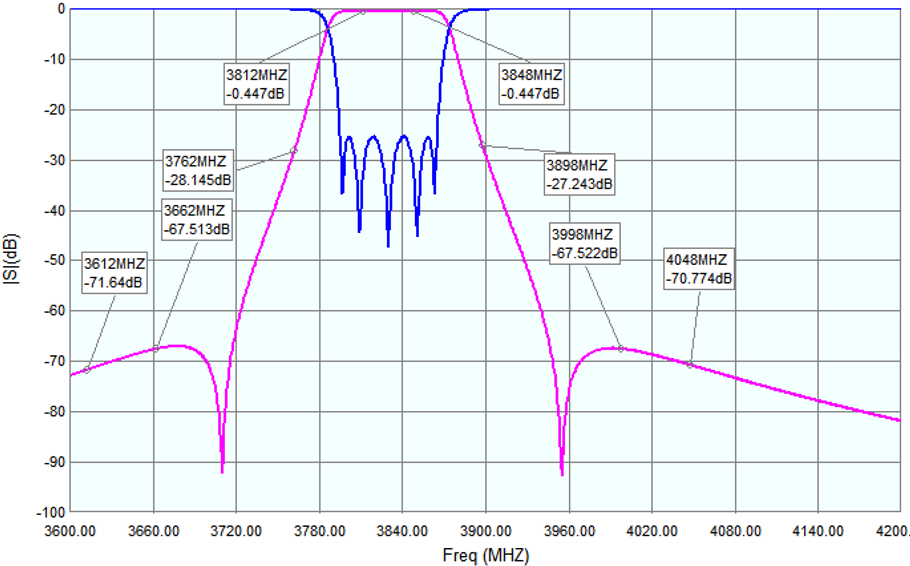

| rejection | ≥70dB @3000-3612MHz ≥60dB @3612-3662MHz ≥25dB @3662-3762MHz ≥25dB @3898-3998MHz ≥60dB @3998-4048MHz ≥70dB @4048-4800MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| VSWR | 1.3 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | CPR 229G waveguide grooved |
| RF output connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| barometric pressure | 55 KPa to 106 KPa |
| humidity | 5% to 95% |
| IP rating | IP67 |
| temperature operational | -20ºC to +60ºC |
| temperature storage | -40ºC to +85ºC |
| PHYSICAL SPECIFICATIONS | |
|---|---|

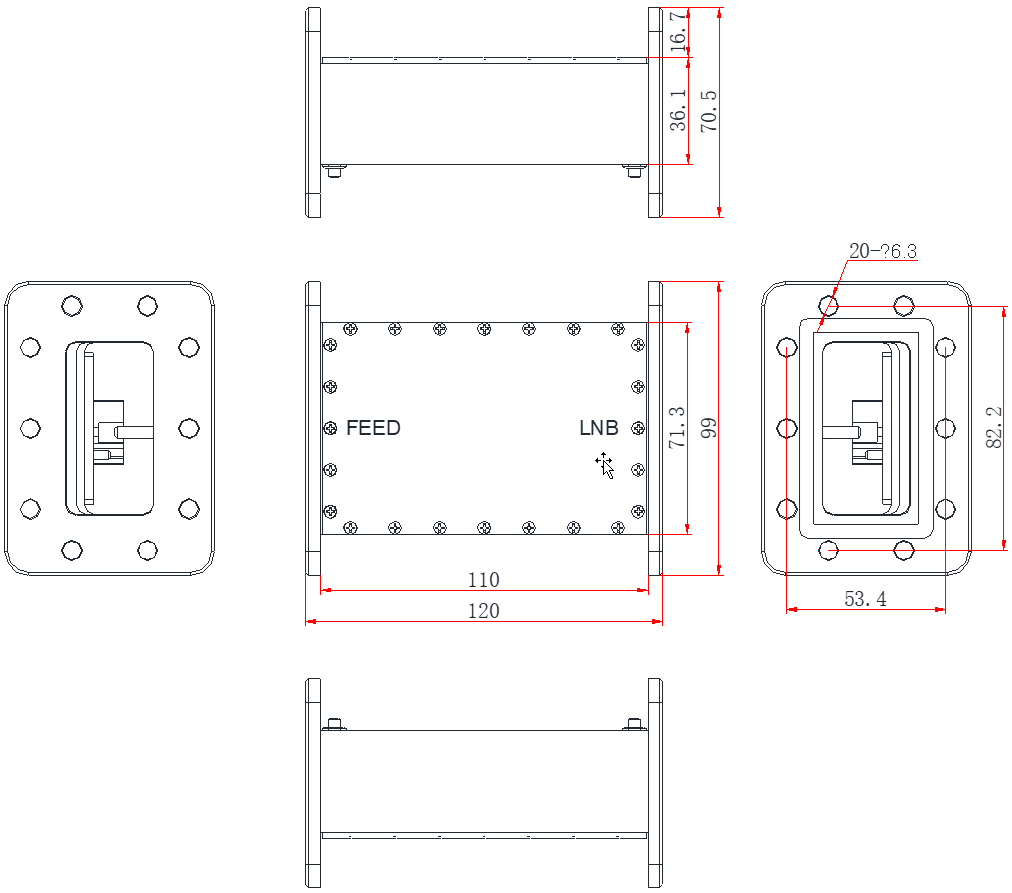

| product height | 71 mm |
| product length | 120 mm |
| product weight | 0.57 kg |
| product width | 99 mm |
