ACC-100900
C-Band Diplexer
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | C-Band |
| connector type | SMA (Female) |
| product family | Diplexer |
| rejection | 65 dB min @ F0 ± 300 MHz |

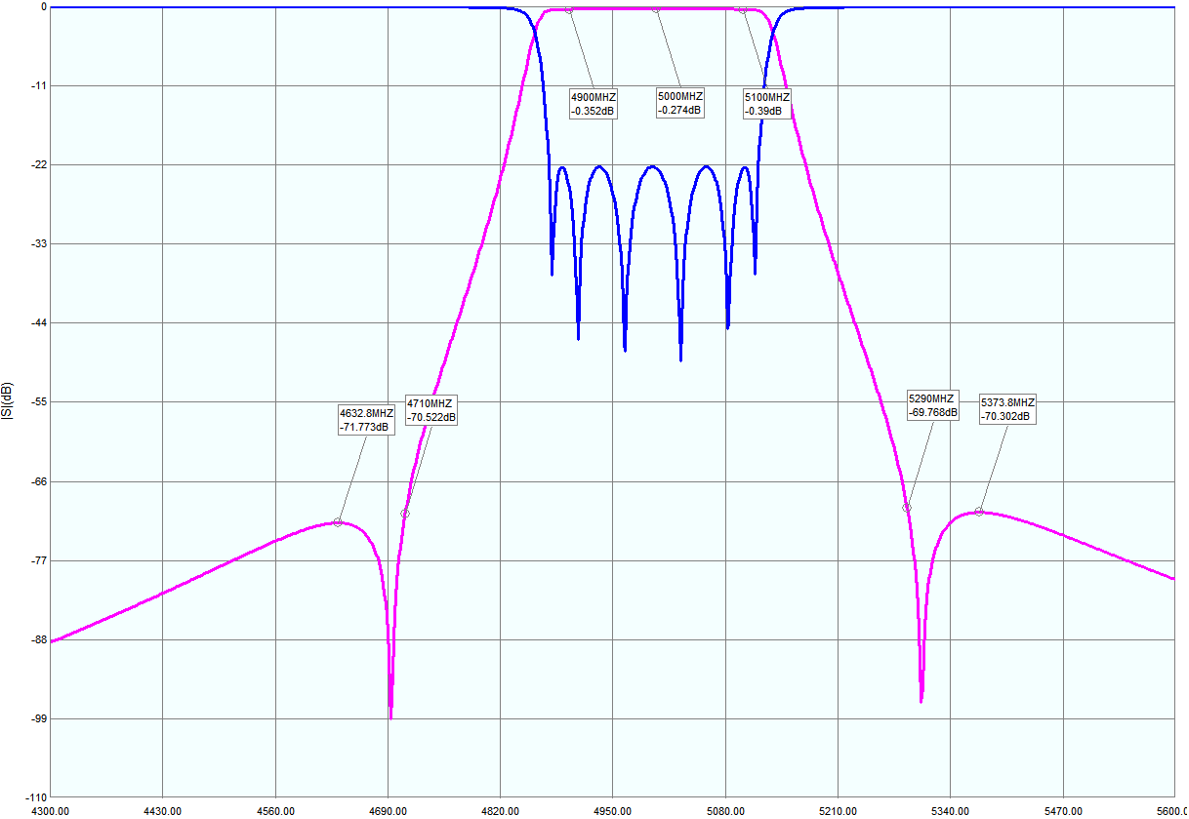

| Rx frequency | 4.9 - 5.1 GHz |

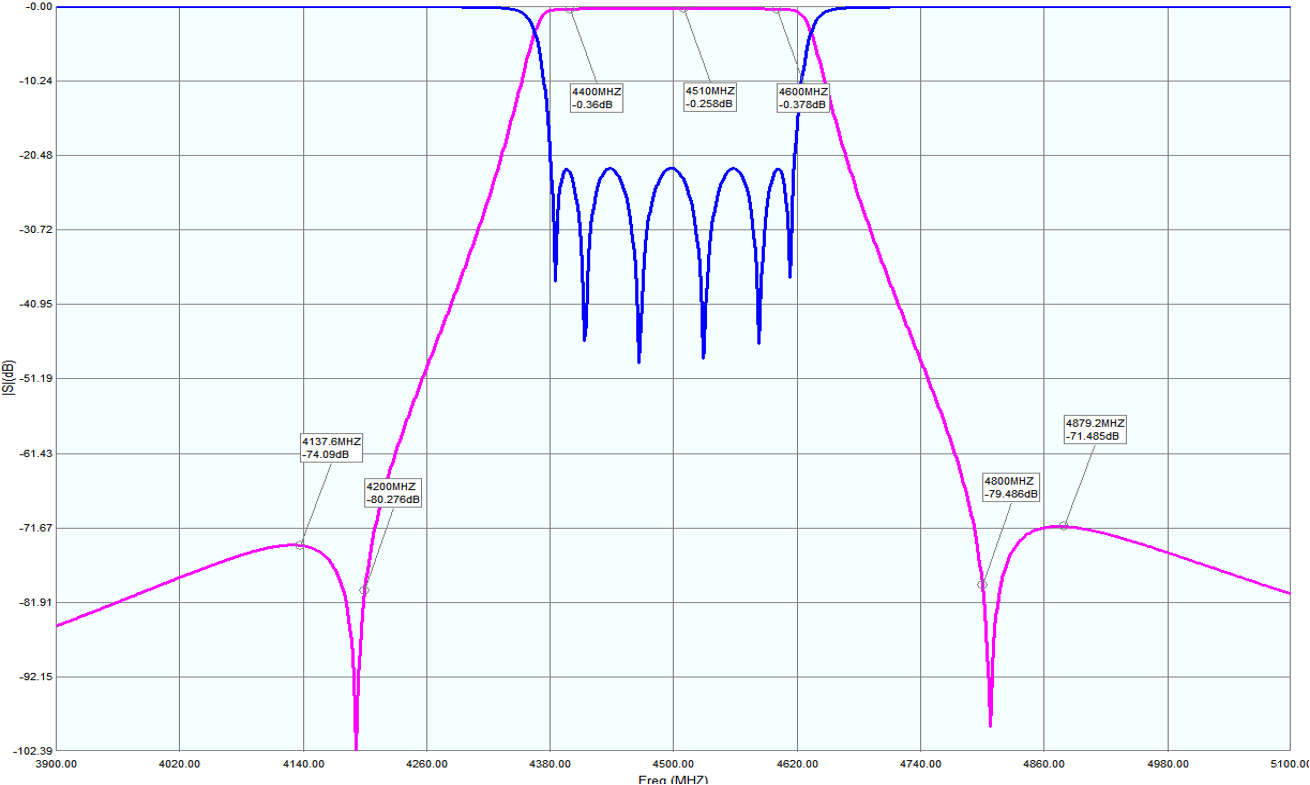

| Tx frequency | 4.4 - 4.6 GHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| input VSWR | ≤ 1.3 : 1 |
| insertion loss | ≤ 0.7 dB |
| output VSWR | ≤ 1:3 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| impedance | 50 Ω |
| power handling | 40 W (46 dBm) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| barometric pressure | 55 KPa - 106 KPa |
| indoor status | Indoor |
| relative humidity | 5% - 95% |
| temperature operational | -40 to +85°C |
| temperature storage | -40 to +95°C |

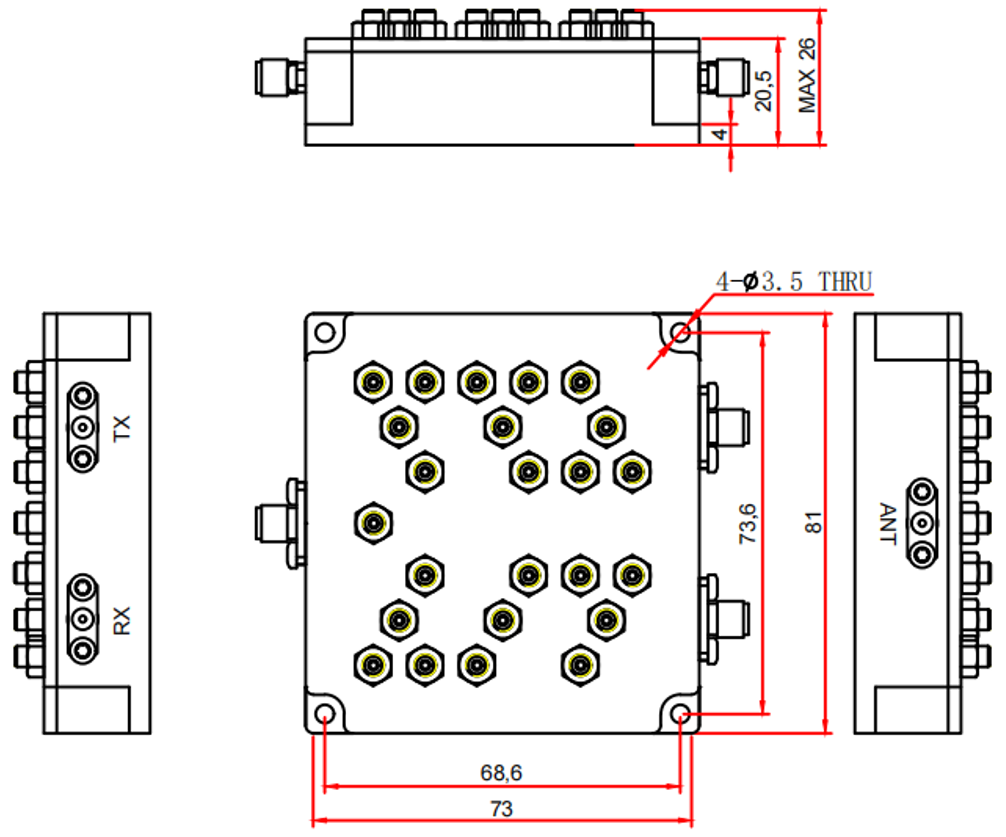

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 26 mm |
| product length | 81 mm |
| product weight | 0.60 kg |
| product width | 76 mm |
