EBPF-100014

C-Band Extreme Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



C-Band Extreme Bandpass Filter,3.95 to 4.2GHz,60dB rejection at 3.932GHz,25dB rejection at 4.23GHz

KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.95 - 4.20 GHz
rejection ≥60dB @2990-3932 Mhz
≥25dB @4230-4990 Mhz
Product Revision C
RF SPECIFICATIONS
group delay variation ≤3ns within ± 0.5 MHz of any frequency within the passband
insertion loss in band 1.4db max.
VSWR 1.4: 1 max.
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229F
ENVIRONMENTAL SPECIFICATIONS
Barometric pressure 55 KPa -106KPa
humidity 5% - 95%
IP rating IP67
operating temperature -40°C to +70°C
storage temperature -40°C to +85°C

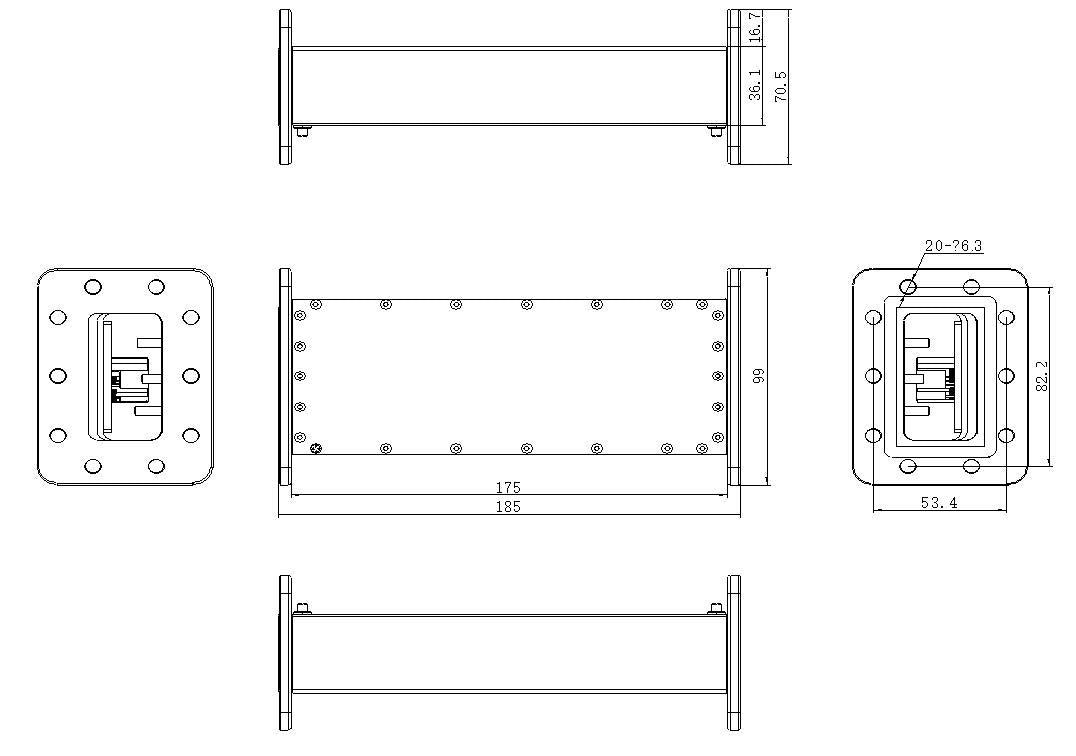

PHYSICAL SPECIFICATIONS
color White
product height 70 mm
product length 159 mm
product weight 1.0 kg
product width 99 mm
