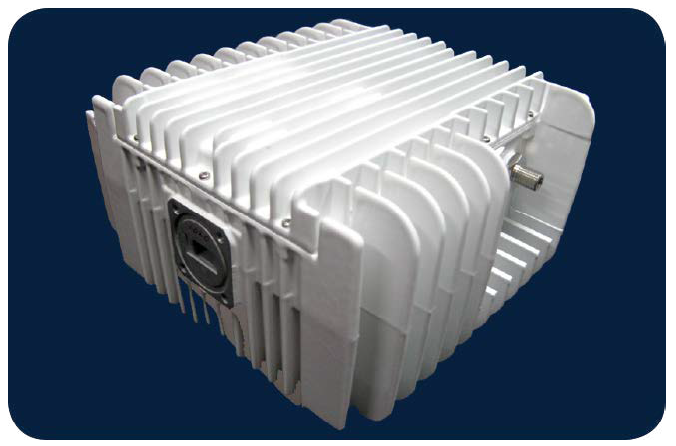

Name: ELEMENT 8W Ku-Band MINIBUC
Brand: Norsat International Inc.
SKU: BUC-ELMTKU008-SF
Availability: InStock

BUC-ELMTKU008-SF

ELEMENT 8W Ku-Band MINIBUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51854753726831,"title":"S: 14.00 - 14.50 GHz \/ F-Connector","option1":"S: 14.00 - 14.50 GHz","option2":"F-Connector","option3":null,"sku":"BUC-ELMTKU008-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - S: 14.00 - 14.50 GHz \/ F-Connector","public_title":"S: 14.00 - 14.50 GHz \/ F-Connector","options":["S: 14.00 - 14.50 GHz","F-Connector"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51854753759599,"title":"S: 14.00 - 14.50 GHz \/ N-Connector","option1":"S: 14.00 - 14.50 GHz","option2":"N-Connector","option3":null,"sku":"BUC-ELMTKU008-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - S: 14.00 - 14.50 GHz \/ N-Connector","public_title":"S: 14.00 - 14.50 GHz \/ N-Connector","options":["S: 14.00 - 14.50 GHz","N-Connector"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51854753792367,"title":"E: 13.75 - 14.50 GHz \/ F-Connector","option1":"E: 13.75 - 14.50 GHz","option2":"F-Connector","option3":null,"sku":"BUC-ELMTKU008-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - E: 13.75 - 14.50 GHz \/ F-Connector","public_title":"E: 13.75 - 14.50 GHz \/ F-Connector","options":["E: 13.75 - 14.50 GHz","F-Connector"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51854753825135,"title":"E: 13.75 - 14.50 GHz \/ N-Connector","option1":"E: 13.75 - 14.50 GHz","option2":"N-Connector","option3":null,"sku":"BUC-ELMTKU008-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - E: 13.75 - 14.50 GHz \/ N-Connector","public_title":"E: 13.75 - 14.50 GHz \/ N-Connector","options":["E: 13.75 - 14.50 GHz","N-Connector"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1450 MHz
LO frequency 1	13.05 GHz
output frequency band 1	14.00 - 14.50 GHz
output power rated	8W
Product Revision	1.0

RF SPECIFICATIONS
AM PM conversion	2°/dB (up to 2 dB below rated Output Power)
gain flatness (54MHz)	≤ 1.5 dB p-p
Gain Flatness (over 24hrs)	±0.5 dB max. at constant temperature
Gain Flatness (over full band)	≤ 4 dB p-p max.
Gain Flatness (over temperature)	≤ 4 dB p-p over operating range
input VSWR	2.0 : 1 max.
intermodulation	-25 dBc @ Plinear (with 2 equal carriers at 3dB total power backoff from rated power)
linear gain typ	60 dB
max input no damage	13 dBm
output noise power density Rx	-156 dBm/Hz
output noise power density Tx	-90 dBm/Hz
output P1dB	39 dBm min.
output spurious in band	-60 dBc
output spurious out of band	-50 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset typ	-65 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 100kHz offset typ	-95 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
spectral regrowth	-26 dBc typ. (at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK)

ELECTRICAL SPECIFICATIONS
input power	via IFL
power consumption	75W max.
power requirements	+18 to +60V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
output connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	Up to 100%
temperature operational	-40°C to +55°C

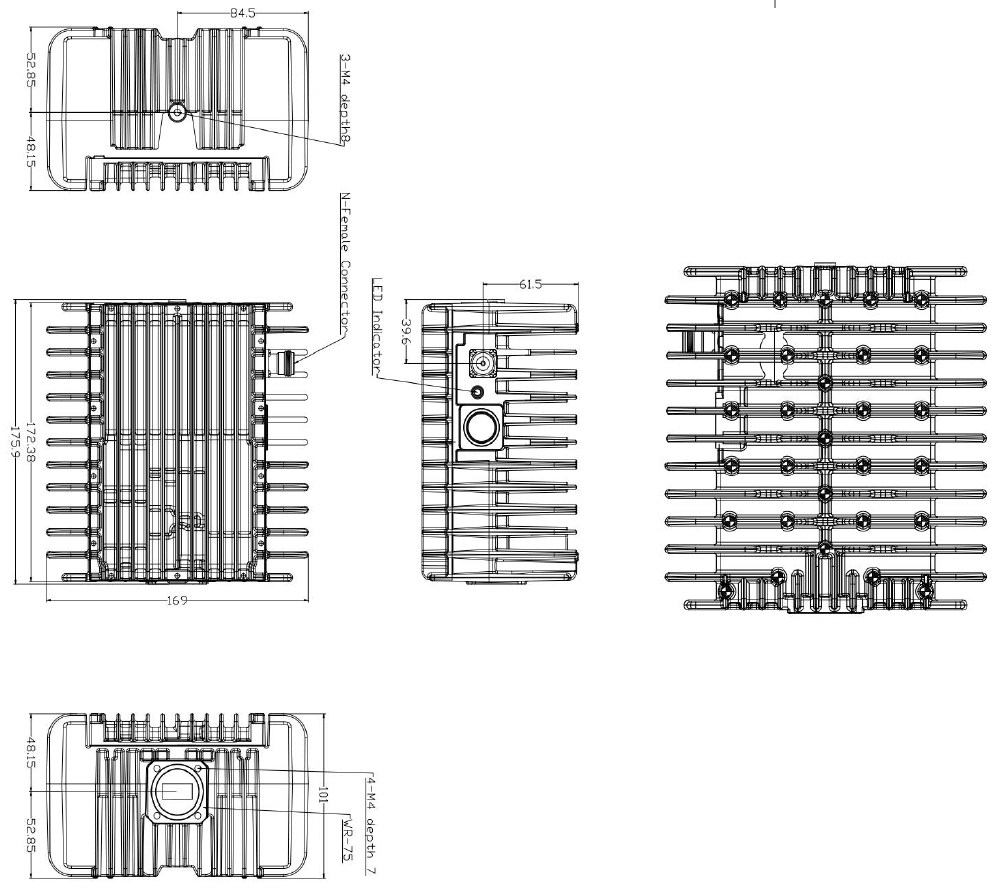

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws (4 pcs), Gasket (1 pc)
product height	101 mm
product length	175.9 mm
product weight	2.7 kg
product width	169 mm

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1450 MHz
LO frequency 1	13.05 GHz
output frequency band 1	14.00 - 14.50 GHz
output power rated	8W
Product Revision	0.0

RF SPECIFICATIONS
AM PM conversion	2°/dB (up to 2 dB below rated Output Power)
gain flatness (54MHz)	≤ 1.5 dB p-p
Gain Flatness (over 24hrs)	±0.5 dB max. at constant temperature
Gain Flatness (over full band)	≤ 4 dB p-p max.
Gain Flatness (over temperature)	≤ 4 dB p-p over operating range
input VSWR	2.0 : 1 max.
intermodulation	-25 dBc @ Plinear (with 2 equal carriers at 3dB total power backoff from rated power)
linear gain typ	60 dB
max input no damage	13 dBm
output noise power density Rx	-156 dBm/Hz
output noise power density Tx	-90 dBm/Hz
output P1dB	39 dBm min.
output spurious in band	-60 dBc
output spurious out of band	-50 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset typ	-65 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 100kHz offset typ	-95 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
spectral regrowth	-26 dBc typ. (at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK)

ELECTRICAL SPECIFICATIONS
input power	via IFL
power consumption	75W max.
power requirements	+18 to +60V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
output connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	Up to 100%
temperature operational	-40°C to +55°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws (4 pcs), Gasket (1 pc)
product height	101 mm
product length	175.9 mm
product weight	2.7 kg
product width	169 mm

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1700 MHz
LO frequency 1	12.80 GHz
output frequency band 1	13.75 - 14.50 GHz
output power rated	8W
Product Revision	1.0

RF SPECIFICATIONS
AM PM conversion	2°/dB (up to 2 dB below rated Output Power)
gain flatness (54MHz)	≤ 1.5 dB p-p
Gain Flatness (over 24hrs)	±0.5 dB max. at constant temperature
Gain Flatness (over full band)	≤ 4 dB p-p max.
Gain Flatness (over temperature)	≤ 4 dB p-p over operating range
input VSWR	2.0 : 1 max.
intermodulation	-25 dBc @ Plinear (with 2 equal carriers at 3dB total power backoff from rated power)
linear gain typ	60 dB
max input no damage	13 dBm
output noise power density Rx	-156 dBm/Hz
output noise power density Tx	-90 dBm/Hz
output P1dB	39 dBm min.
output spurious in band	-60 dBc
output spurious out of band	-50 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset typ	-65 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 100kHz offset typ	-95 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
spectral regrowth	-26 dBc typ. (at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK)

ELECTRICAL SPECIFICATIONS
input power	via IFL
power consumption	75W max.
power requirements	+18 to +60V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
output connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	Up to 100%
temperature operational	-40°C to +55°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws (4 pcs), Gasket (1 pc)
product height	101 mm
product length	175.9 mm
product weight	2.7 kg
product width	169 mm

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1700 MHz
LO frequency 1	12.80 GHz
output frequency band 1	13.75 - 14.50 GHz
output power rated	8W
Product Revision	0.0

RF SPECIFICATIONS
AM PM conversion	2°/dB (up to 2 dB below rated Output Power)
gain flatness (54MHz)	≤ 1.5 dB p-p
Gain Flatness (over 24hrs)	±0.5 dB max. at constant temperature
Gain Flatness (over full band)	≤ 4 dB p-p max.
Gain Flatness (over temperature)	≤ 4 dB p-p over operating range
input VSWR	2.0 : 1 max.
intermodulation	-25 dBc @ Plinear (with 2 equal carriers at 3dB total power backoff from rated power)
linear gain typ	60 dB
max input no damage	13 dBm
output noise power density Rx	-156 dBm/Hz
output noise power density Tx	-90 dBm/Hz
output P1dB	39 dBm min.
output spurious in band	-60 dBc
output spurious out of band	-50 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset typ	-65 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 100kHz offset typ	-95 dBc/Hz
phase noise 10kHz offset typ	-85 dBc/Hz
phase noise 1kHz offset typ	-75 dBc/Hz
spectral regrowth	-26 dBc typ. (at 2db below rated output power at 1.0x symbol rate offset for OQPSK or QPSK)

ELECTRICAL SPECIFICATIONS
input power	via IFL
power consumption	75W max.
power requirements	+18 to +60V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
output connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	Up to 100%
temperature operational	-40°C to +55°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws (4 pcs), Gasket (1 pc)
product height	101 mm
product length	175.9 mm
product weight	2.7 kg
product width	169 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8543700000
Country of Origin	Made in the Republic of Korea
Ex Works	Korea
ECCN Number	EAR99
Warranty	-
Unit Package Dimensions	-
Unit Package Weight	4.0 kg
Total Aluminium Content	-
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
