ELMT-100030

ELEMENT 6W Ku-Band BUC, Painting: FS33303, Matte

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 6W
Product Revision A
RF SPECIFICATIONS
Gain Flatness (over any 54MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Flatness (over temperature) ≤ 4 dB p-p
input VSWR 2.0 : 1 max.
linear gain typ 60 dB
output P1dB 37.8 dBm min.
output spurious in band -60 dBc
output spurious out of band -50 dBc
output VSWR 2.0 : 1 max.
phase noise 0.1kHz typ -65 dBc/Hz
phase noise 1kHz typ -75 dBc/Hz
phase noise 10kHz typ -85 dBc/Hz
phase noise 100kHz typ -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 48W max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF output connector WR75G
ENVIRONMENTAL SPECIFICATIONS
humidity up to 100%
temperature operational -40°C to +55°C

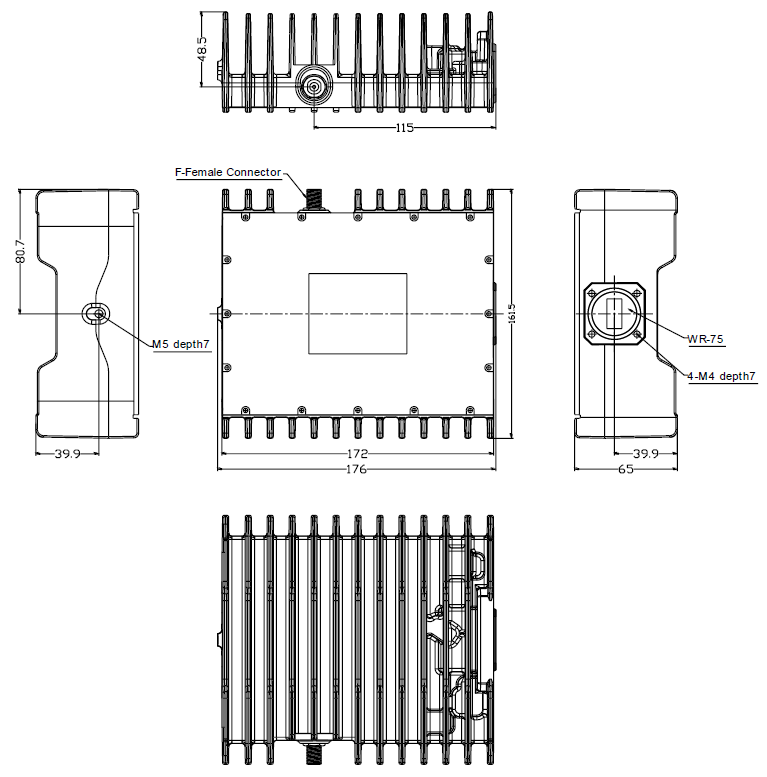

PHYSICAL SPECIFICATIONS
Color FS 33303, Matte
enclosed accessories Screws, Gasket
product height 65.0 mm
product length 176.1 mm
product weight 1.8 kg
product width 161.5 mm
