10W Low Ku-Band BUC
10W Low Ku-Band BUC
10W Low Ku-Band BUC
10W Low Ku-Band BUC

ELMT-100041

10W Low Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1450 MHz
LO frequency 1 11.80 GHz
output frequency band 1 12.75 - 13.25 GHz
output power rated 10W
Product Revision A
RF SPECIFICATIONS
gain flatness (54MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4.0 dB p-p
Gain Flatness (over temperature) ≤ 4.0 dB p-p
input VSWR 2.0 : 1 max.
linear gain typ 65 dB
output P1dB +40 dBm typ. @ over temperature
output spurious in band ≤ -60 dBc
output spurious out of band ≤ -50 dBc
output VSWR 2.0 : 1 max.
phase noise 0.1kHz offset typ -65 dBc/Hz
phase noise 1kHz offset typ -75 dBc/Hz
phase noise 10kHz offset typ -85 dBc/Hz
phase noise 100kHz offset typ -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power via IFL
power consumption 75W max.
power requirements +18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF output connector WR75G
M and C SPECIFICATIONS
mute control Lock detector shuts off Tx in case of LO unlocked
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100%
IP rating IP 67
temperature operational -40°C to +55°C

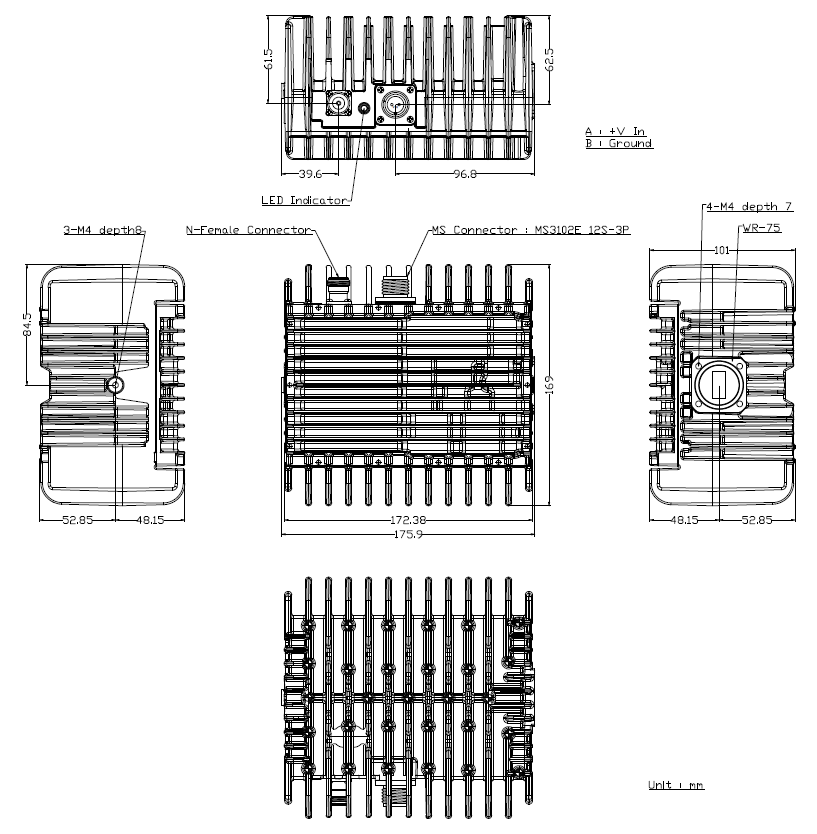

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
product height 101 mm
product length 175.9 mm
product weight 2.7 kg
product width 169 mm
