ES-100050

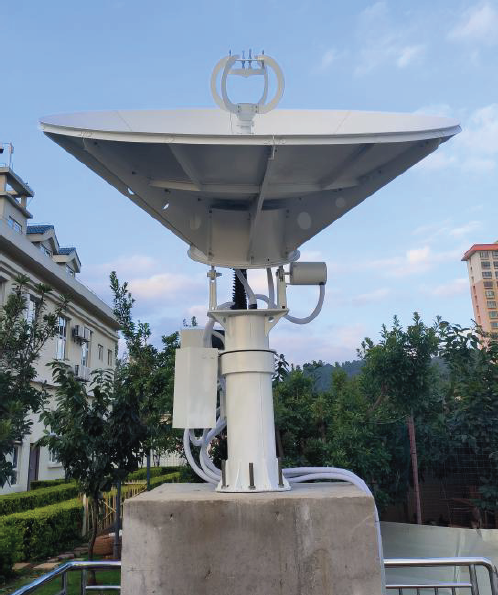

ANCHOR 2.4 m C-Band Earth Station Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



FEATURES
• Meets or exceeds CCIR 580 and Intelsat requirements
• Meets Intelsat, Asiasat, Chinasat network access Requirement
• The efficiency of single band communication antenna can reach to 70%
• High gain, Low sidelobe, High G/T rate
• Hot-dip zinc processed steel parts, with strong corrosion resistant ability

KEY SPECIFICATIONS
antenna aperture 2.4m
antenna category Earth Station
band C-Band
Product Revision B
ANTENNA SPECIFICATIONS
90% Peaks under Following envelop 29 - 25 logθ(1°≤θ<20°)
antenna drive mode Manual/Motorized
antenna type Ring Focus/Center Feed
axial ratio Tx: ≤1.3 dB
Rx: ≤1.3 dB
cross polarization isolation ≥ 30 dB on axis
number of ports 2-ports
polarization Circular
sidelobe ≤-14dB (First Sidelobe)
RF SPECIFICATIONS
-3dB rx beamwidth 2.3°
-3dB tx beamwidth 1.41°
noise temperature elevation 10° 50.7 K
noise temperature elevation 20° 44.8 K
noise temperature elevation 40° 40.6 K
port isolation Rx-Tx 85 dB
power capacity 2000 W
Rx feed insertion loss ≤0.2 dB
Rx frequency 3.40 - 4.20 GHz
rx gain 37.73 @ 3.8GHz
Rx VSWR 1.25 : 1
Tx feed insertion loss ≤0.2 dB
Tx frequency 5.850 ‐ 6.725 GHz
tx gain 41.98 @ 6.2GHz
Tx VSWR 1.25 : 1
INTERFACE SPECIFICATIONS
Rx interface CPR-229G
Tx interface CPR-137G
ENVIRONMENTAL SPECIFICATIONS
humidity 100%
ice load Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal 0.3 G
seismic capacity vertical 0.1 G
temperature operational -30°C to +50°C
windspeed operational 72 km/h
windspeed survival 216 km/h
wind load operational 72 km/h

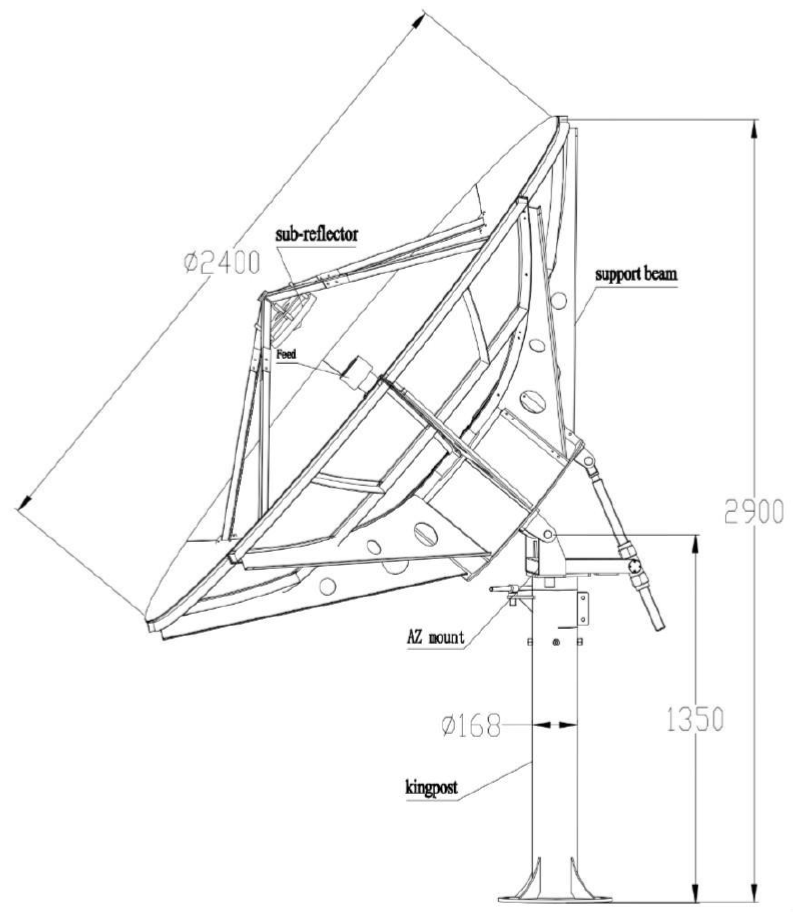

PHYSICAL SPECIFICATIONS
loading capacity 8 sets for one 20ft container; 16 sets for one 40ft container
motion range AZ 5° - 355°(continuous);
motion range EL 5° - 90°
motion range POL ±90°
structure EL over AZ
surface accuracy RMS ≤0.5 mm
