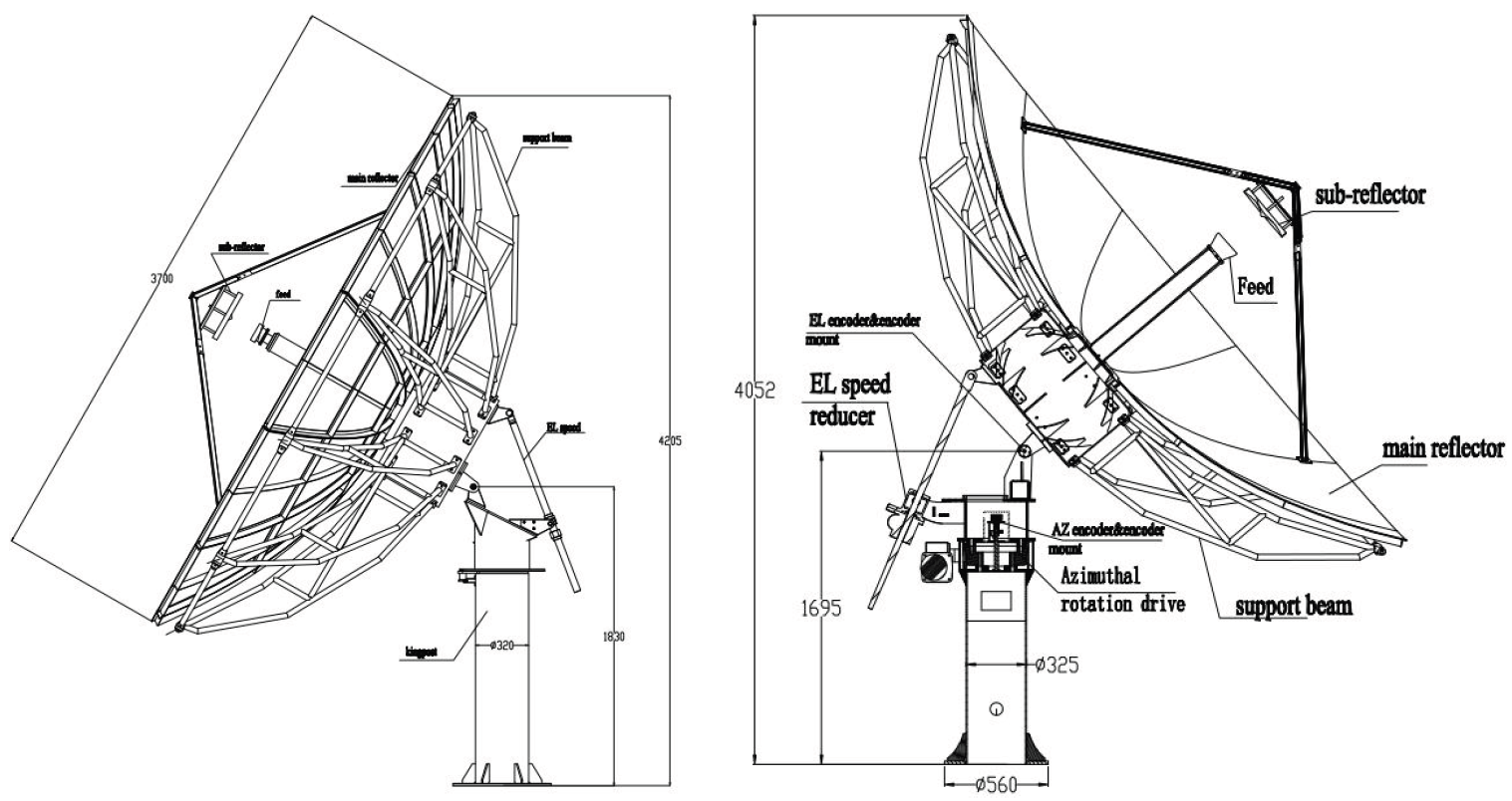

3.7m C-Band High Wind Earth Station Antenna
3.7m C-Band High Wind Earth Station Antenna
3.7m C-Band High Wind Earth Station Antenna
3.7m C-Band High Wind Earth Station Antenna

ES-100060

3.7m C-Band High Wind Earth Station Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Please note: Installation services are not included with this product.

KEY SPECIFICATIONS
antenna aperture 3.7m
antenna category Earth Station
band C-Band
Product Revision A
ANTENNA SPECIFICATIONS
90% Peaks under Following envelop 29 - 25 logθ(1°≤θ＜20°)
antenna drive mode Manual Structure Antenna
antenna type Ring Focus
cross polarization isolation ≤ 35 dB
number of ports 2 Ports
polarization Linear
sidelobe ≤-14 dB (First Sidelobe)
structure EL over AZ
RF SPECIFICATIONS
noise temperature elevation 10° 51.6K
noise temperature elevation 20° 45.6K
noise temperature elevation 40° 41.6K
port isolation Rx-Tx 85 dB
power handling 5kW
rx -3dB Beam width 1.49°
Rx feed insertion loss ≤0.3 dB
Rx frequency 3.625 - 4.2 GHz
rx gain 41.49 dBi @ 3.8 GHz
rx VSWR 1.25 : 1
tx -3dB Beam width 0.92°
Tx feed insertion loss ≤0.4 dB
Tx frequency 5.85 ‐ 6.425 GHz
tx gain 45.74 dBi @ 6.2 GHz
tx VSWR 1.25 : 1
INTERFACE SPECIFICATIONS
Rx interface CPR-229G
Tx interface CPR-137G
ENVIRONMENTAL SPECIFICATIONS
humidity 100%
ice load Icing 13mm: normal work
Icing 25mm: no damage
seismic capacity Horizontal: 0.3G
Vertical: 0.1G
temperature operational -30℃ to 50℃
windspeed operational Reinforced structure for 90 - 120 km/h operational wind
windspeed survival 216km/h
PHYSICAL SPECIFICATIONS
motion range AZ 0° - 360°
motion range EL 5° - 90°
motion range POL ±90°
surface accuracy RMS ≤0.5 mm
