2.4m Ka-Band Earth Station Antenna - Auto
2.4m Ka-Band Earth Station Antenna - Auto
2.4m Ka-Band Earth Station Antenna - Auto
2.4m Ka-Band Earth Station Antenna - Auto

ES-100063

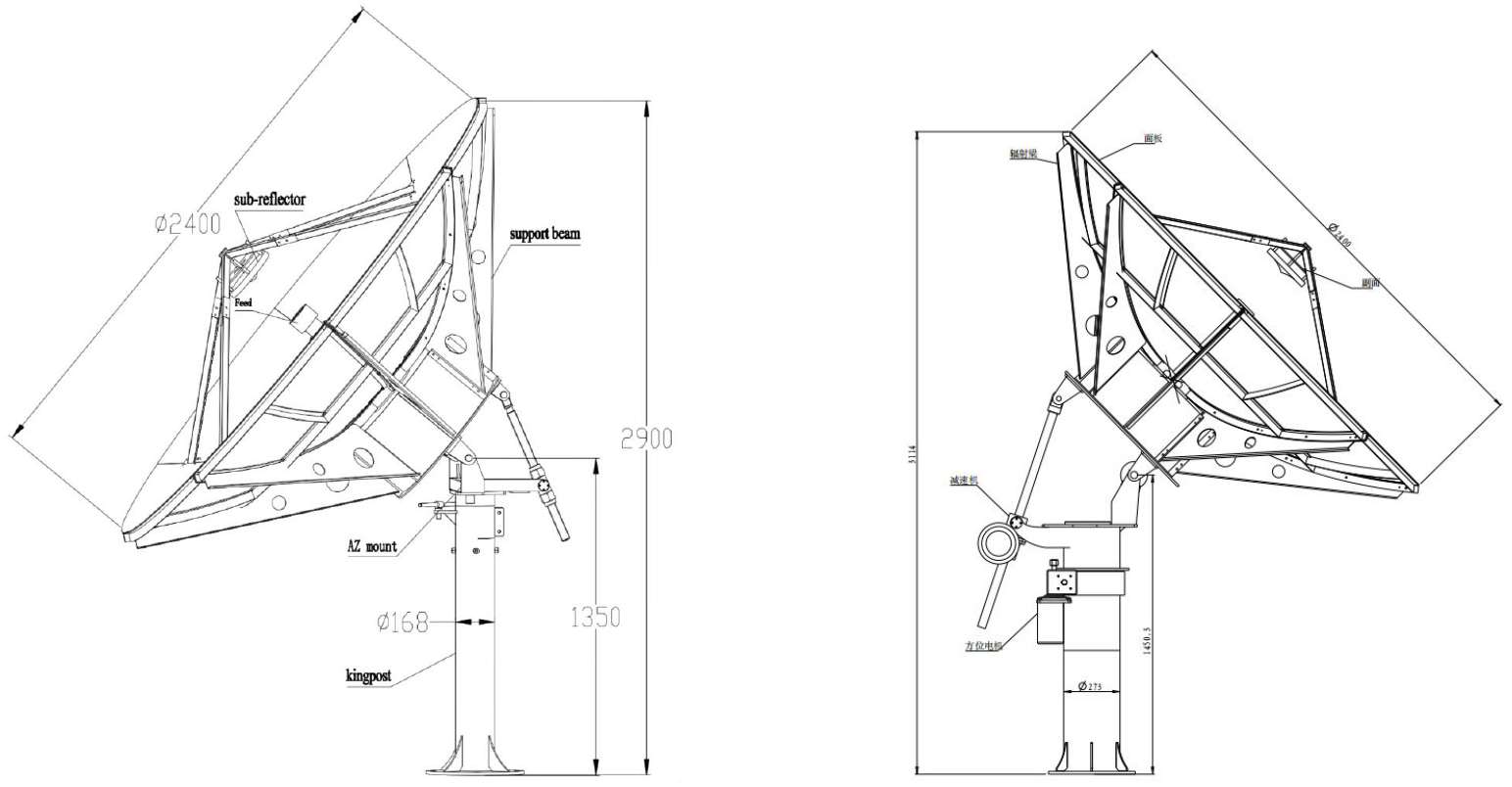

2.4m Ka-Band Earth Station Antenna - Auto

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 2.4m
antenna category Earth Station
band Ka-Band
Product Revision A
ANTENNA SPECIFICATIONS
90% Peaks under Following envelop 29 - 25 logθ(1°≤θ＜20°)
antenna drive mode Automatic Structure Antenna
antenna type Ring Focus/Center Feed
number of ports 4 Ports
polarization Circular
Rx axial ratio 4 ports ≤1 dB
sidelobe ≤-14 dB (First Sidelobe)
structure EL over AZ
Tx axial ratio 4 ports ≤1 dB
RF SPECIFICATIONS
noise temperature elevation 10° 124.5K
noise temperature elevation 20° 86K
noise temperature elevation 40° 60K
port isolation Rx-Tx 85 dB
power handling 2kW
rx -3dB Beam width 0.46°
Rx feed insertion loss 0.6 dB
Rx frequency 17.7 - 21.2 GHz
rx gain 51.4 dBi @ 19.95 GHz
tx -3dB Beam width 0.3°
Tx feed insertion loss 0.6 dB
Tx frequency 27.5 ‐ 31.0 GHz
tx gain 54.73 dBi @ 29.25 GHz
VSWR 1.35 : 1
INTERFACE SPECIFICATIONS
Rx interface WR-42
Tx interface WR-28
ENVIRONMENTAL SPECIFICATIONS
humidity 100%
ice load Icing 13mm: normal work
Icing 25mm: no damage
seismic capacity Horizontal: 0.3G
Vertical: 0.1G
temperature operational -30℃ to 50℃
windspeed operational 72km/h
windspeed survival 216km/h
PHYSICAL SPECIFICATIONS
motion range AZ 5° - 355°
motion range EL 5° - 90°
surface accuracy RMS ≤0.3 mm
