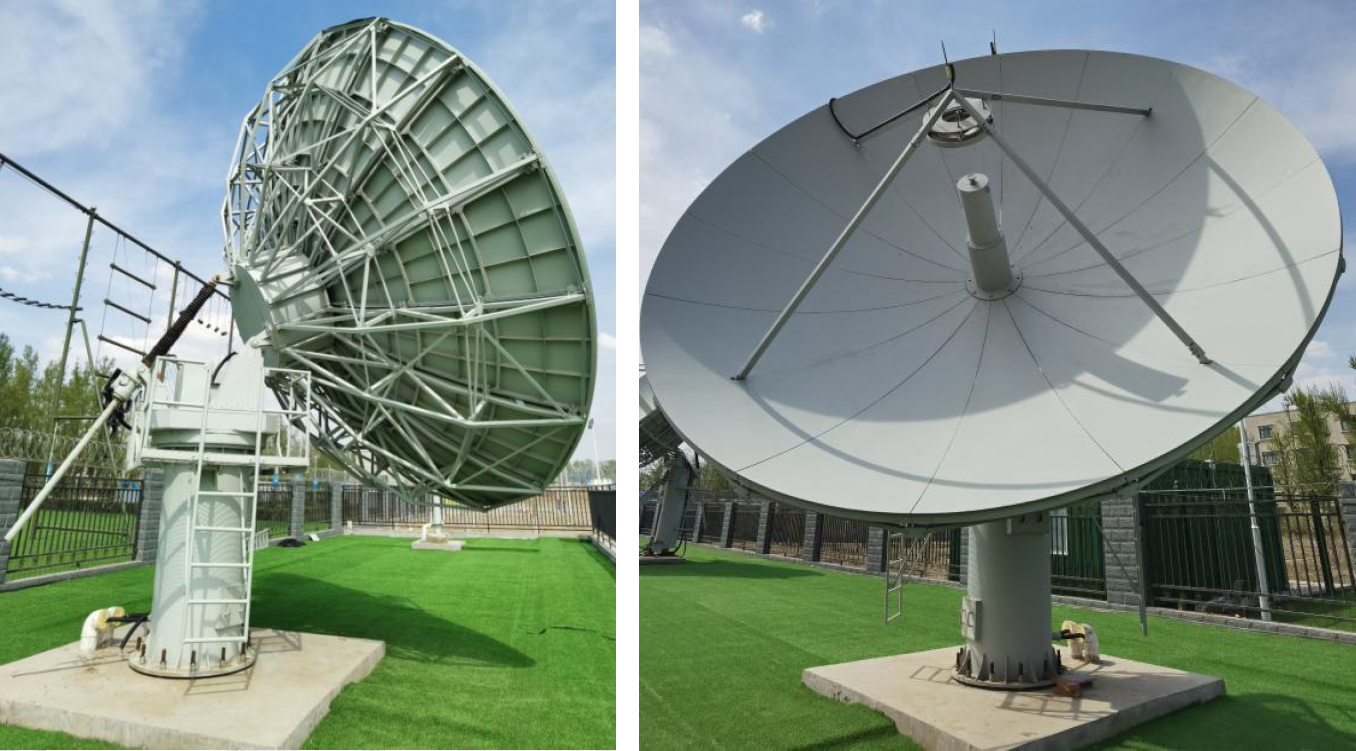

ANCHOR 6.2m Ka-Band Earth Station Antenna - Rx Only
ANCHOR 6.2m Ka-Band Earth Station Antenna - Rx Only

ES-100064

ANCHOR 6.2m Ka-Band Earth Station Antenna - Rx Only

Anchor

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Please note: Installation services are not included with this product.

KEY SPECIFICATIONS
acquisition and tracking Automatic
antenna aperture 6.2 m
antenna category Earth Station
band Ka-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna drive mode 3-axis motorized structure
basic function Manual control, position preset, position preset, scan, track, collection, remote control, etc.
control mode Manual, Automatic (adjustable speed)
control system Step tracking
number of ports 2-ports
polarization Circular/Linear (Motorized Switchable)
position control resolution 0.001°
position display resolution 0.001°
preset satellite 50 satellites
Rx axial ratio 2 ports ≤1.5 dB
sidelobe ≤-14dB
RF SPECIFICATIONS
noise temperature elevation 10° 126.3 K
noise temperature elevation 20° 87.5 K
noise temperature elevation 50° 61.8 K
rx -3dB Beam width 0.18°
Rx feed insertion loss ≤0.5 dB
Rx frequency 17.2 - 22.2 GHz
rx gain ≥59.95+20lg(f/19.0GHz)
Rx VSWR 1.35 : 1
ELECTRICAL SPECIFICATIONS
power supply ≤5 kW, 220V±10%, 50/60Hz, 380V±10%, 50/60Hz
INTERFACE SPECIFICATIONS
Rx interface WR-42
ENVIRONMENTAL SPECIFICATIONS
humidity 100%
temperature operational -30°C to +70°C
weatherproofing With dust-proof, waterproof, mildew-proof, anti-corrosion and other measures
windspeed operational 72 km/h
windspeed survival 120 km/h
PHYSICAL SPECIFICATIONS

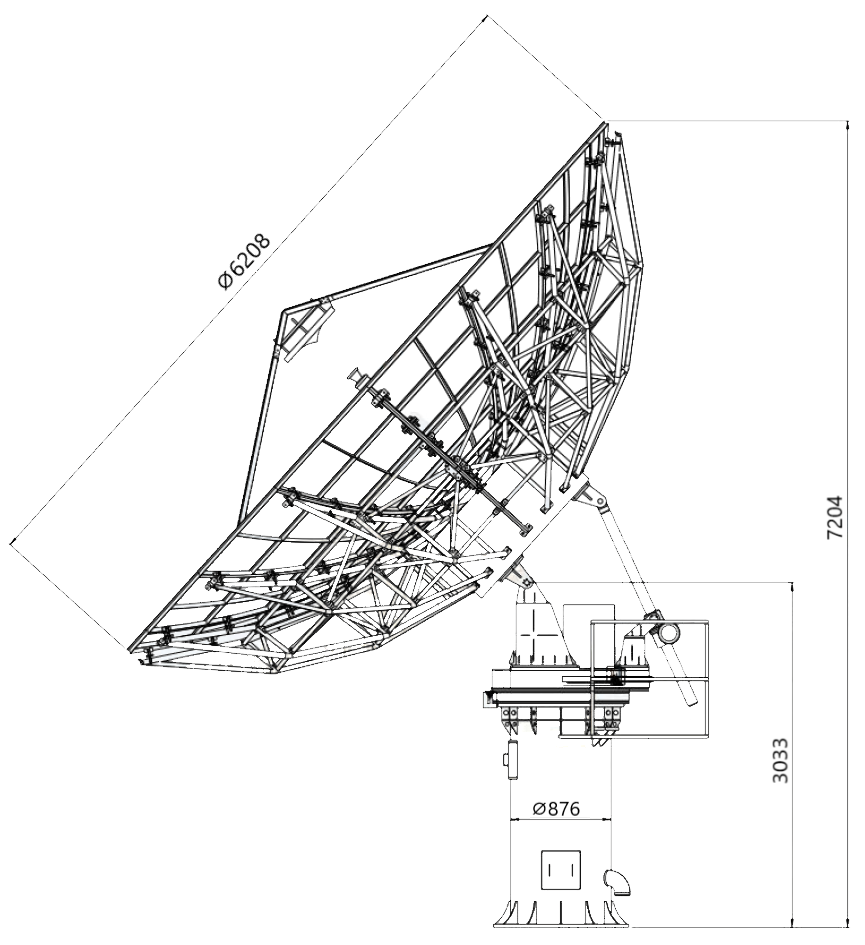

antenna description Main reflector includes 16 pieces segmented panels, antenna overall weight is around 6T
antenna type Turntable (AZ: dual motors, EL: jack screw)
motion range AZ 0° - 350° continuous
motion range EL 5° - 90°
motion range POL ±90°
reflector material Aluminum
structure LMC / FMC
surface accuracy RMS ≤0.3 mm
