ANCHOR 2.4m Ku-Band Earth Station Antenna
ANCHOR 2.4m Ku-Band Earth Station Antenna
ANCHOR 2.4m Ku-Band Earth Station Antenna
ANCHOR 2.4m Ku-Band Earth Station Antenna

ES-100066

ANCHOR 2.4m Ku-Band Earth Station Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost.
For Manual Structure Antennas, a control system is not required.

Please note: Installation services are not included with this product.

KEY SPECIFICATIONS

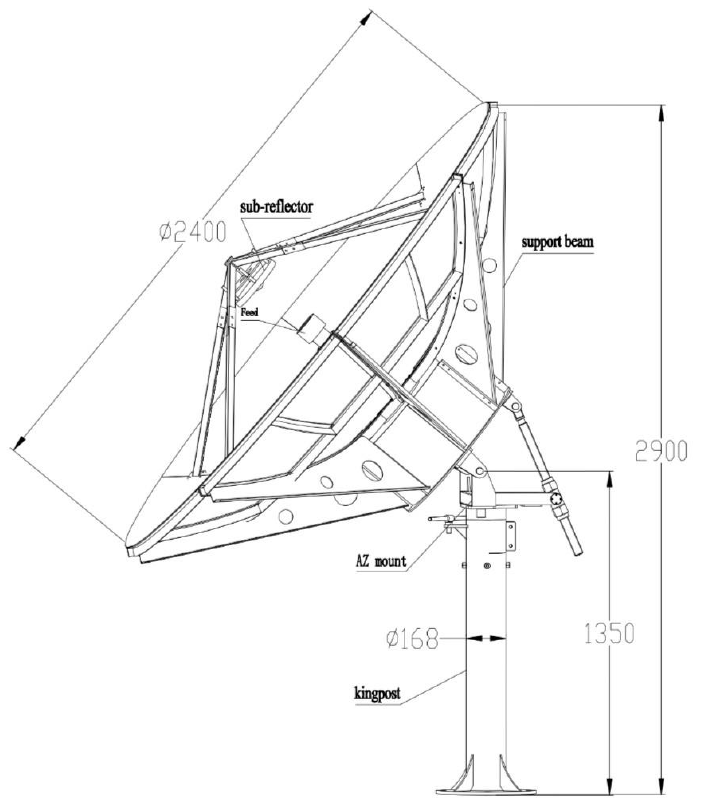

antenna aperture 2.4 m
antenna category Earth Station
band Ka-Band
Product Revision A
ANTENNA SPECIFICATIONS
90% peaks under following envelope 29 - 25 logθ(1°≤θ＜20°)
antenna drive mode 2-axis motorized structure
antenna type Ring Focus
number of ports 2-ports
polarization Circular
sidelobe ≤-14dB (First Sidelobe)
RF SPECIFICATIONS
noise temperature elevation 10° 124.5 K
noise temperature elevation 20° 86 K
noise temperature elevation 40° 60 K
port isolation Rx-Tx 85 dB
rx -3dB beamwidth 0.46°
Rx axial ratio 2 ports ≤1.5 dB
Rx feed insertion loss 0.6 dB
Rx frequency 17.7 - 21.2 GHz
rx gain 51.7 @ 19.95 GHz
Rx VSWR 1.35 : 1
tx -3dB beamwidth 0.3°
Tx axial ratio 2 ports ≤1.5 dB
Tx feed insertion loss 0.6 dB
Tx frequency 27.5 - 31 GHz
tx gain 55.1 @ 29.25GHz
Tx VSWR 1.35 : 1
ELECTRICAL SPECIFICATIONS
power capacity 2 KW
INTERFACE SPECIFICATIONS
Rx interface WR-42
Tx interface WR-28
ENVIRONMENTAL SPECIFICATIONS
humidity 100%
ice load Icing 13mm: normal work; Icing 25mm: no damage
lightning protection Lightning Protection Kit Included
seismic capacity horizontal 0.3 G
seismic capacity vertical 0.1 G
temperature operational -30°C to +50°C
windspeed operational 72 km/h
windspeed survival 216 km/h
PHYSICAL SPECIFICATIONS
loading capacity 8 sets for one 20 ft container, 16 sets for one 40 ft container
motion range AZ 5° - 350° (continuous)
motion range EL 5° - 90°
product package volume 2 packages, dimension: 2.5 CBM
RMS ≤0.3 mm
structure EL over AZ
