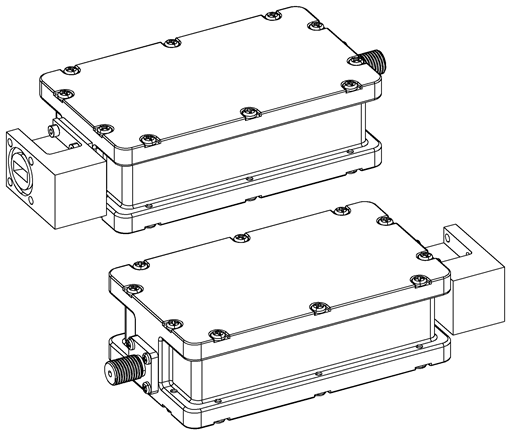

LNB-100187

Ka-Band Single Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 21.3 - 26.3 GHz
LO frequency 1 20.00 GHz
LO type PLL
noise figure max 7.0 dB
number of onboard LOs Single-Band
output frequency band 1 1300 - 6300 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ±8.0 dB max.
gain ripple (at per 40MHz) ±1.5 dB max.
gain variation over temperature ±4.0 dB max.
image rejection 40 dBc min.
input VSWR 1.5 : 1 max. (with waveguide isolator)
LO leakage -60 dBm max. at input
output P1dB + 5 dBm min.
output VSWR 4.0 : 1 max.
spurious in band -50 dBm min. at no signal
spurious out of band -50 dBm min. at no signal
ELECTRICAL SPECIFICATIONS
current consumption 800 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector SMA-Connector
isolator With Isolator
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

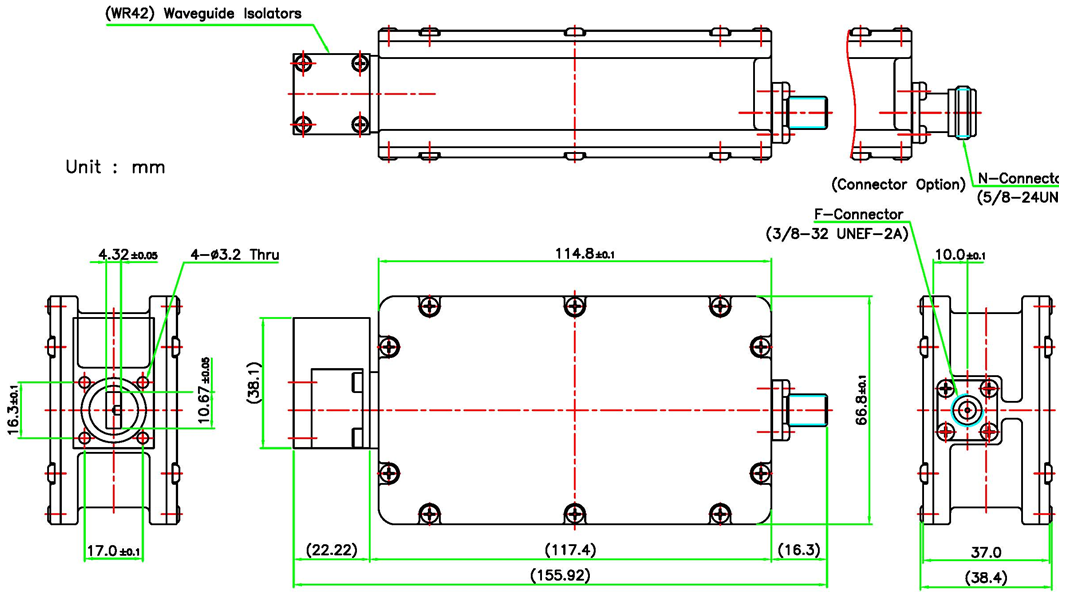

PHYSICAL SPECIFICATIONS
product height 38.4 mm
product length 139.6 mm
product weight 0.56 kg
product width 66.8 mm
