Ku-Band Cross Guide Coupler
Ku-Band Cross Guide Coupler
Ku-Band Cross Guide Coupler
Ku-Band Cross Guide Coupler

ACC-100936

Ku-Band Cross Guide Coupler

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
frequency 10.70 - 12.75 GHz
product family Coupler
waveguide flange WR-75
Product Revision A
RF SPECIFICATIONS
Gain Flatness (over 1000MHz) ± 0.4 dB
Gain Flatness (over 2000MHz) ± 0.7 dB
Gain Flatness (over 500MHz) ± 0.2 dB
Gain Flatness (over full band) ± 1.2 dB
sensitivity ± 0.2 dB slope max.
variation ± 0.5 dB max.
VSWR 1.06 : 1
ELECTRICAL SPECIFICATIONS
coupling 20 dB Forward
power handling 2 kW CW
INTERFACE SPECIFICATIONS
coupling connector N-Connector
RF input Flange Cover Grooved / 6-32 Tapped Holes
RF output Flange Cover Flat / Clear Holes 0.144 / 0.147

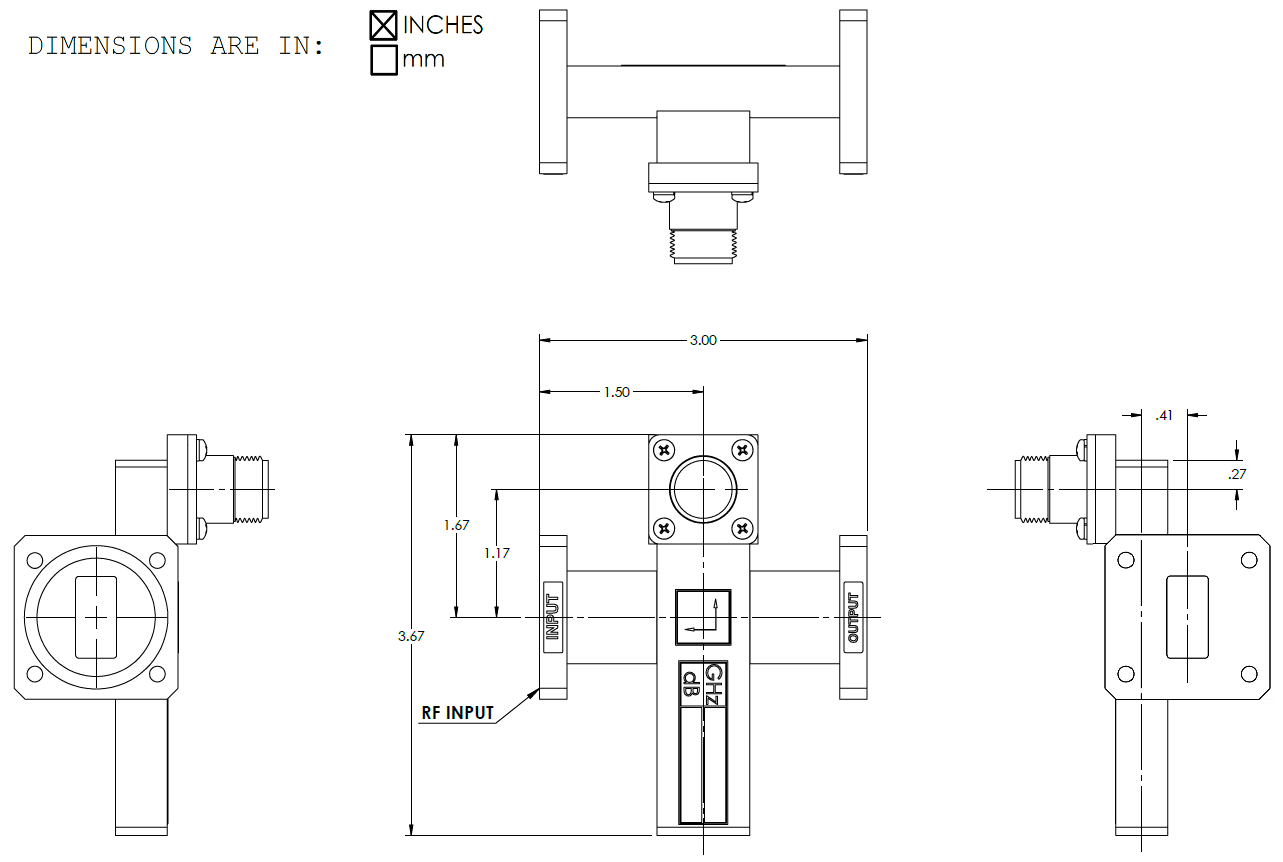

PHYSICAL SPECIFICATIONS
color White
product height 58 mm
product length 93 mm
product width 76 mm
