ACC-100913

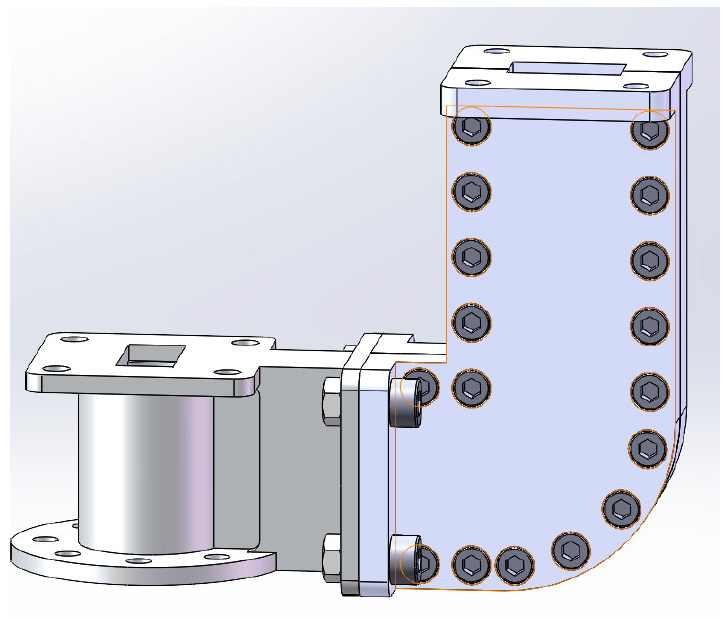

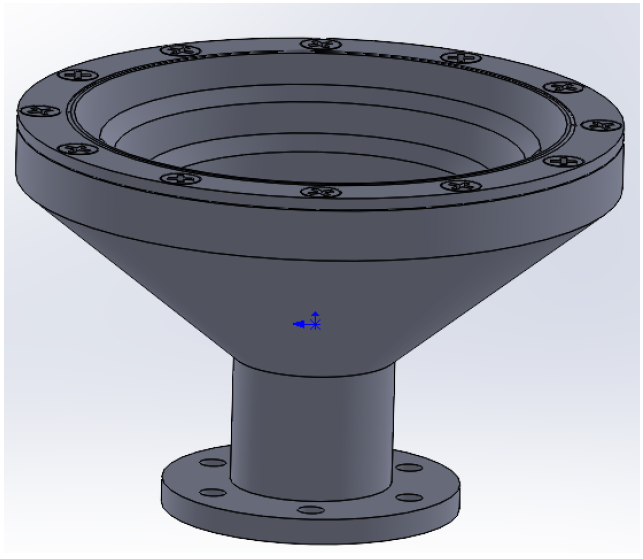

Ku-Band feed Assembly w/ OMT
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| color | White |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| cross polarization isolation | OMT + Waveguide (Rx/Tx): 35 dB / 35 dB Feed: >50 dB |
| polarization | Linear |
| RF SPECIFICATIONS | |
|---|---|
| 3dB beamwidth | 34° (H and E plane) |
| gain | 14.5 dBi |
| Rx frequency | 10.70 - 12.75 GHz |
| Rx insertion loss | ≤0.3 dB |
| Rx interface | WR-75 Flat |
| Tx frequency | 13.75 - 14.50 GHz |
| Tx insertion loss | ≤0.2 dB |
| Tx interface | WR-75 Flat |
| tx rx isolation port isolation | 80 dB min. |
| VSWR | OMT + Waveguide (Rx/Tx): 1.3 : 1 / 1.25 : 1 Feed: 1.25 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power handling | OMT + Waveguide: 1 kW Feed: 2 kW |
| INTERFACE SPECIFICATIONS | |
|---|---|
| waveguide flange | Circular Internal Diameter: 19mm |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| material | Aluminum |
