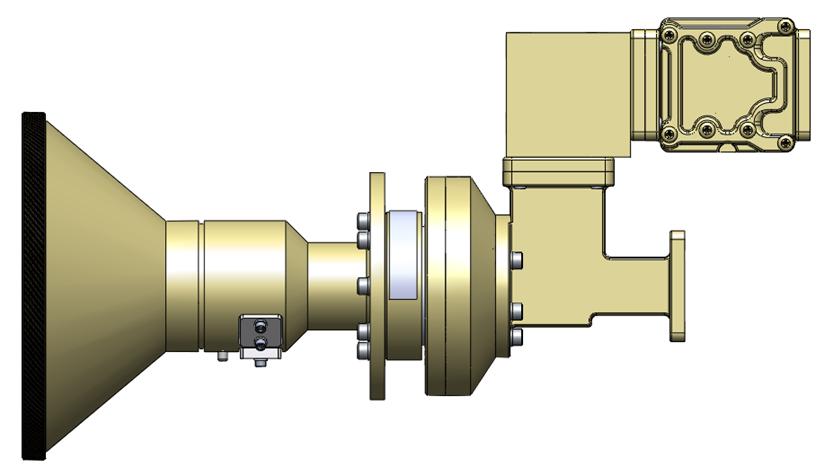

Name: Ku-Band feed Assembly w/ OMT and TRF
Brand: Norsat International Inc.
SKU: ACC-100894
Availability: InStock

ACC-100894

Ku-Band feed Assembly w/ OMT and TRF

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

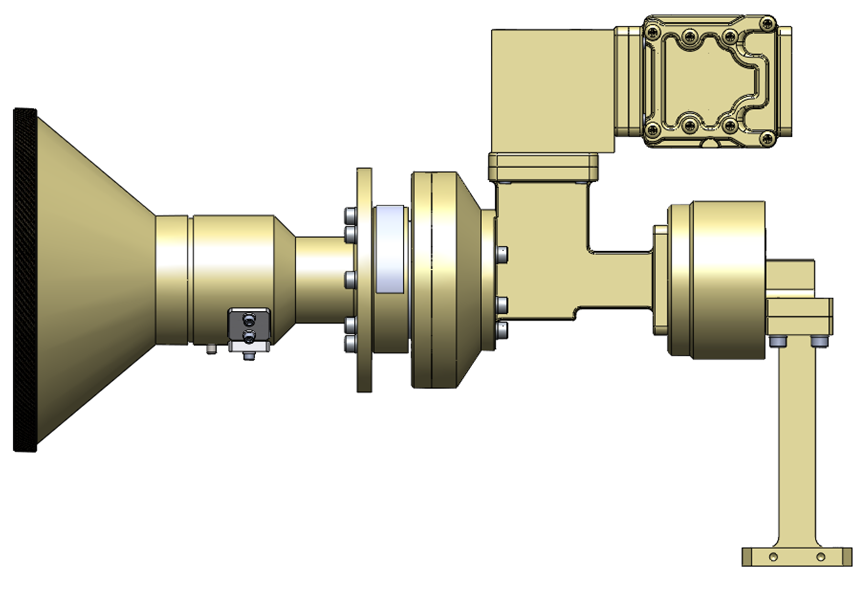

[{"id":51783874675055,"title":"Excludes Rear Rotary Joint","option1":"Excludes Rear Rotary Joint","option2":null,"option3":null,"sku":"ACC-100894","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ku-Band feed Assembly w\/ OMT and TRF - Excludes Rear Rotary Joint","public_title":"Excludes Rear Rotary Joint","options":["Excludes Rear Rotary Joint"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51783874707823,"title":"Includes Rear Rotary Joint","option1":"Includes Rear Rotary Joint","option2":null,"option3":null,"sku":"ACC-100895","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ku-Band feed Assembly w\/ OMT and TRF - Includes Rear Rotary Joint","public_title":"Includes Rear Rotary Joint","options":["Includes Rear Rotary Joint"],"price":0,"weight":0,"compare_at_price":0,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
Product Revision	A

RF SPECIFICATIONS
f/D ratio	0.8 f/D
insertion loss	OMT: 0.4 dB max.
Rx frequency	10.75 - 12.75 GHz
Rx interface	WR-75 Flat
rx tx isolation port isolation	40 dB min.
Rx VSWR	OMT Receive Port: 1.25 : 1 max.
Tx frequency	13.75 - 14.50 GHz
Tx interface	WR-75 Flat
tx rx isolation port isolation	80 dB min.
Tx VSWR	OMT Transmit Port: 1.25 : 1 max.

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40°C to +60°C

PHYSICAL SPECIFICATIONS

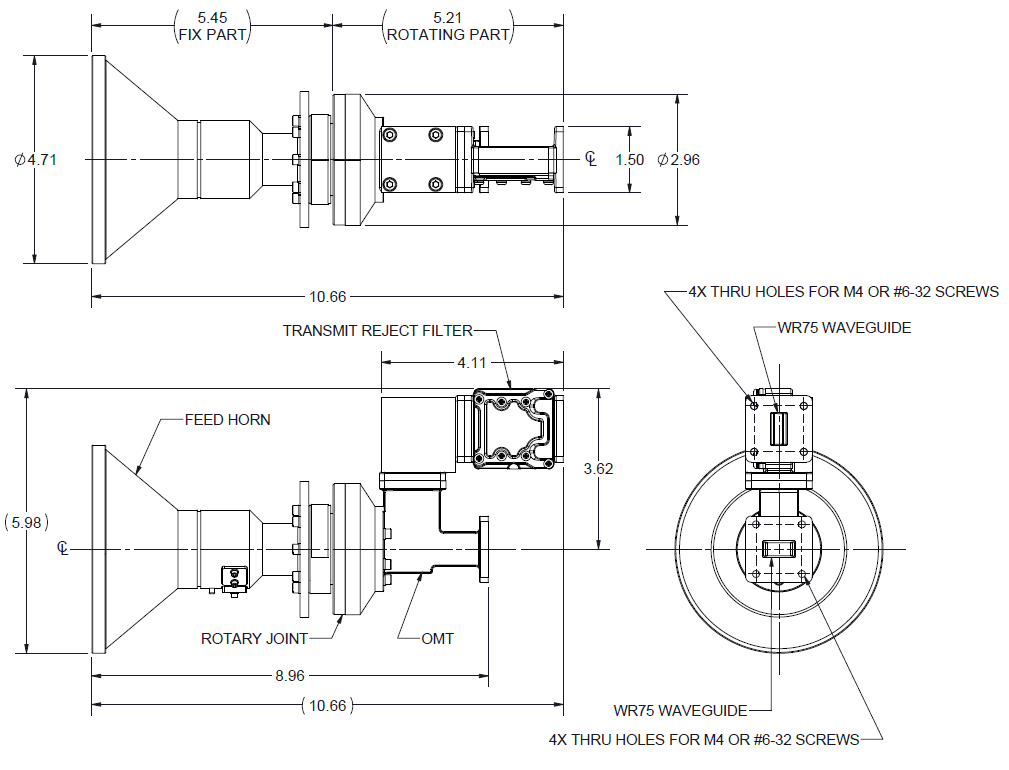

product dimensions (LxWxH)	10.66 inch x 4.71 inch x 5.98 inch

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517700000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	-
Unit Package Dimensions	-
Unit Package Weight	-
Total Aluminium Content	-
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
