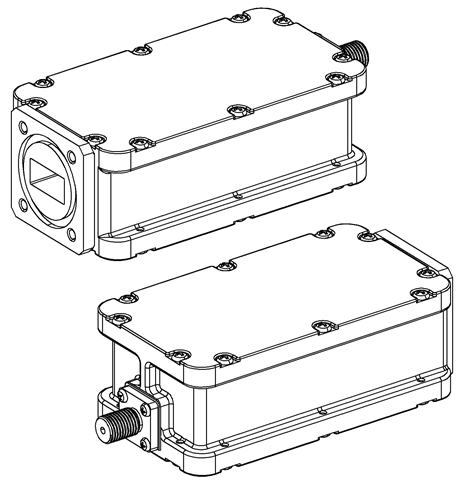

LNB-100186

Ku-Band Single Band EXT REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 11.45 - 11.70 GHz
LO frequency 1 9.75 GHz
LO type EXT
noise figure max 0.8 dB
number of onboard LOs Single-Band
output frequency band 1 1700 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) 4 dB p-p max.
gain ripple (at per 36MHz) 1 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 100kHz offset max Depends on External Reference
phase noise 10kHz offset max Depends on External Reference
phase noise 1kHz offset max Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption 350 mA
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

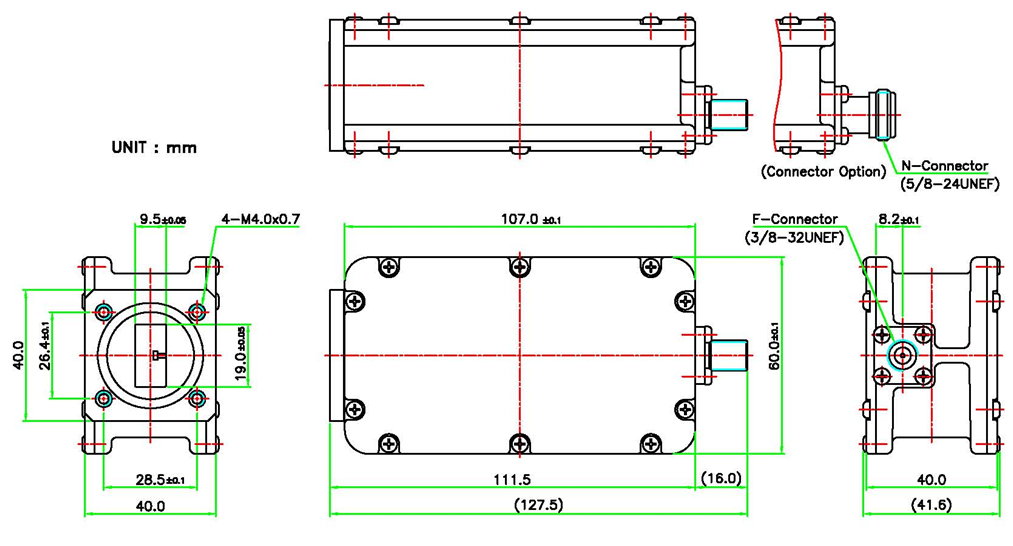

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 111.5 mm
product weight 0.38 kg
product width 60 mm
