LNB-100181

Ku-Band Single Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 12.25 - 12.75 GHz
LO frequency 1 11.30 GHz
LO type PLL
noise figure max 0.8 dB
noise figure typ 0.7 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision D
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 36MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.5 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 800 mA max (warm up)
500 mA max (running)
power requirements +12 to +24V DC
warm up time 5 minutes
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

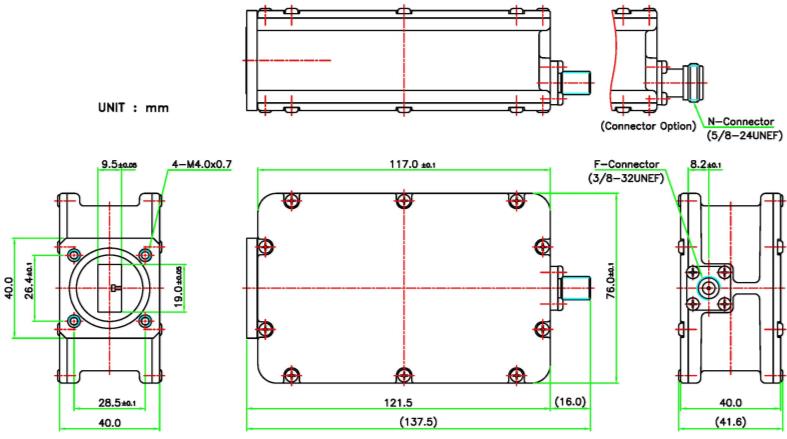

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 137.5 mm
product weight 0.450 kg
product width 76 mm
