LA118N-NF
Line Attenuator
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | L-Band |
| input frequency band 1 | 950 - 2150 MHz |
| signal pass through | 10 MHz reference L-Band 22 kHz tone DC Voltage |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| attenuation | 18 dB |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 3A between 0 to 48V |
| INTERFACE SPECIFICATIONS | |
|---|---|

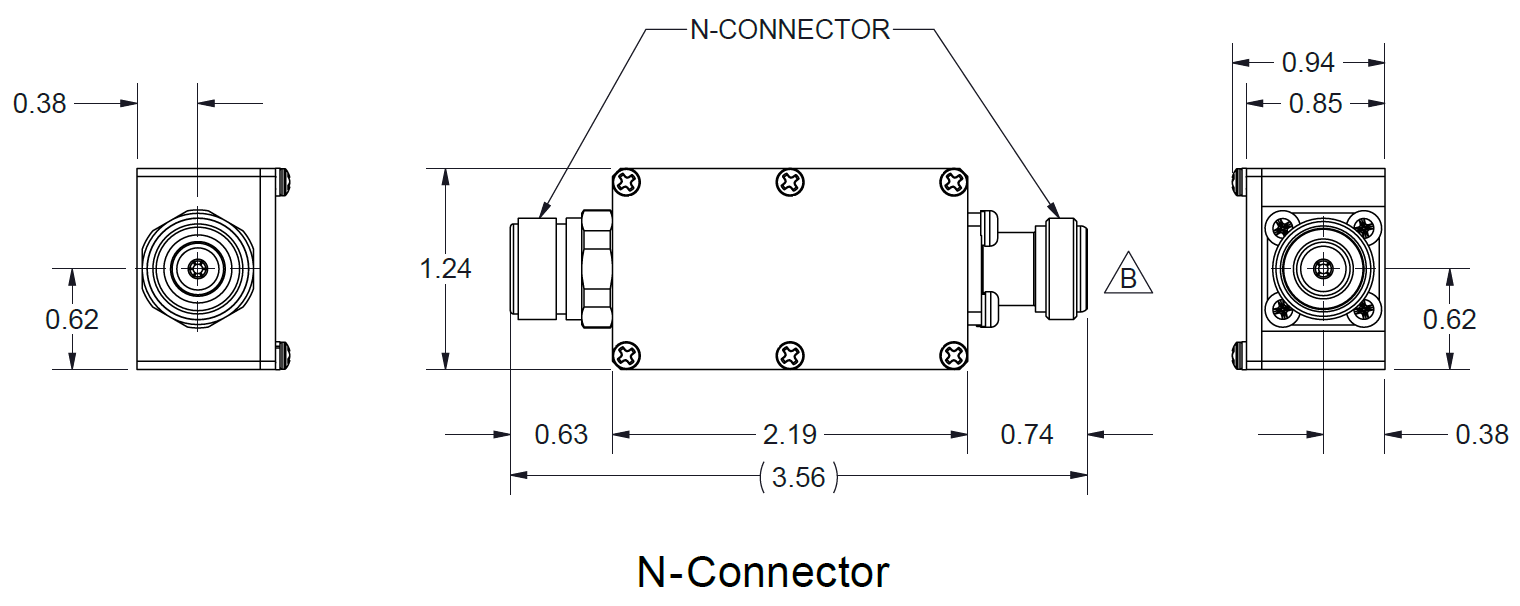

| connector 1 | N-Connector (Male) |
| connector 2 | N-Connector (Female) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| material | Aluminum |
| product height | 25 mm |
| product length | 90 mm |
| product weight | 0.14 kg |
| product width | 35 mm |
| ACCESSORIES | |
|---|---|
| attenuation options | 18 dB |
