Single-Band Ka-Band LNA LNA-100095
Single-Band Ka-Band LNA LNA-100095
Single-Band Ka-Band LNA LNA-100095
Single-Band Ka-Band LNA LNA-100095

LNA-100095

Single-Band Ka-Band LNA LNA-100095

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.7 - 21.2 GHz
noise figure 1.7 dB
product family LNA
Product Revision C
RF SPECIFICATIONS
conversion gain max 62 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness ≤ 6 dB p-p max. (Over Tempeature)
gain ripple (at per 40MHz) ≤ 1 dB p-p max.
input VSWR 1.5 : 1 max. (Includes a Waveguide Isolator)
output P1dB + 10 dBm min.
output VSWR 2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
input power MS3112E10-6P
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
input W/G flange WR-42
output connector SMA-Connector
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +65°C

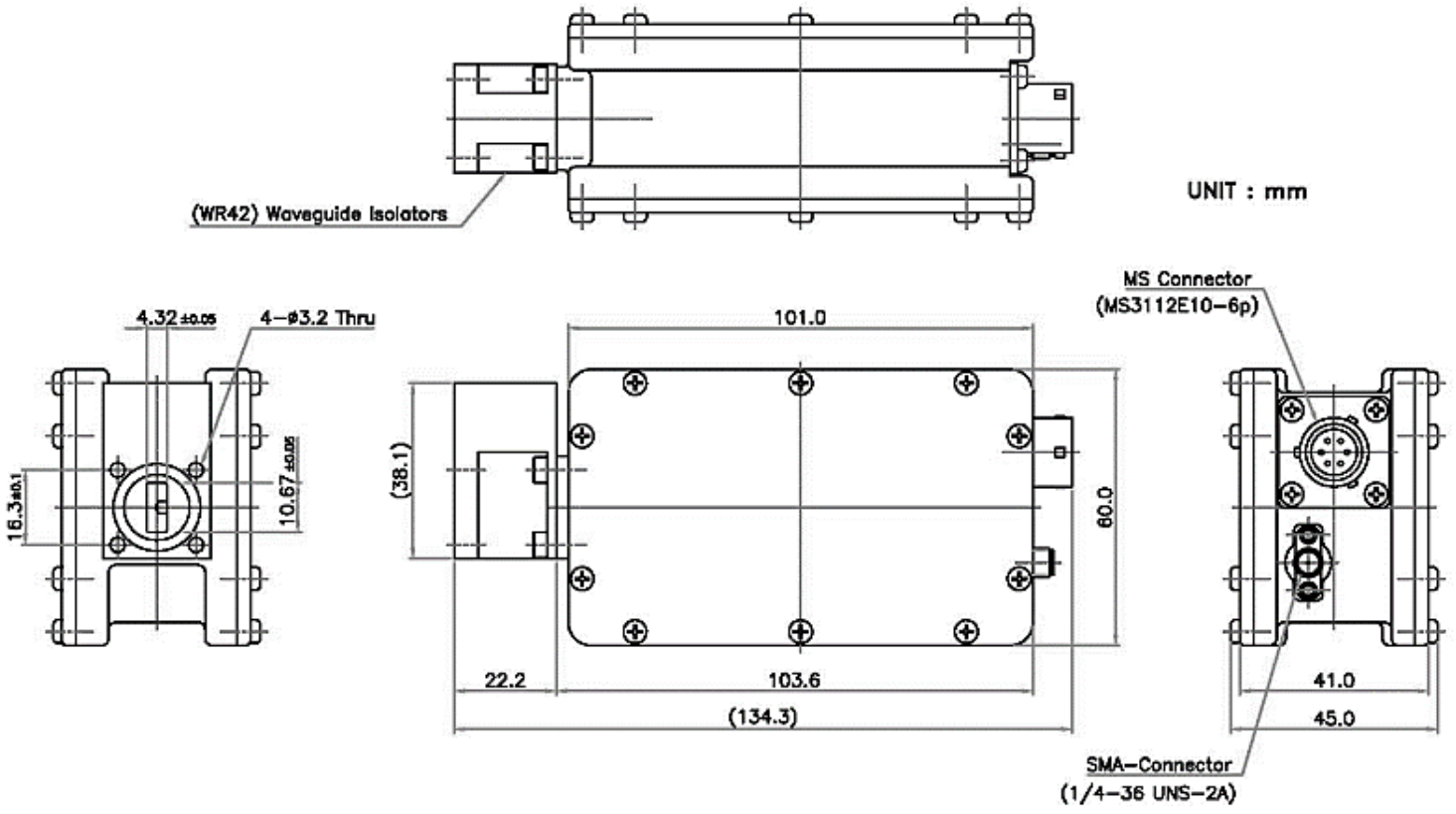

PHYSICAL SPECIFICATIONS
product height 45.0 mm
product length 103.6 mm
product weight 0.45 kg
product width 60 mm
