LNA-100099

Single-Band Ka-Band LNA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.7 - 21.2 GHz
noise figure max 1.8 dB
Product Revision D
RF SPECIFICATIONS
conversion gain max 60 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness (Over Full Band) ± 2.0 dB max.
gain ripple (at per 125MHz) ± 0.75 dB max.
gain ripple (at per 20MHz) ± 0.3 dB max.
gain ripple (at per 2GHz) ± 1.5 dB max.
input VSWR 3.0 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.

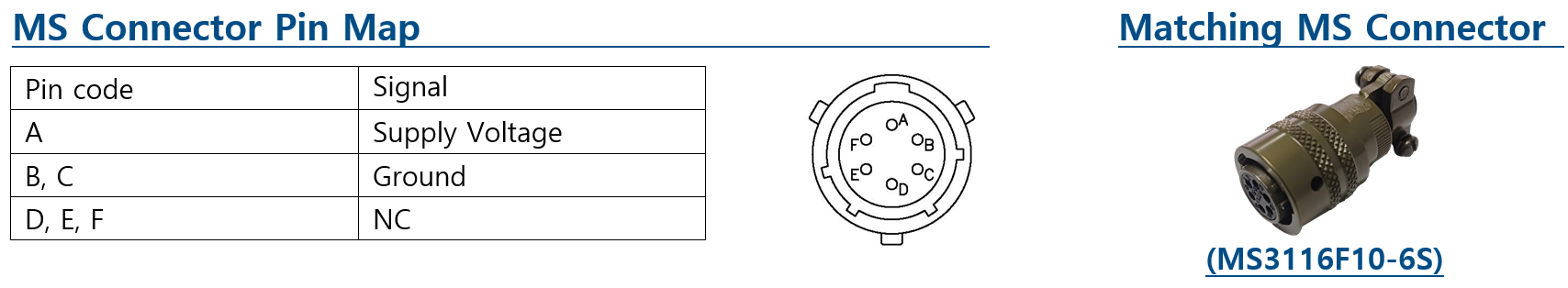

input power MS3112E10-6P
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
input connector WR-42 waveguide grooved
output connector SMA-Connector
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C

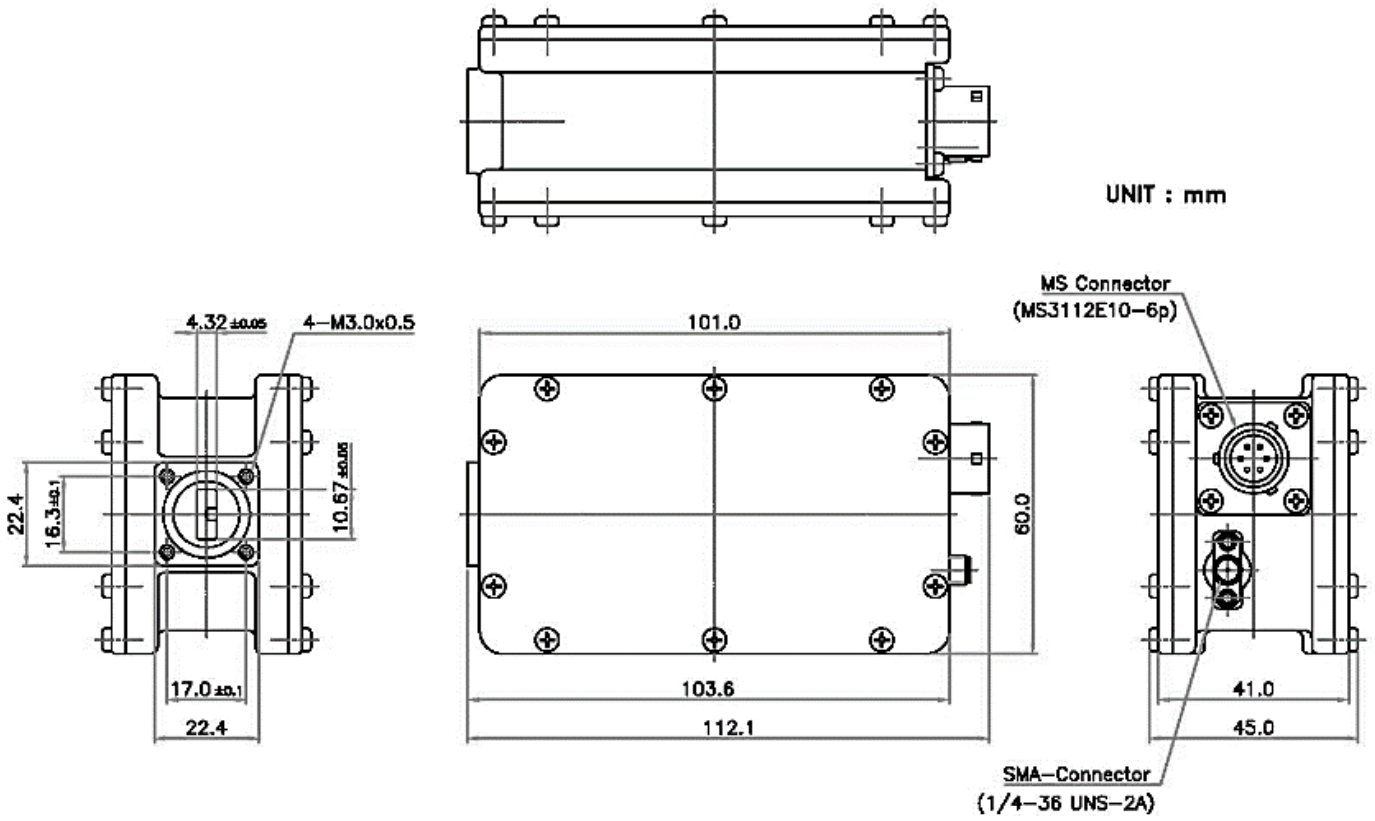

PHYSICAL SPECIFICATIONS
product height 45.0 mm
product length 103.6 mm
product weight 0.45 kg
product width 60.0 mm
